First things first: check your servo motor’s power supply. This is a top culprit behind most servo motor troubleshooting headaches.
Use a multimeter to measure voltage levels at the motor terminals. Make sure the voltage matches the motor’s rated specs. Fluctuations or drops can cause erratic behavior or shutdowns.
Monitor voltage stability during operation. Voltage dips under load suggest weak power sources or bad wiring.
Inspect wiring closely. Look for loose connections, frayed cables, or wrong gauge wires. Incorrect wiring often leads to undervoltage or noise issues.
Check if your power supply has enough capacity. Servo motors demand current spikes—your supply must handle peak loads, not just the average.
If you spot the servo driver alarm code related to power faults, power supply problems are your prime suspect.
Quick tip: After fixing power supply issues, power-cycle the system and observe if the motor runs smoothly. A stable voltage supply often cures a host of servo motor problems right off the bat.
Loose servo motor connections are a common source of problems. Start by closely examining all cables, plugs, and terminals for signs of wear, corrosion, or looseness. Pay special attention to the encoder and motor power connections—these are critical for accurate feedback and stable operation.
Also, listen for unusual vibration or noise, which often hints at a bad connection or loose mounting. Tighten any loose terminals and replace damaged cables to avoid intermittent faults or servo driver alarm codes. Regular inspections can keep your system running smoothly and prevent unexpected downtime. For detailed testing tips, you might find this guide on how to test a servo motor helpful.
Overheating is a common servo motor problem that can cause serious damage if not addressed quickly. Start by feeling the motor housing temperature using a thermal gun or infrared thermometer. High temperatures often result from high-duty cycles or poor ventilation around the motor.
To solve overheating issues:
Improve cooling by adding fans or better airflow around the motor.
Reduce the motor load if it’s working too hard for long periods.
Regularly clean dust and debris buildup, which can block vents and trap heat.
Keeping your motor cool not only prevents damage but also improves performance and extends its lifespan. For reliable motors designed to handle tough jobs, check out quality options like the sturdy Yaskawa motors engineered for efficient cooling and durability.
A common source of servo motor issues is the feedback system, especially the encoder signals. Start by inspecting the encoder wiring and connections for any loose or damaged cables using a multimeter. An oscilloscope can help you check the signal quality and detect noise or interruptions. It’s also useful to run diagnostic software that monitors position feedback in real time, which can reveal discrepancies or faults in the encoder data. If you find any faults, tighten or replace the cables and recalibrate the system to ensure accurate position control. For reliable encoder solutions, consider checking out high-quality products like the E82EV751K4C servo motor encoder designed for precise feedback in demanding setups.

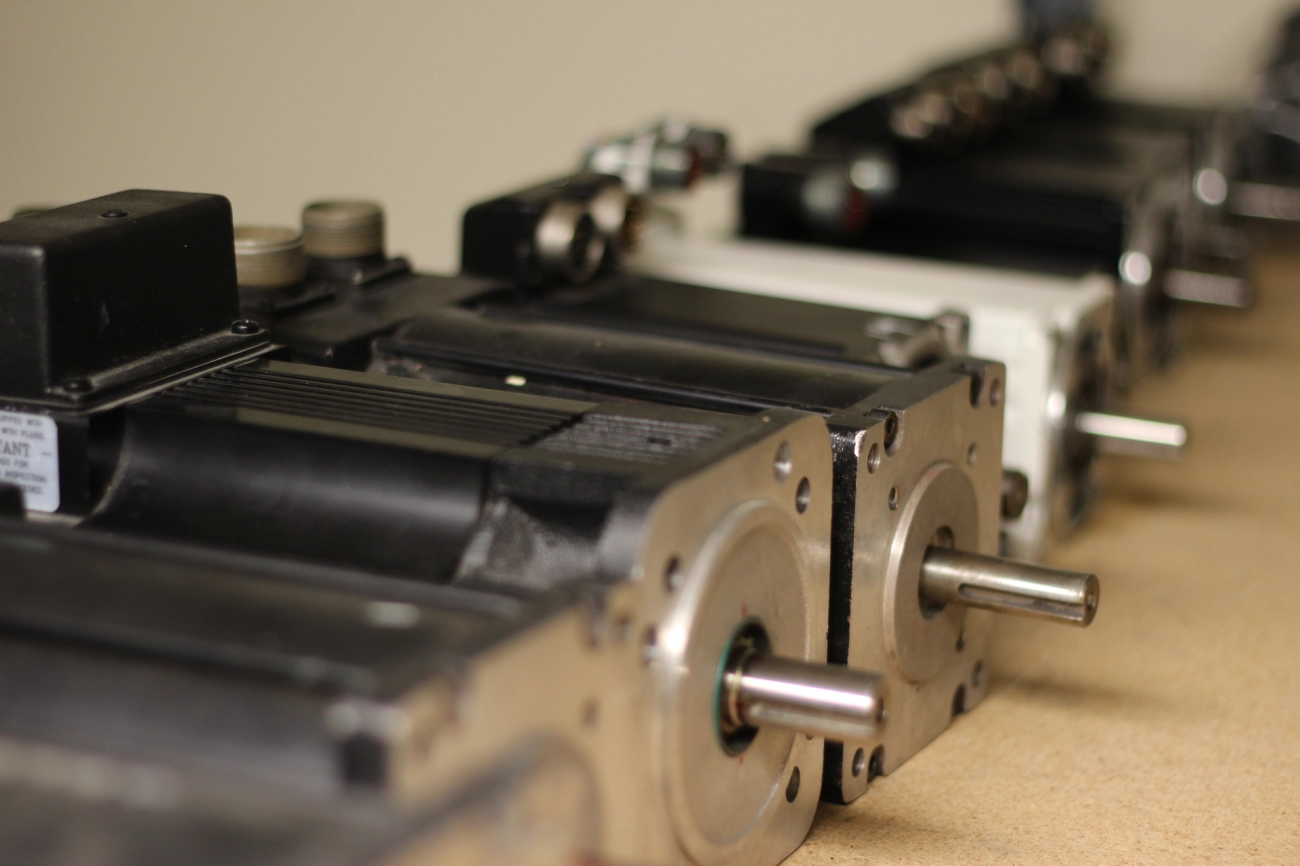

When troubleshooting servo motor problems, double-check the CNC servo controller settings to avoid common errors. Incorrect PID tuning, motor settings, or encoder parameters can cause servo position drift, vibration issues, or driver alarm codes.
Key checks:
| Parameter | What to Verify | Why It Matters |
| PID Values | Confirm PID gains match specs | Prevents overshoot and instability |
| Encoder Tuning | Validate encoder signal calibration | Ensures accurate position feedback |
| Motor Settings | Match motor type and power ratings | Avoids mismatches causing alarms |
| Firmware/Software | Ensure controller firmware is updated | Fixes bugs and improves stability |
Always reference the original backup specs or manufacturer guidelines when resetting parameters, especially after servo motor replacement or firmware updates. This avoids errors that cause servo motor position drift or trigger thermal overload protection.
For detailed guidance on servo motor controllers and parameter tuning, check out this application and installation of servo motor controllers. It’s a reliable resource for pinpointing settings and getting your system back on track.

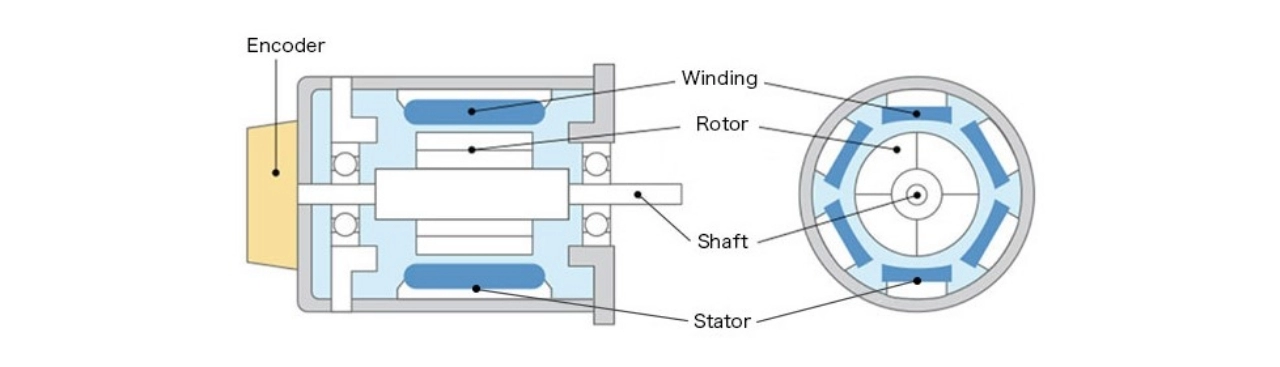

One common cause of servo motor problems is mechanical binding or misalignment. To check this, manually rotate the motor shaft and feel for any unusual resistance or stiffness. Pay attention if thermal alarms have been triggered, as overheating can be a sign of mechanical issues.
Inspect key components like couplings, belts, and bearings for signs of wear or damage. Worn parts can cause friction that leads to binding or uneven movement. If you find issues, realign the motor and shafts carefully, apply proper lubrication, or replace any worn components. Keeping these parts in good shape helps avoid unnecessary strain and improves overall servo motor performance.
Excessive load is a common cause of servo motor problems that can lead to overheating, premature wear, or unexpected shutdowns. Start by comparing the ambient temperature and the motor’s operating temperature against the motor’s torque rating. If the motor is running hotter than specified, it might be overloaded.
Watch out for signs like mechanical crashes, sudden changes in the tool or material being processed, or unusual noises. These often increase the load beyond what the servo motor can handle safely.
To fix this, try reducing feed rates or operation speed to lower the stress on the motor. If that’s not enough, consider upgrading key components like the motor or drive to a higher torque model that matches your application demands. For high-reliability requirements, replacing or refurbishing critical parts can extend your machine’s life—check out options for repairing or replacing obsolete parts tailored for CNC servo systems.
Environmental conditions can seriously impact your servo motor’s encoder performance. Dust, moisture, high humidity, and extreme temperatures often cause servo encoder feedback errors, leading to inaccurate position signals or even system faults.
To protect your encoder:
Install protective enclosures that shield against dust and water ingress.
Use encoders rated for harsh environments, especially if your setup involves exposure to dirt or temperature swings.
Perform regular cleaning and maintenance to prevent buildup that can interfere with signal quality.
Taking these steps helps maintain reliable feedback and reduces servo driver alarm codes linked to environmental issues. For robust encoder options designed to handle tough conditions, check out the SGMRV series servo motors known for their durable design and environmental protection.
