When selecting servo motors, it helps to start by understanding their types and core principles. A servo motor is a rotary actuator that provides precise control of angular or linear position, velocity, and acceleration. At the heart of all servos is a feedback device—usually a potentiometer, encoder, or resolver—that continuously monitors position and feeds data back to the controller for accurate motion.
Widely used in DIY projects, robotics, and model aircraft, these low-cost servos offer positional control with built-in gearing and small DC motors. The SG90 is lightweight with moderate torque, while the MG996R provides higher torque and metal gears for durability.
These are designed for heavy-duty applications in automation, CNC machinery, and robotics. Brushless motors deliver smoother operation, higher efficiency, and longer life. Industrial servos often include high-resolution encoders for precise closed-loop control.
Positional servos move to and hold specific angles, ideal for precise control. In contrast, continuous rotation servos spin freely and are used where speed rather than position matters—such as drive wheels on small robots.
Rather than rotary motion, linear servos provide push-pull action, useful for applications like valve actuation and automated sliders.
Servo motors power a wide range of projects and industries:
Robotics: Articulating arms, grippers, and walking mechanisms
CNC Machines: Precision tool movement along X, Y, Z axes
Camera Pan-Tilt Units: Smooth and accurate positioning for videography
Automation: Conveyor belts, pick-and-place systems, packaging
Accuracy hinges on feedback quality. OUKE motor ranges excel thanks to high-pole-count encoders that deliver fine positional feedback, reducing backlash and improving repeatability. This makes them a top choice for demanding UK industrial environments requiring reliable motion control and precise servo motor selection.
By grasping these fundamentals and matching servo types to your application, you’ll set a strong foundation for successful projects—whether hobbyist or professional.

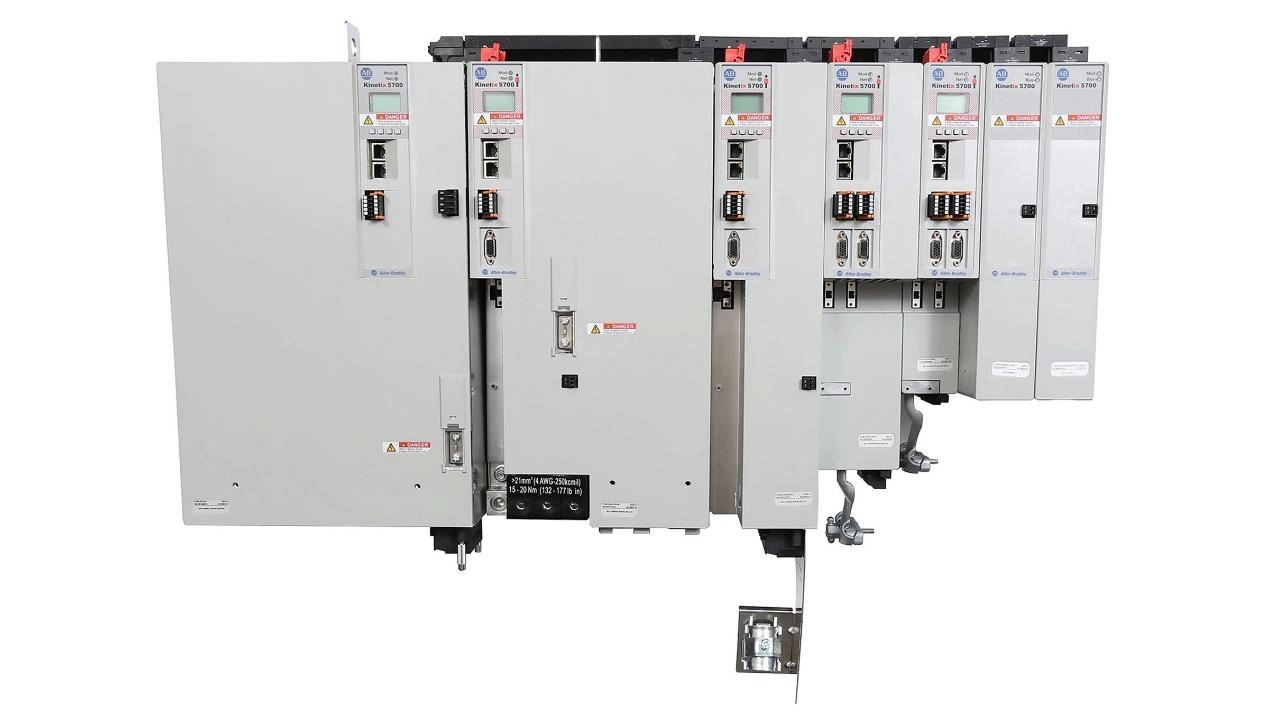

Picking the right servo motor can make or break your project. Here’s a straightforward guide to get you on track:
| Factor | What to Check | Tip |
|---|---|---|
| Torque specs | Calculate required torque with a safety margin (usually 20-30%) | Avoid undersizing to prevent motor strain |
| Speed requirements | Define max RPM and acceleration times | Match motor speed to application for smooth motion |
| Voltage & current load | Check operating voltage and peak current draw | Use a supply that can handle startup surges |
| Inertia ratio | Ratio of load inertia to motor inertia | Keep below 10:1 for better responsiveness |
| Resolution & backlash | Metal gears give less backlash, plastic cheaper but less precise | Choose metal for precision, plastic for cost savings |
| Environmental factors | IP rating, operating temperature, vibration | Higher IP for outdoor or dusty environments |
| Budget tiers | Entry, mid or premium level motors | Balance cost with performance needs |
Torque: Always size with some headroom to avoid overheating or stalling.
Speed: Fast enough without overshoot; critical for CNC and robotics.
Voltage & Current: Important for stable operation and power supply selection.
Inertia Ratio: Too high, and the motor lags; too low can wear the system.
Backlash: Affects precision; crucial in camera rigs and CNC machines.
Environment: Motors exposed to dust or moisture need suitable IP ratings.
Budget: OUKE offers product ranges across budgets to suit UK projects without compromising quality.
Many professionals rely on servo sizing tools from brands like Kollmorgen, ETEL, and OUKE’s own servo configurator to match specs quickly and accurately. These tools simplify torque and speed calculations, ensuring you pick a motor perfectly tailored to your application requirements.
This approach saves time, cuts costs, and prevents common design headaches.
Choosing the right joystick for your servo motor system starts with understanding the main types and their features. Here’s a quick guide:
| Type | Description | Pros | Cons |
|---|---|---|---|
| Analog Thumb Joystick | Uses ADC values for X/Y axis input | Simple, affordable | Prone to wear and drift |
| Hall-effect Joystick | Measures magnetic fields for position | No contact, zero drift | Slightly higher cost |
| Potentiometer Joystick | Uses variable resistors for position detection | Good resolution | Mechanical wear over time |
Spring-return: Automatically centres joystick when released, essential for robotics and CNC applications.
Push-button: Adds an extra switch function, useful for mode selection.
Axis count: Most joysticks have 2 axes (X and Y), but some offer additional axes or sliders for more control.
If you want precision and durability, industrial-grade Hall-effect joysticks are the way to go. They offer stable readings without drift, a major advantage for long-term use.
For hobby or light projects, analog thumb joysticks work fine but expect some calibration and maintenance.
Consider resolution (bits in ADC), travel range, and mounting style to fit your device or enclosure.
At OUKE, we recommend investing in high-quality Hall-effect joysticks engineered for zero drift and rugged UK environments — perfect for automation and complex servo control.
For insight on integrating these joysticks with industrial servo setups, check out our detailed pan-tilt servo control resources to get started smoothly.
When connecting joysticks to servo motors, choosing the right microcontroller is key. For simple projects, the Arduino Uno or Nano are excellent due to ease of use and plenty of resources. For more complex setups, such as multiple axes or wireless control, the ESP32 offers more processing power and built-in Wi-Fi/Bluetooth.
Single Servo + Joystick: Connect the joystick’s output (usually an analog voltage) to an Arduino analog input pin. The servo’s signal wire plugs into a PWM output pin. Power the servo separately if it draws significant current.
Pan-Tilt Setup: Use two servos controlled by two joystick axes (X and Y). Each joystick axis output is connected to separate analogue pins, while each servo connects to its own PWM pin.
Always use separate power rails or a dedicated battery pack for servos. Drawing servo power from the microcontroller board can cause brownouts and unpredictable behaviour.
Use a regulated 5v or 6v supply compatible with your servos’ voltage.
Add a large capacitor near the servos’ power lines to smooth sudden current spikes.
For enhanced precision, feed encoder or potentiometer signals back into analogue or digital inputs for closed-loop control.
This feedback helps compensate for drift or mechanical backlash, improving accuracy—something OUKE’s servo range supports through integrated encoder options.
For practical wiring layouts and tips on servo speed control principles, check out OUKE’s detailed guides, such as the speed control principle of DC servo motor, which offer helpful insights for servo and joystick interfacing.
For those looking to master servo motor control with Arduino, I've broken down three practical projects that cover a range of skills—from simple positional control to velocity mode.
Goal: Control a single standard servo (like SG90) using a joystick’s X-axis.
Key features: Read analogValues from the joystick, apply a smoothing filter to reduce jitter, then map values to servo.write().
Why smoothing? It eliminates abrupt jumps, giving smoother, more precise control.
Setup: Two servos for pan and tilt movement, controlled via a two-axis joystick.
Calibration tips: Implement a dead-zone around the joystick’s centre position to prevent unwanted drift.
Advanced tuning: Adjust servo speed and response curves for smoother tracking, ideal for camera stabilization or robotics. For more on servo control in industrial applications, see OUKE’s insight on advanced servo amplifier principles.
Focus: Control continuous rotation servos (e.g., MG996R modified) for speed and direction based on joystick input.
Implementation: Convert joystick position to PWM signals that set rotation speed and direction accurately.
Use cases: Suitable for wheeled robots and conveyor mechanisms.
OUKE provides a well-maintained Arduino library that simplifies servo and joystick integration, available along with example repositories.
While this guide includes code snippets, video demos demonstrating these projects are in preparation and will be available soon.
These tutorials cover essential PWM servo joystick mapping, helping you build reliable and responsive motion control systems with Arduino. Whether for prototypes or production, applying these straightforward steps ensures smooth and precise servo operation.
To get the most from your servo motors and joysticks, smooth and steady operation is key. Here are some proven tips to ensure reliability and performance:
Eliminate jitter: Use software filters such as moving average or low-pass filters to smooth noisy joystick readings. On the hardware side, adding small capacitors near the servo’s power pins helps reduce electrical noise that causes jitter.
Scale analog inputs carefully: When mapping analogRead values from joysticks to servo.write commands, calibrate the range precisely. This ensures proportional control without sudden jumps, improving responsiveness.
Manage power with external BEC/UBEC: For projects running multiple servos, avoid brownouts by supplying power through an external Battery Eliminator Circuit (BEC) or Universal BEC (UBEC). This keeps voltage stable and prevents resets or servo glitches.
Calibrate regularly: Implement calibration routines to centre your servos and neutralise joystick dead zones. This step boosts accuracy, especially after installation or mechanical wear.
Prioritise safety: Include current limiting to protect your servos from overload, apply soft start routines to reduce mechanical stress at startup, and design emergency stop functions for quick shutdowns if the system behaves unexpectedly.
By following these best practices, your servo and joystick system will perform reliably and smoothly, whether for robotics, CNC, or automation projects. For an example of high-quality servo components with advanced feedback, check out the OUKE high-pole-count servos featuring precision encoders designed for smooth operation and tight control.
Even with the best setup, servos and joysticks can throw a few quirks your way. Here's how to tackle the typical problems:
Servo Buzzing and Jitter
Often caused by ground loops or poor wiring; make sure all grounds share a single reference point.
PWM signal frequency mismatches can cause instability—stay within your servo’s recommended range (usually 50Hz for hobby servos).
Check for noisy power supplies or weak connections that could introduce interference.
Positioning Inaccuracies
Gear backlash in lower-quality servos with plastic gears can cause slop—metal gears reduce this significantly.
Insufficient torque means the servo can’t maintain position under load, leading to drift or stalling. Always double-check torque specs with safety margins.
Using closed-loop feedback encoders helps maintain accuracy, especially in critical applications.
Joystick Drift Fixes
Hall-effect joysticks are preferred for industrial use as they eliminate mechanical wear and offer near zero drift.
For potentiometer-based joysticks, implement a software dead-zone where minor ADC fluctuations are ignored to stabilise readings.
Regular calibration routines can keep outputs reliable.
Overheating Solutions
Continuous or heavy use can cause servo motors to overheat; ensure proper heat sinking or mounting on metal plates to dissipate heat.
Limit the duty cycle and avoid pushing servos beyond their rated torque to prevent thermal shutdown or damage.
Adequate ventilation and temperature monitoring add extra protection.
Addressing these common issues ensures your servo and joystick systems run smoothly and reliably, minimising downtime and maintenance hassle. For industrial servo controls, products like the Allen Bradley Kinetix 5500 servo drives offer robust solutions designed to reduce such problems.
For precision and smooth operation, advanced motion control using PID tuning is essential. Proper tuning of proportional, integral, and derivative parameters helps achieve zero overshoot and stable servo responses, especially in high-performance applications. This means your servo motors react swiftly without wobble or delay—crucial for robotics, CNC machinery, or automated assembly lines.
Integrating these servo systems with ROS (Robot Operating System) or industrial PLC (Programmable Logic Controller) setups takes your control capabilities a step further. These platforms allow for real-time feedback and complex motion planning, making your system more intelligent and adaptable. OUKE's high-pole-count servos excel in these environments due to their accurate feedback encoders and robust build quality.
An example from industry highlights OUKE’s servo motors applied in demanding processes requiring fine positional control and reliability over long periods. These case studies demonstrate how careful selection, PID configuration, and system integration reduce downtime and boost productivity.
For professionals seeking reliable components, OUKE offers a comprehensive range of servo motors designed to meet stringent industrial requirements—ideal for seamless integration with popular PLC systems, such as those discussed in the six things Siemens PLC users ought to know to boost efficiency.
Key takeaways for advanced control:
Use PID tuning to eliminate overshoot and jitter.
Couple servos with ROS or PLC for enhanced automation.
Choose high-pole-count servos for precise, repeatable feedback.
Leverage real-world OUKE industrial applications as benchmarks.
This approach ensures your servo-driven projects deliver smooth, efficient motion control tailored to professional UK industry standards.
