If you’re managing an Allen-Bradley POINT I/O rack and need to add an I/O card without disrupting your automation line, you’re in the right place. Expanding your existing POINT I/O system lets you scale efficiently—whether it’s more sensors, actuators, or new process points—all while keeping downtime to a minimum. But the key is doing it right: from hardware installation to Studio 5000 configuration, every step counts to ensure seamless integration and reliable operation. In this guide, you’ll get clear, no-fluff instructions on how to safely and confidently expand your POINT I/O rack, backed by practical tips and industry best practices that save you time and headaches. Ready to upgrade your I/O setup like a pro? Let’s dive in.
Before adding an IO card to your existing POINT I/O rack, it's essential to prepare properly. First, assess your current setup. Check how many slots are available in your POINT I/O rack and confirm the type of I/O cards already installed. Make sure your rack supports expansion and identify the exact model numbers to match compatibility.
Next, gather the necessary tools and materials. This typically includes a screwdriver, appropriate wiring tools, wire labels, and the new POINT I/O expansion module. Also, have the manufacturer’s wiring diagrams handy—these are crucial for accurate PLC I/O module wiring and avoiding mistakes.
On the software side, prepare by opening Studio 5000 (formerly RSLogix 5000) for configuration. You'll need to update the chassis size once the hardware is installed, so having your project file ready is key.
Lastly, prioritize safety first. Always power down and lock out the system before working on the rack. Wear proper personal protective equipment and follow your facility’s safety procedures to prevent accidents during the installation.
By preparing these elements in advance, the IO card installation will go smoothly and efficiently. For a detailed step-by-step guide to hardware and software setup, check this resource on how to add IO card to existing POINT I/O rack.
Before you add an IO card to your existing POINT I/O rack, it helps to understand the basics of how these racks work. POINT I/O racks have a simple, modular design where each I/O module snaps onto a DIN rail and connects via a backplane bus. This setup makes it easy to expand without rewiring the entire system.
POINT I/O racks consist of a power supply, a communication adapter (like an EtherNet/IP adapter), and multiple I/O modules. Each module serves a specific purpose—digital input, digital output, analog input, or analog output, for example. When you add a new card, you’re essentially extending this chain, so the communication flows seamlessly.
There are different I/O cards to match your application needs:
Digital Input Modules – Detect on/off signals from devices like switches or sensors.
Digital Output Modules – Control devices like motors, lights, or alarms.
Analog Input/Output Modules – Handle variable signals like temperature or pressure values.
Specialty Modules – Such as thermocouple inputs or high-speed counters.
Most expansions happen because you need more I/O points or want to upgrade to a newer module type. Some usual cases include:
Adding more sensors or actuators to your control system.
Replacing older modules with newer, more reliable versions.
Extending your system to cover a new part of the facility without redesigning the whole rack.
Knowing these basics makes adding an Allen-Bradley 1734 I/O installation much smoother. The POINT I/O system is designed for quick upgrades with minimal downtime, especially when paired with tools like Studio 5000 for configuration and RSLogix 5000 for programming.
Before you start, power down the entire POINT I/O rack to avoid any electrical hazards and prevent damage to the modules. Make sure you unplug the power supply or turn off the breaker supplying the rack. Remove any covers or protective guards to access your existing rack easily. Confirm that you have a clean and static-free workspace to prevent any accidental damage.
Locate an available slot in your Point I/O rack where you want to add the new I/O card. Carefully snap the new POINT I/O expansion module into place, ensuring it clicks securely onto the DIN rail or mounting bracket. If you're installing a DIN rail I/O adapter setup, make sure the module is properly seated and aligned with adjacent modules to maintain proper bus communication.
Next, follow your PLC I/O module wiring diagram to connect field devices to the new card. Use appropriate wire gauges and terminal blocks as specified by Allen-Bradley 1734 I/O installation standards. Double-check each connection to ensure it’s tight and correctly mapped to avoid faults later on. Label your wiring clearly for future troubleshooting. If your system uses EtherNet/IP for remote I/O rack configuration, verify the network connections are secure.
After wiring, replace any covers you removed earlier and secure the rack. Restore power to the rack carefully and watch for any status indicators on the new module. A green LED usually indicates proper installation and communication with the controller. If you see any faults, double-check your wiring and seating of the card before proceeding with software configuration.
For additional details, you can check out our step-by-step guide on adding an IO card to an existing Point I/O rack which includes photos and tips to simplify this process.
Once you’ve physically installed the new POINT I/O card, it’s time to configure it in Studio 5000 to get everything talking properly.
First, open your Studio 5000 project and update the chassis size to include the new module. This tells the PLC how many slots the rack now contains, allowing it to recognize the expansion module.

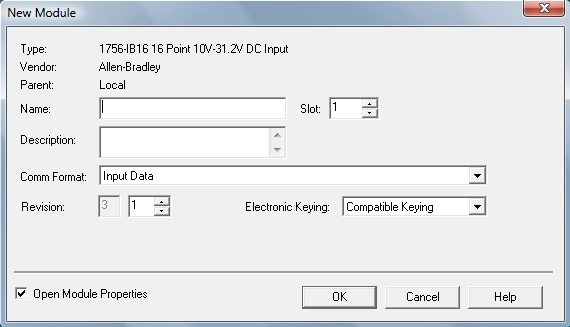

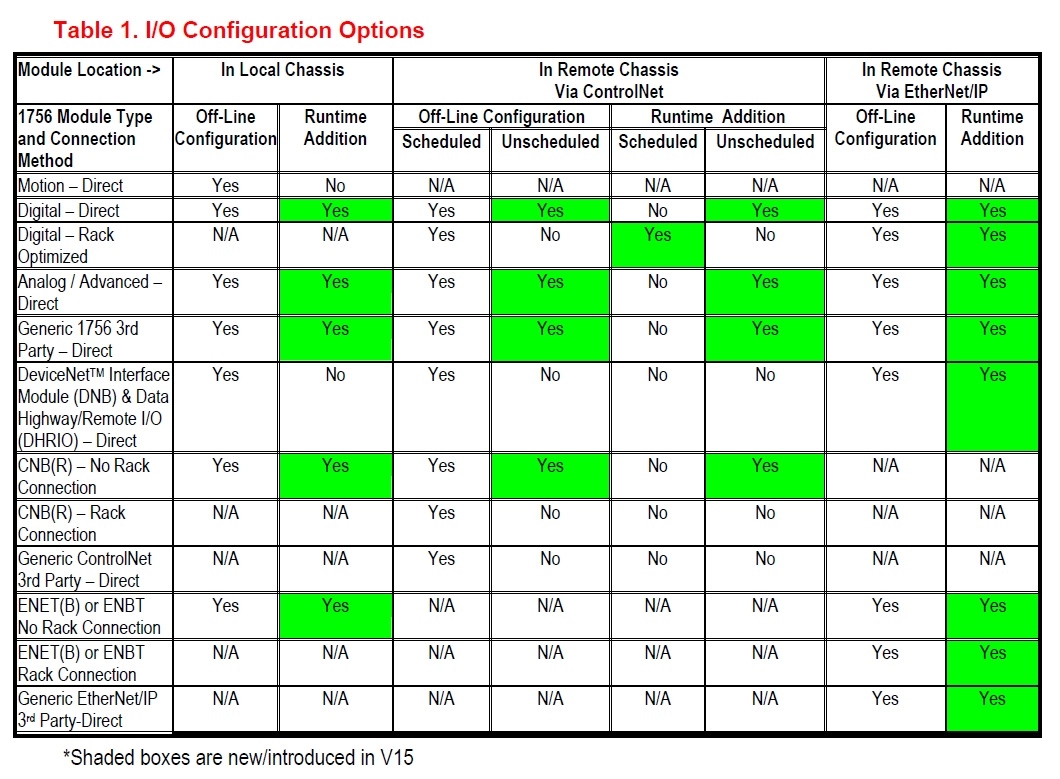

Next, add the new I/O card to your I/O configuration tree. Pick the exact POINT I/O expansion module you installed, matching the catalog number and slot location. This step integrates the new card with your existing setup.
After adding the module, download your updated project to the PLC. Watch for any errors during this step, and confirm the module is communicating correctly by checking its status in your controller’s I/O tree.
If you’re working with EtherNet/IP or remote racks, make sure your network settings and fieldbus parameters align with the new setup to avoid communication hiccups.
For a more detailed walkthrough on adding IO cards and software setup, you can check out this step-by-step guide on POINT I/O expansion module installation.
Once you’ve installed and configured your new POINT I/O expansion module, it’s time to test and commission the expanded rack to ensure everything works smoothly.
Power up the rack carefully and watch for any error lights on the new I/O card.

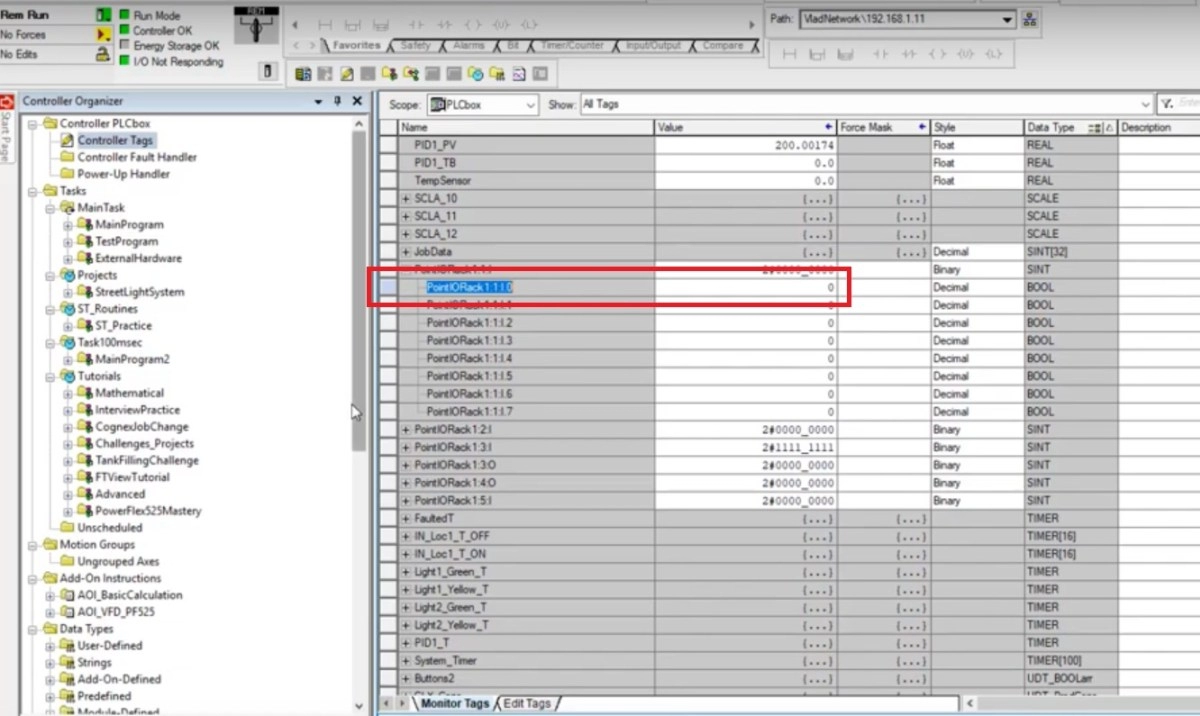

Use your PLC or Studio 5000 software to check communication with the new module. It should show as active with no faults.
Run simple input/output tests on the new card to verify proper wiring and module function.
Integrate the expanded rack with the rest of your control system.
Perform a system-wide test covering all I/O points, both old and new.
Confirm that EtherNet/IP rack configuration updates are working properly and data flows without issues.
Make sure all modules communicate seamlessly with the PLC to prevent operation delays or faults.
Monitor system behavior during initial operation to spot any slowdowns or unexpected responses.
Fine-tune scanning times, if supported, to maintain efficient network performance.
Apply firmware updates to the POINT I/O modules if necessary to improve reliability.
Document settings and test results for future reference.
Proper testing and commissioning help you avoid surprises and keep your industrial automation running reliably after the POINT I/O expansion. For a detailed hardware setup guide, check out our step-by-step resource on how to add IO card to existing POINT IO rack.
When adding an IO card to your existing POINT I/O rack, some common faults might pop up. Here’s what to watch for—and how to fix them fast.
Module Not Detected: This usually happens when the rack size isn’t updated in Studio 5000 or the card isn’t seated properly.
Communication Faults: Look for loose cables, wrong wiring based on your PLC I/O module wiring diagram, or EtherNet/IP rack configuration problems.
Status LED Errors: Red or flashing LEDs on the POINT I/O expansion module often signal wiring issues or power problems.
Double-check Seating: Ensure the IO card snaps firmly onto the DIN rail I/O adapter and connects solidly to adjacent modules.
Update Software Settings: Always update chassis size and add the new module electronically in Studio 5000 before powering up.
Verify Wiring: Use the correct wiring diagram for your Allen-Bradley 1734 I/O installation to ensure inputs and outputs are wired right.
Power Cycle: Sometimes, simply powering down and then back up can clear unexpected faults.
Keep a baseline backup of your RSLogix 5000 add I/O card configuration before starting the expansion. It makes rolling back quick if issues persist. Also, regularly monitor the POINT I/O rack with remote diagnostics tools to catch faults early in remote I/O rack optimization.
Following these steps will help you handle issues confidently while expanding your industrial automation I/O setup.
Keeping your Point I/O rack running smoothly over time means sticking to a few simple best practices. Here’s what I recommend for long-term reliability:
Inspect connections often: Check wiring and module seating regularly to catch loose connections before they cause faults.
Clean the rack: Dust and debris can affect heat dissipation. Use a soft brush or compressed air to keep the rack clean.
Check power supply health: PSU issues are a common cause of downtime. Monitor voltages and replace any aging or noisy power supplies promptly.
Update firmware and software: Keep your Studio 5000 and module firmware updated to benefit from bug fixes and performance improvements.
Plan your rack layout: Leave space for future POINT I/O expansion modules. This saves hassle when adding Allen-Bradley 1734 I/O cards.
Standardize wiring: Use consistent labeling and wiring practices to make future upgrades and troubleshooting easier.
Document changes: Keep detailed records of I/O additions, configurations, and wiring diagrams. This helps when making Ethernet/IP rack configuration adjustments later.
Buy compatible replacements: Stick with Allen-Bradley original or approved POINT I/O expansion modules to avoid hidden costs from incompatible parts.
Optimize I/O usage: Only add the I/O points you need; over-expanding can waste budget and complicate PLC I/O module wiring.
Prevent downtime with routine tests: Regular commissioning checks catch issues before they cause costly downtime.
By following these simple, practical steps, your Point I/O system will stay reliable, easy to expand, and cost-efficient for the long haul. This keeps your industrial automation IO upgrade on track and your operations running without a hitch.
