If you’re wondering how to take out a gear pump from the servo motor without wrecking your expensive equipment, you’re in the right place. Whether it’s a stuck lubrication pump on a CNC spindle or a seized hydraulic gear pump on an industrial servo motor, removal isn’t as simple as yanking it off. These compact pumps often grip shafts tightly due to corrosion, old oil residue, or thermal expansion—and a wrong move can mean costly damage or misalignment that kills your machine’s performance. In this guide, you’ll get clear, no-nonsense steps to safely remove internal or external gear pumps, avoid common pitfalls, and keep your servo motor running smoothly after. Stick with me, and you’ll save hours of headache and prevent expensive repairs.
Before you start pulling the gear pump off your servo motor, make sure you’ve got the right tools and materials ready. Having them handy saves you from scrambling mid-job and keeps the process smooth.
Socket set and wrenches – for removing mounting bolts, especially smaller star-pattern bolts on gear pumps.
Gear puller (preferably a three-jaw type) – critical if the pump is seized on the shaft.
Snap ring pliers – to remove tiny C-clips or retaining rings on the shaft.
Heat gun or small propane torch – helps loosen stubborn pumps without overheating (never exceed 120 °C near the motor!).
Soft-faced hammer or dead blow hammer – for gentle tapping when freeing the pump.
Torque wrench – to correctly torque bolts during reassembly.
Clean rags and degreaser – to wipe surfaces and prevent contamination.
Oil drain pan and gloves – for safe oil draining and handling.
Labeling tape and marker – document wires and hoses for reinstallation.
Inspection mirror and flashlight – to spot hidden clips or damage.
Digital caliper or dial indicator – for checking shaft runout after removal.
Manual or service guide for your specific servo motor and pump model.
Having these ready makes the difference between a clean, damage-free job and a night spent troubleshooting stuck parts or lost bits. Remember, the right tools mean fewer mistakes and less time wasted.
When it comes to gear pump removal from servo motors, knowing the mounting type helps a lot. Here are the common setups you’ll find:
This is the most common setup, especially on CNC spindle lubrication systems. The pump sits inside the motor’s rear housing, often driven directly by the motor shaft.
Here, the gear pump is attached externally on the side of the servo motor using a mounting bracket. It’s easier to access but requires careful handling during removal.
In this case, the pump is bolted directly onto the motor flange. This setup is frequent in hydraulic applications where space is tight, and it provides a rigid connection.
The way the pump connects to the motor shaft affects removal steps:
Keyed shaft: Uses a key to lock the pump gear on the shaft, easy to identify and remove.
Splined shaft: Has grooves that fit into the pump’s internal spline. Often includes a spring-loaded lock that requires special care.
Oldham coupling: A type of flexible coupling that may require alignment checks when removing and reinstalling the pump.
Understanding these mounting types will help you prepare the right tools and approach before you start the gear pump removal process from your servo motor.
Removing a gear pump from a servo motor isn’t tricky if you follow the right steps. Here’s a simple, reliable way to get it done:
Take clear photos and label all wires and connections before you start. This saves headaches when putting everything back later.
Carefully unplug any electrical connectors and loosen all oil lines. Make sure to cap or cover openings to prevent contamination.
Drain out any leftover oil from the pump and motor. Use an appropriate container and dispose of the oil responsibly.
Loosen mounting screws or bolts in a star pattern (crosswise sequence). This prevents uneven pressure that can damage parts.
If the pump won't budge, gently apply moderate heat around the mounting area (don’t overdo it). Use a rubber mallet or wooden block to tap lightly and loosen the pump.
If the pump is stuck on the shaft, avoid prying with screwdrivers. Instead, use a gear puller designed for servo motors to pull it off safely without damage.
Once removed, check the motor shaft and any couplings or keys for signs of wear, scoring, or looseness. Replace if needed.
Wipe down the mounting surfaces on both pump and motor. Remove old gasket material, dirt, or oil to ensure a clean, tight fit when reinstalling.
Following these steps carefully will help you remove the gear pump safely and keep your servo motor in good shape.
When working with a rear-mounted lubrication gear pump on CNC spindles, you need to be extra careful. These pumps often have a tiny C-clip or snap ring holding them onto the servo motor shaft. Before you start pulling, make sure to locate and remove this clip gently using small snap ring pliers or a similar tool. Missing this step can make the gear pump stuck on servo motor shaft, causing damage when you try to force it off.
Also, be very cautious around the encoder cover behind the pump. It’s fragile and easy to damage if you’re not careful with tools or heat. Avoid prying or hitting near the encoder area—this prevents costly repairs or motor replacement down the road.
If you have access to detailed photos or video screenshots of your specific spindle model, refer to them often. They show you exactly where clips sit and how the pump fits, helping prevent mistakes during removal.
In :
Carefully remove the tiny C-clip or snap ring from the shaft first
Use proper tools designed for small clips to avoid slip-offs
Protect the encoder cover—no prying or direct impact near it
Consult model-specific images or videos whenever possible to guide your removal
Taking these precautions will make removing rear-mounted lubrication gear pumps much smoother and safer for your servo motor.

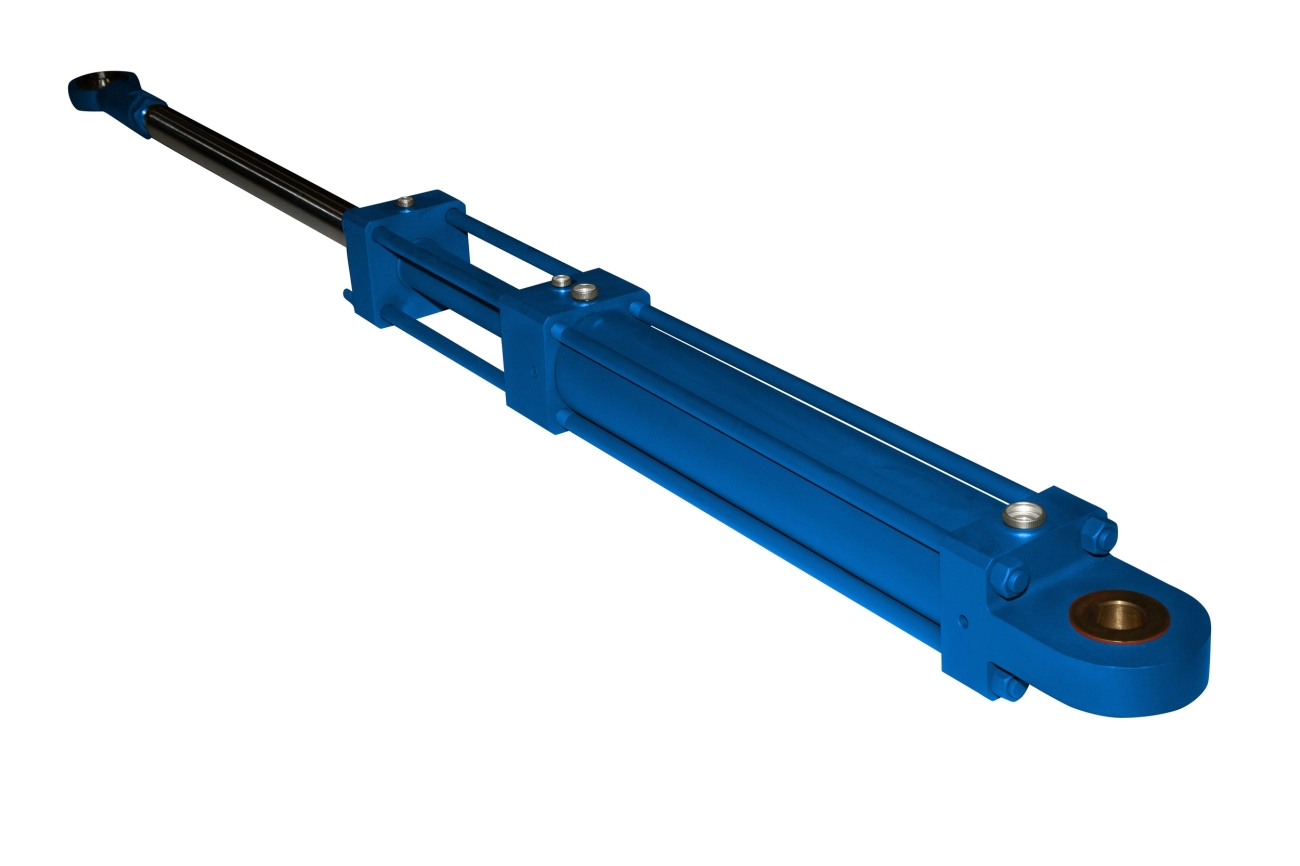

When dealing with a hydraulic servo pump attached to a splined shaft, there’s an internal spring-loaded spline lock keeping the pump secure. To safely release this lock, you need to:
Compress the spring mechanism gently, often by pushing the pump slightly towards the motor while turning it.
Avoid using screwdrivers or prying tools between the pump and motor shaft. Prying can damage the spline teeth or warp the coupling, leading to expensive repairs or total motor failure.
Instead, use proper tools designed for spline disengagement or follow the manufacturer’s method to unlock the spline lock smoothly. Taking it slow and steady prevents breaking the internal parts, which is a common problem with servo motor gear pump removal on splined shafts.
When removing a gear pump from a servo motor, watch out for these common errors that can cause serious damage:
Prying between pump and motor housing: Using screwdrivers or levers to force the pump off can crack the housing or bend the shaft. Always avoid harsh prying and focus on proper methods like using a gear puller or gentle tapping.
Heating above 120 °C: Applying too much heat to free a stuck gear pump may seem helpful, but going beyond 120 °C risks burning out the motor’s windings and ruins sensitive encoder components. Use controlled, moderate heat only.
Losing tiny shims or keys: Small parts like shims, keys, or retaining rings are easy to lose during disassembly. These components are critical for correct pump alignment and function. Keep all parts organised and labelled to avoid costly errors on reassembly.
Avoid these pitfalls to protect your servo motor’s integrity and keep your gear pump removal smooth.
After removing and servicing the gear pump, it’s crucial to clean, inspect, and reinstall it properly to avoid future issues.
Always tighten bolts following your motor’s frame size specs. Here’s a quick guide:
| Motor Frame Size | Bolt Torque (Nm) |
|---|---|
| 80 - 100 mm | 15 - 20 |
| 110 - 130 mm | 25 - 30 |
| 140 - 160 mm | 35 - 45 |
| 180 mm and above | 50 - 60 |
Tighten bolts in a star pattern to evenly distribute pressure.
Avoid over-tightening to prevent damage to the pump flange or motor housing.
Priming the new gear pump before startup:
Fill the pump and oil lines with clean hydraulic oil to avoid dry running.
Rotate the pump shaft by hand to circulate the oil inside.
Slowly power up the system to let oil fully saturate the pump gears before full load operation.
Following these steps helps maintain pump life, prevents noise and seals leaks, and keeps your servo motor running smoothly.

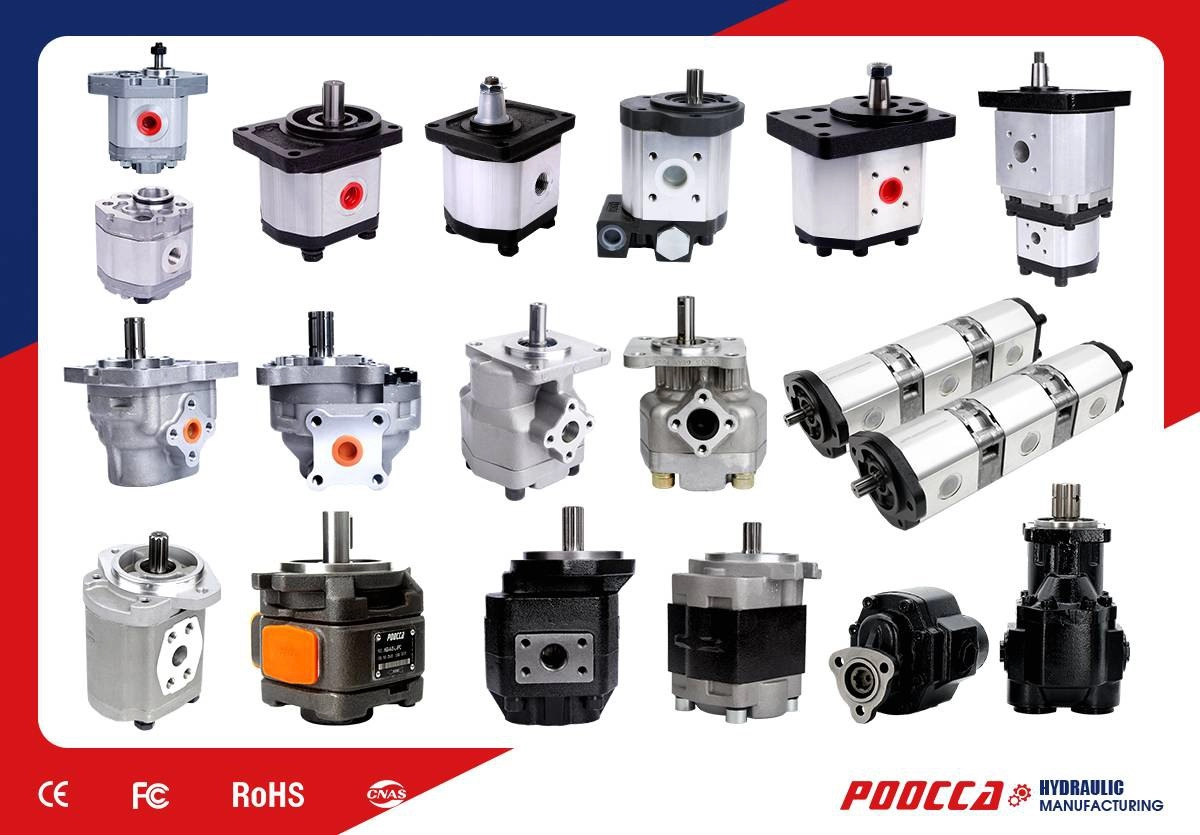

Sometimes, fixing the gear pump isn’t worth it. Here are clear signs it’s time to replace:
Worn Gears: If the teeth look rounded, chipped, or uneven, the pump won’t maintain proper pressure and will slip.
Scored or Damaged Housing: Deep scratches or gouges inside the pump body cause leaks and reduce efficiency.
Bearing Failure: Noisy, rough, or seized bearings mean the pump won’t spin freely, risking motor damage.
For local CNC users, oukecnc compatible replacement parts offer reliable, direct-fit gear pumps designed for quick swaps and long service life. Buying new instead of rebuilding saves time and prevents repeat failures, especially if your pump has one or more of these issues.
If any of the above shows up during inspection, replacing the gear pump is your best bet to keep your servo motor running smooth and avoid downtime.
If your gear pump spins but doesn’t build pressure, it could be either the pump itself or the relief valve. Usually, worn or damaged gears in the pump cause loss of pressure. But don’t ignore the relief valve—it might be stuck open or set too low, letting oil bypass and dropping system pressure. Check both to pinpoint the issue before replacing parts.
Running the machine without the gear pump isn’t recommended. The gear pump is crucial for lubrication or hydraulic functions depending on your servo motor setup. Without it, components may overheat, seize, or suffer damage quickly. If it must be done short-term, keep it as brief as possible and monitor temperature and performance closely.
Replacement depends on usage and conditions, but as a rule of thumb:
Inspect every 6 months if running heavily.
Replace every 1-2 years for moderate use to avoid sudden failure.
Look out for signs like noisy operation, leaks, or dropping pressure—these signal it’s time for a new pump.
Using genuine parts such as oukecnc compatible gear pumps ensures longer life and better fit for your servo motor. Regular maintenance saves costly downtime later.
