Name: IFM O1D100
Brand: Dongguan Ouke Automation Equipment Co., Ltd.
Price: 100 USD

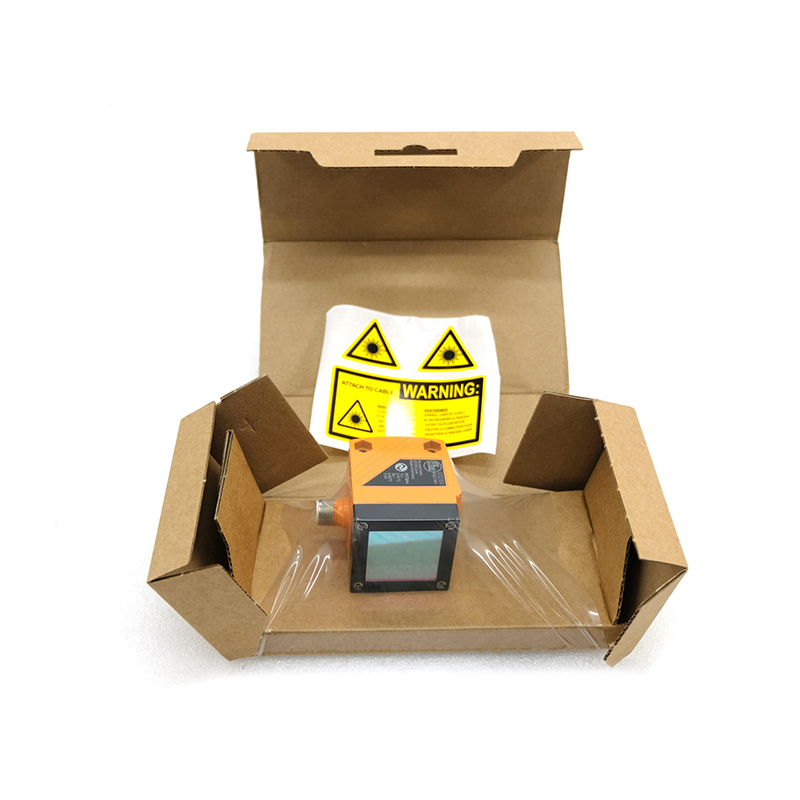

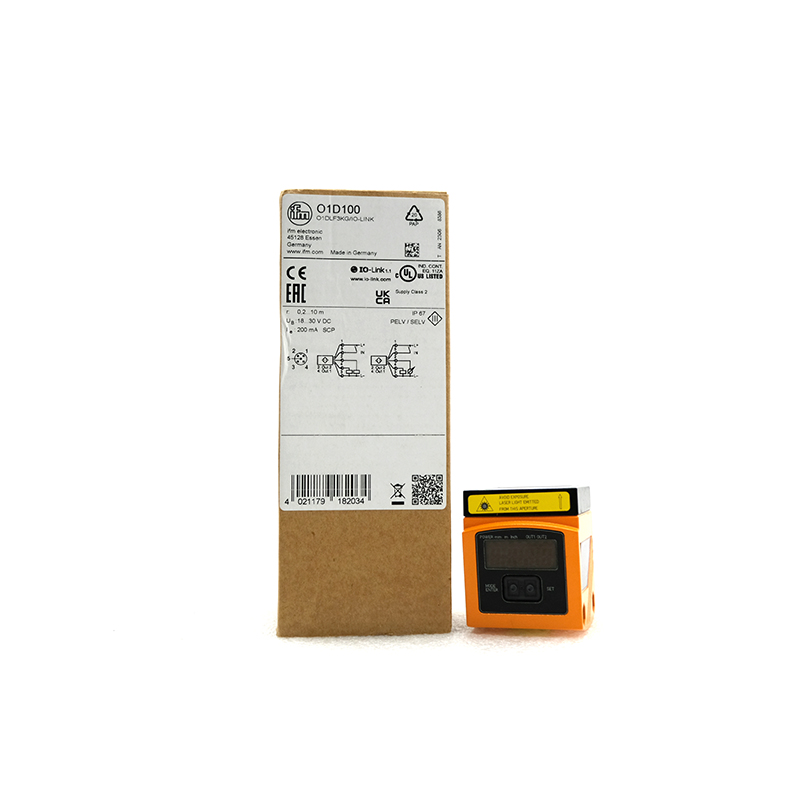

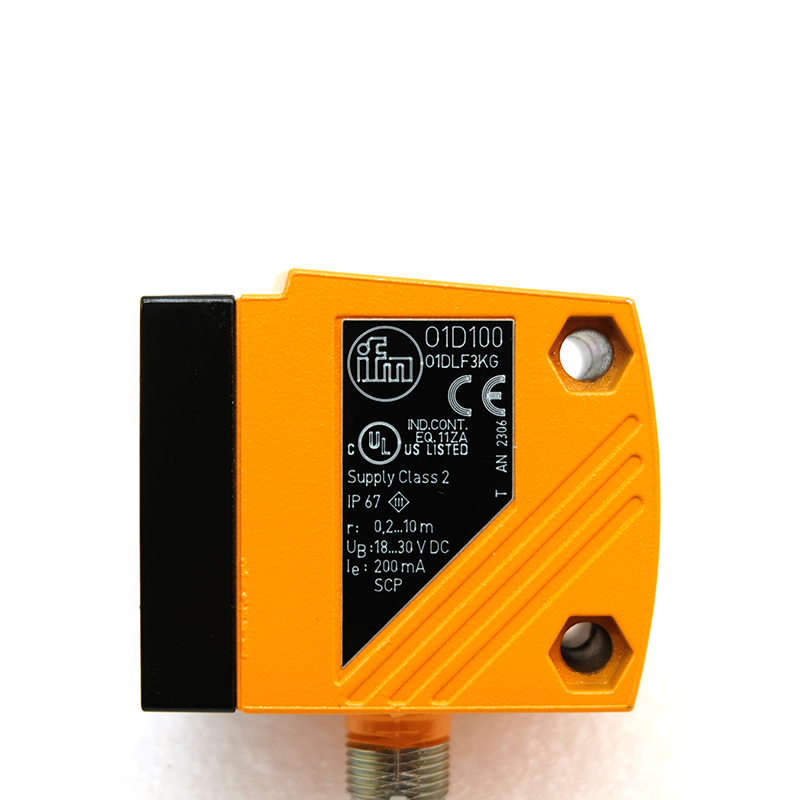

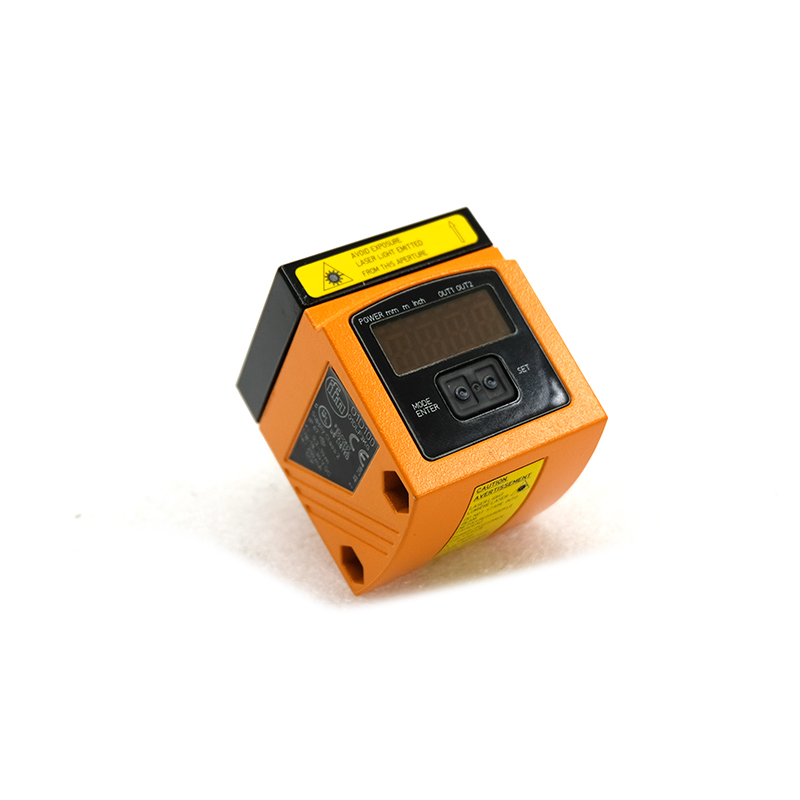

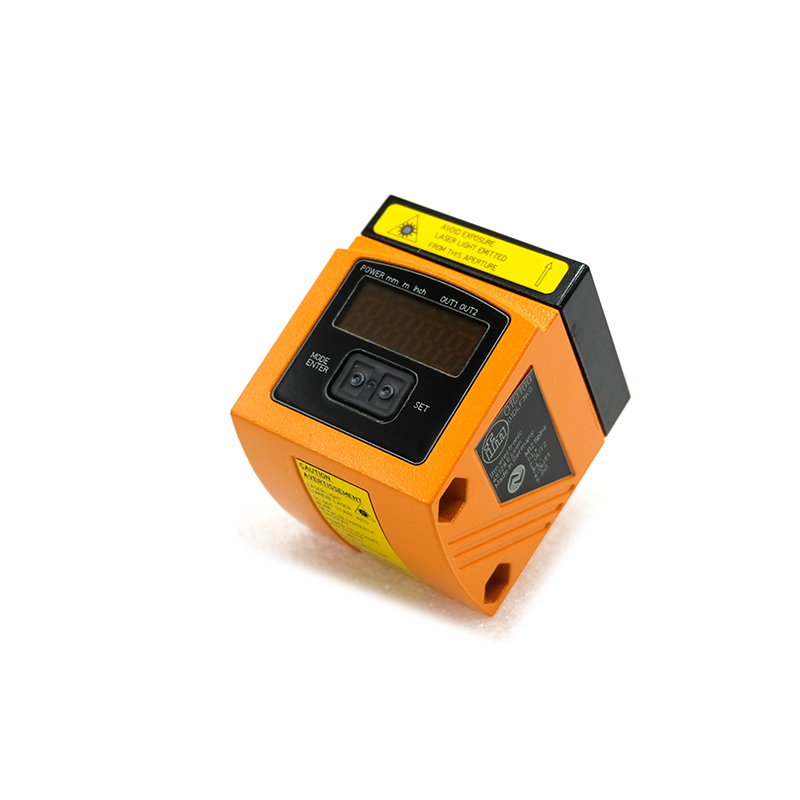

IFM/ifm Laser Distance Sensor O1D100 is a high-precision, industrial-grade distance measuring device designed for harsh environments with the following core features:

1. Basic parameters
- Measuring range: 0.2~10 meters (for 90% reflectivity of white paper).
- Accuracy: ±4~85mm (varies according to measurement distance and reflectivity).
- Measurement frequency: 1~50 Hz, adapt to different dynamic needs.

2. Core Features

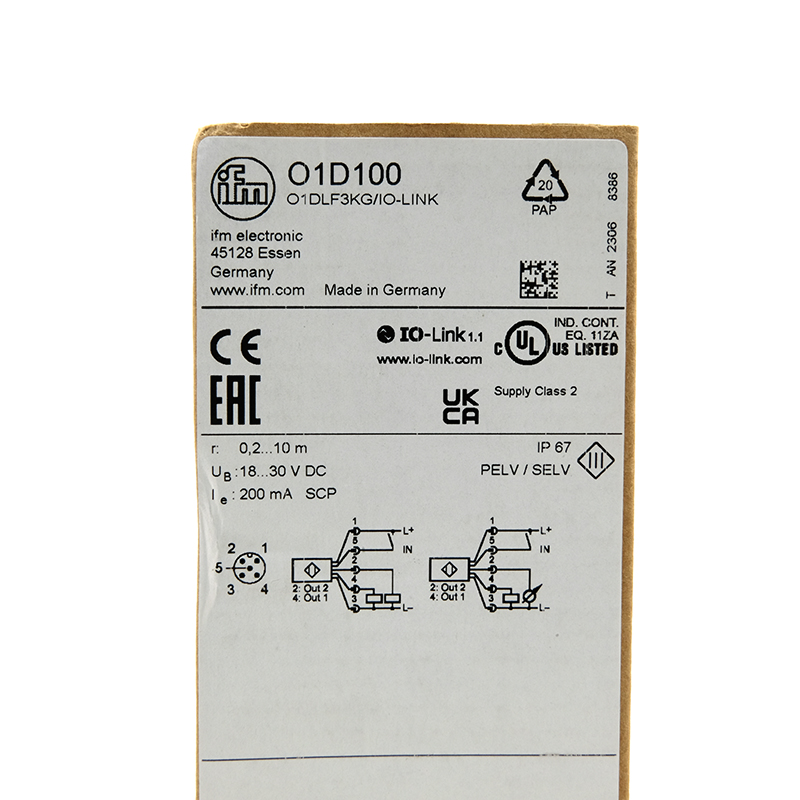

- Dual-output configuration: 2 programmable PNP digital outputs (NO / NC), one of which can be switched to an analog output (4~20 mA or 0~10 V).
- IO-Link communication: Supports real-time parameter adjustment and data transmission, compatible with industrial automation systems.
- Background suppression: Effectively avoid ambient light interference and improve measurement stability in complex scenes.

3. Durability & Protection
- Protection level: IP67, dustproof and waterproof, adapt to -10°C~60°C ambient temperature.

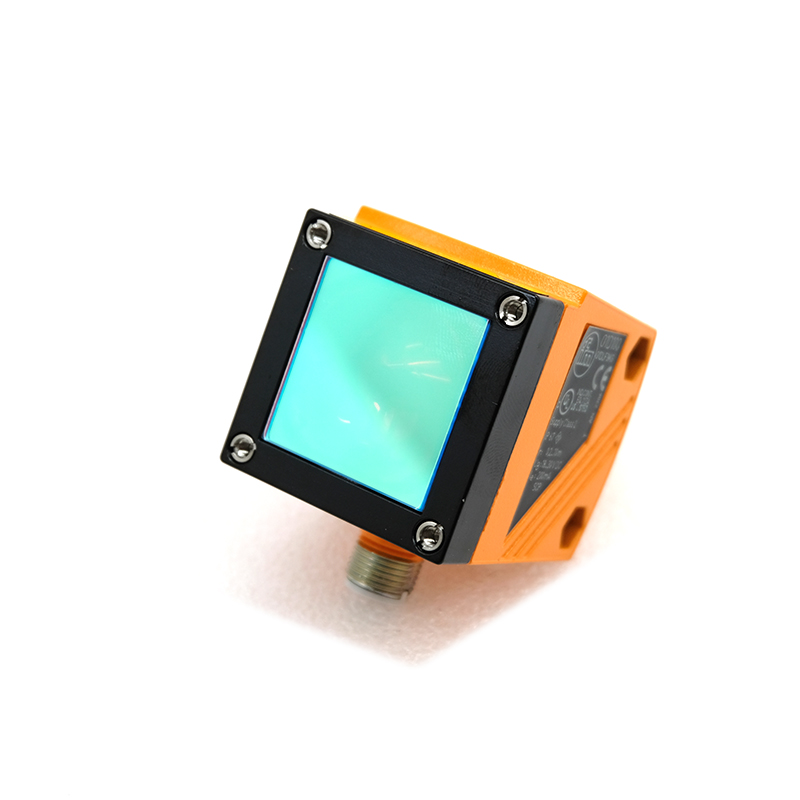

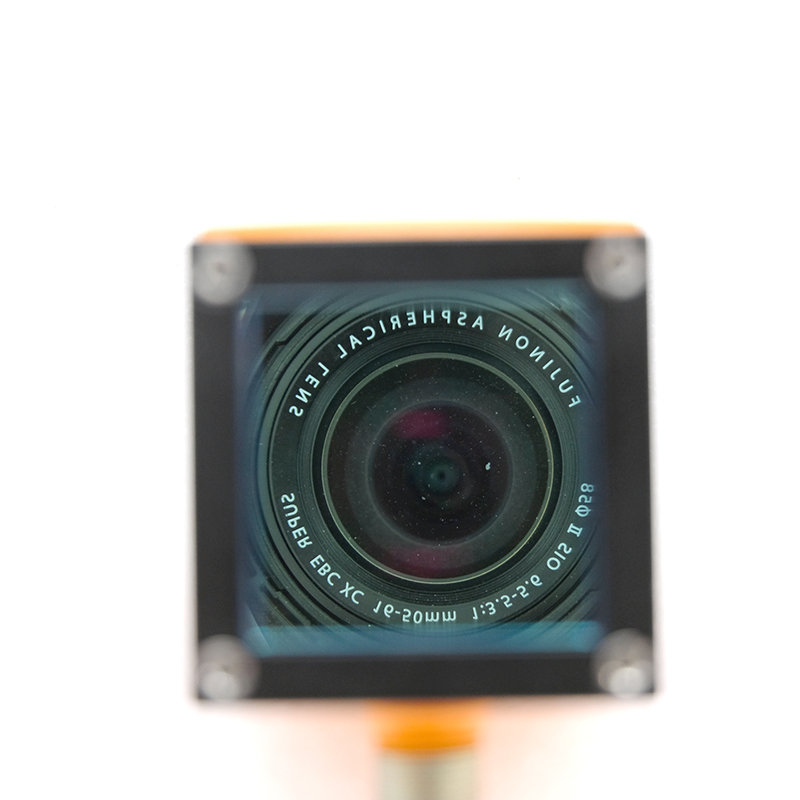

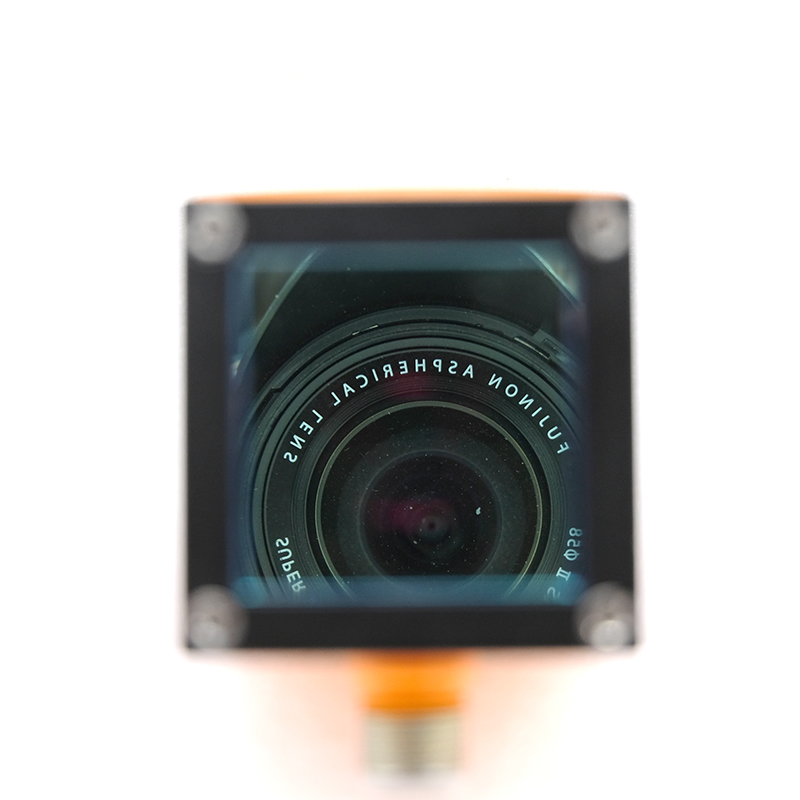

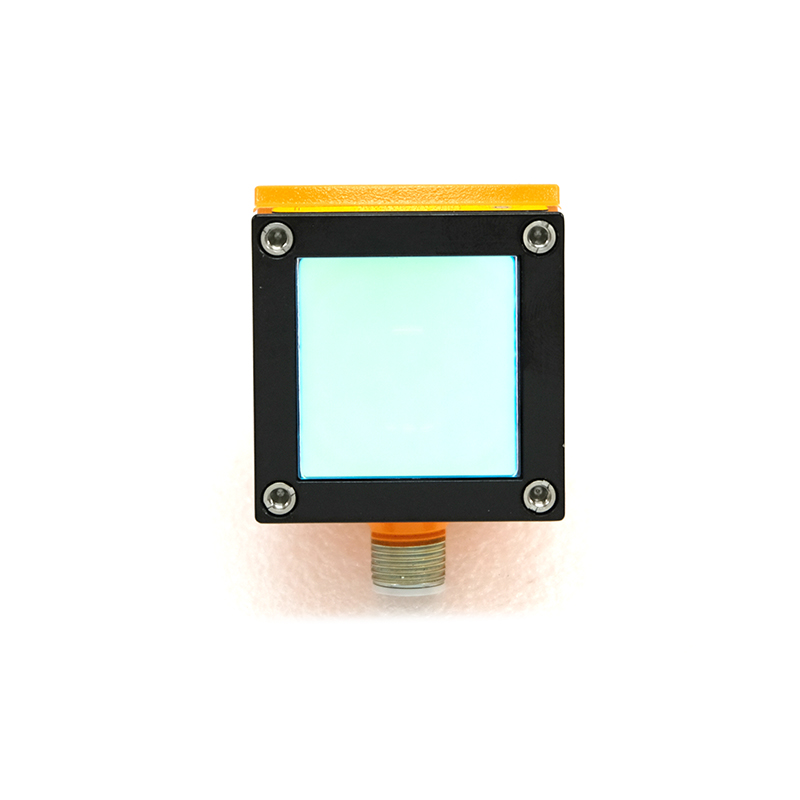

- Housing Material: Molded zinc body, glass lens and polycarbonate LED window for impact resistance.

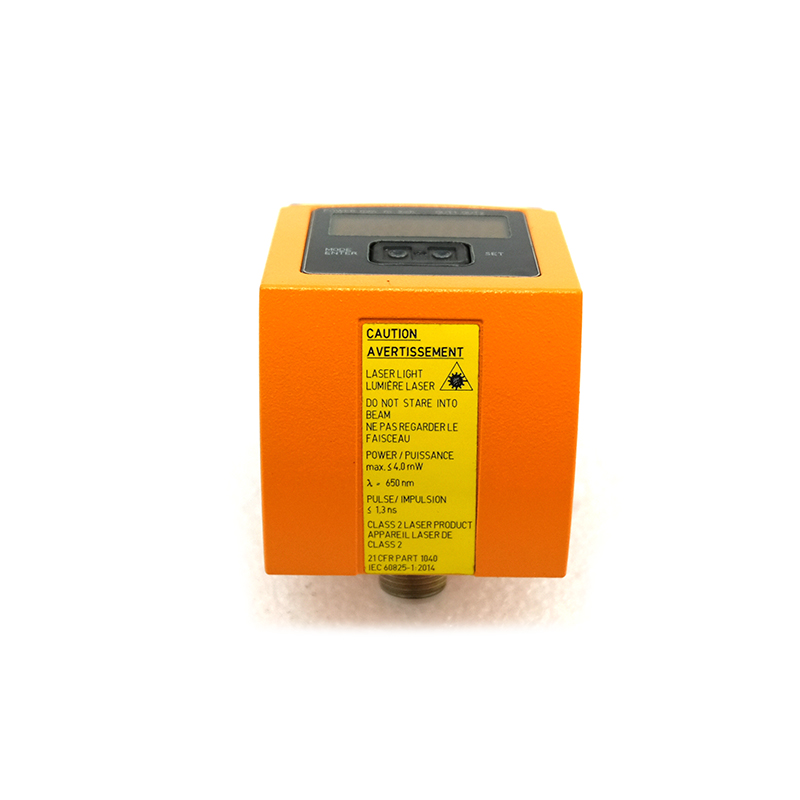

- Laser safe: Class 2 compliant (wavelength 650 nm, power ≤ 4 mW).

4. Application Scenarios
- High-temperature industrial environments such as steel and glass manufacturing.
- Automated warehousing (cargo positioning), robot navigation.
- Mobile machinery or installation scenarios with limited space (size 59×42×52 mm).

5. Additional features

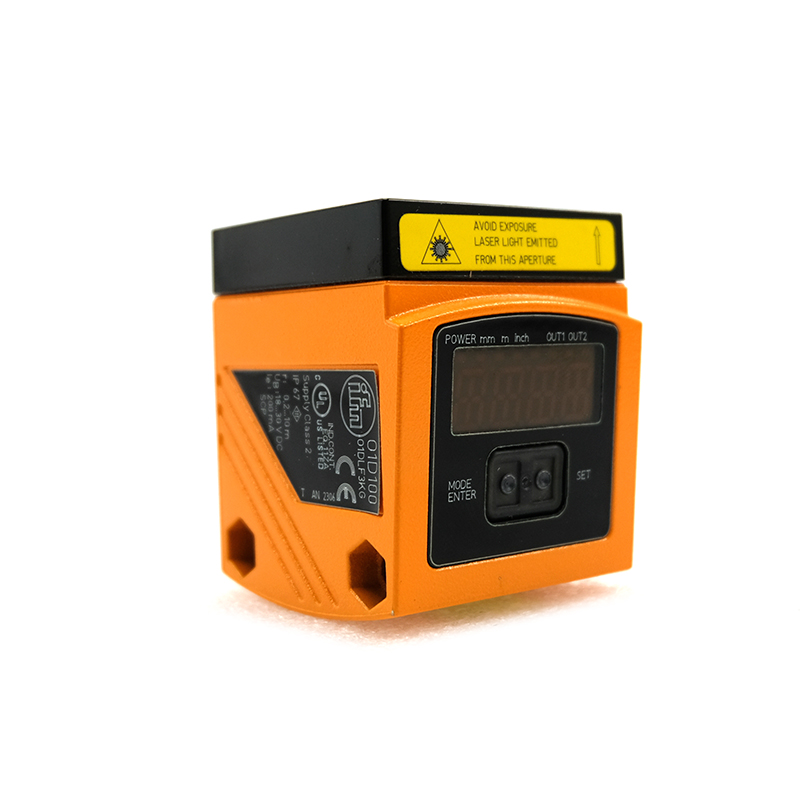

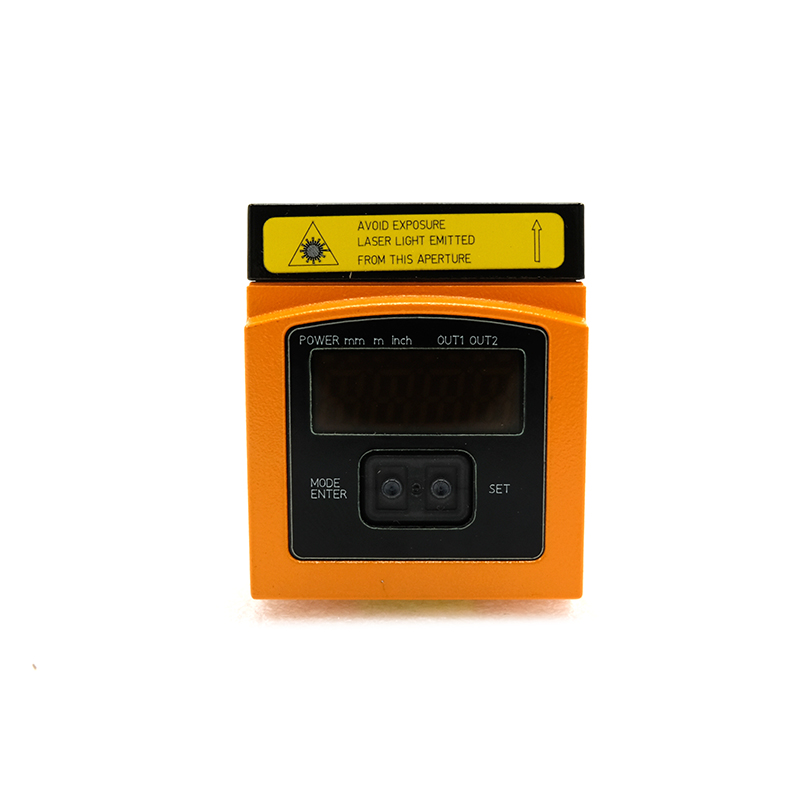

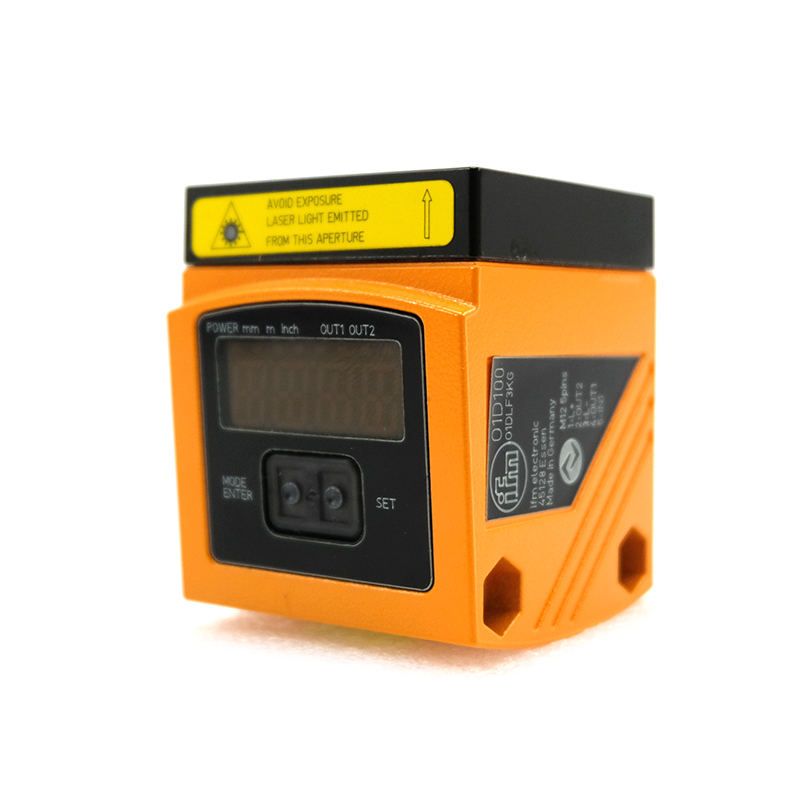

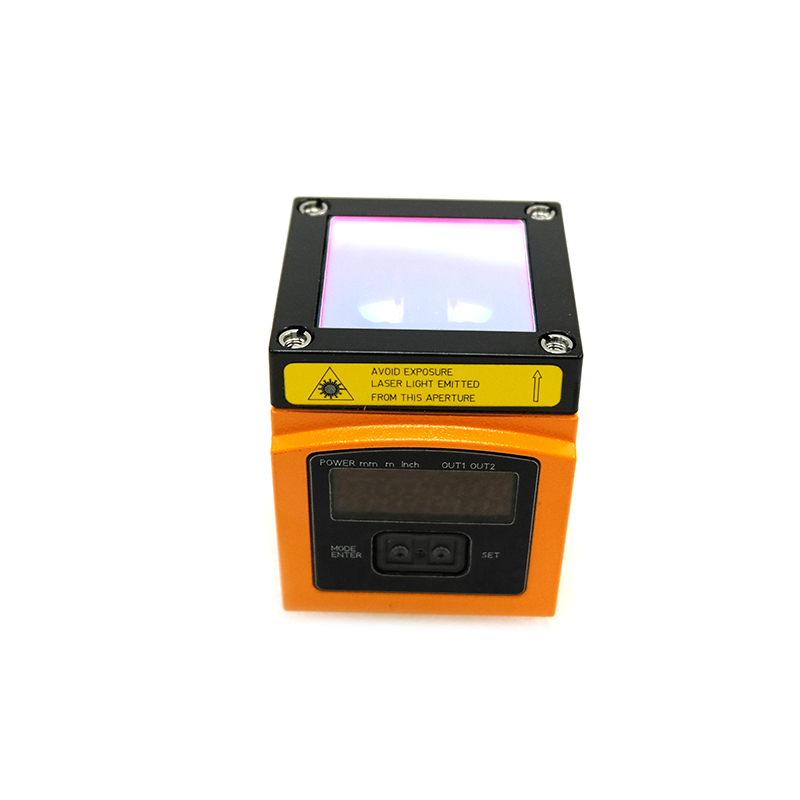

- Display & Operation: 4-digit display with LED status indication.
- Optional accessories: e.g. protective cover (E21133).

The sensor is known for its cost-effectiveness and reliability and is suitable for use in industrial automation where precise distance detection is required.
