SICK DT50-P2113

Key Parameters
- **Measuring Range**:
- 90% reflectivity: 200 mm ~ 20,000 mm (20 meters)
- 18% reflectivity: 200 mm ~ 8,500 mm
- 6% reflectivity: 200 mm ~ 5,000 mm
- Resolution: 1 mm
- Accuracy: ±7 mm (depending on ambient temperature)
- Response time: 15 ms ~ 80 ms (adjustable)
- **Output**: Analog (4-20mA/0-10V), Digital Switching (PNP/NPN), IO-Link
- **Protection Grade**: IP65/IP67, suitable for harsh industrial environment
- **Operating Temperature**: -30°C ~ 65°C.

Product Advantages
1. **High Accuracy & Stability**
- Patented HDDM (High Definition Distance Measurement) technology ensures measurement accuracy and repeatability (repeatability ≥ 1 mm).
- Detects natural objects (e.g. wood, metal, plastic, etc.) regardless of surface color or material.

2. **Flexible Output & Communication**
- Supports multiple output modes (analog, digital, IO-Link) for easy integration into PLCs or industrial control systems.
- The IO-Link interface supports remote parameter configuration and fault diagnosis to improve maintenance efficiency.

3. **Fast Commissioning & Ease of Use**

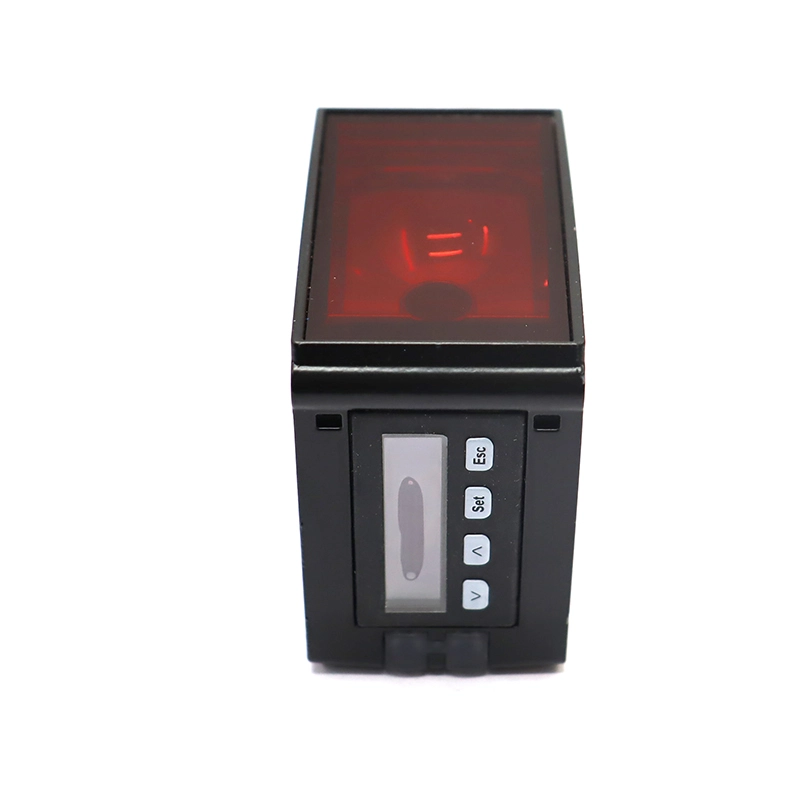

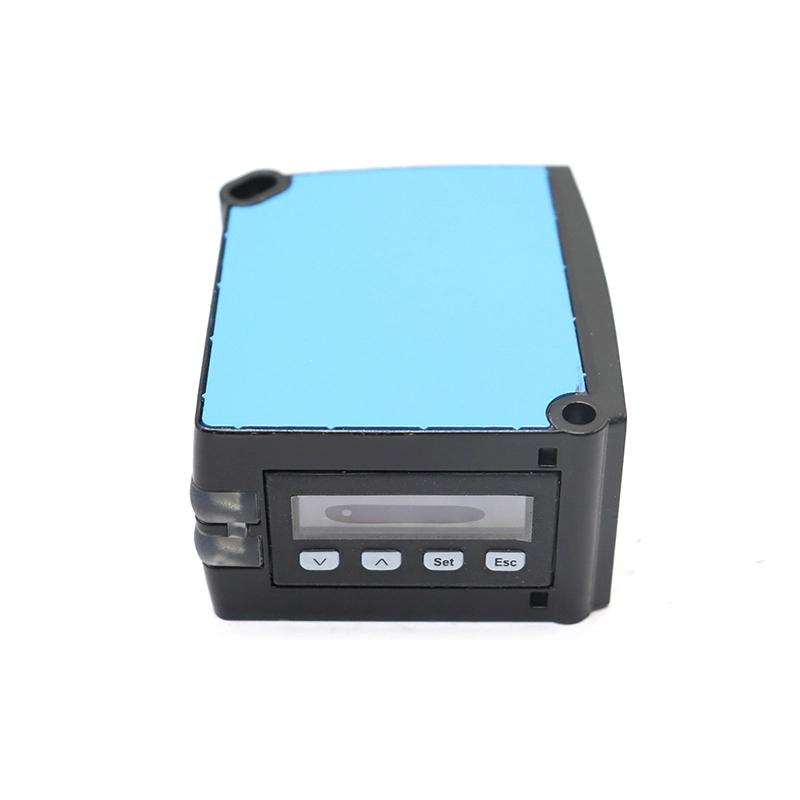

- LCD display and intuitive teach-in (Easy-Teach) simplify installation and calibration.
- Adjustable sliding average and hysteresis to adapt to different dynamic detection needs.

4. **Rugged and durable**
- Metal housing (die-cast zinc) and PMMA plexiglass protection for impact, dust and water resistance for harsh industrial environments.

5. **Long Life & Low Maintenance**
- Laser light source life up to 100,000 hours at 25°C reduces the frequency of replacement.

Main Uses and Application Scenarios
The DT50-P2113 is widely used in industrial automation scenarios that require accurate distance detection, including:
1. **Logistics & Warehousing**
- Stacker positioning, pallet height detection, AGV obstacle avoidance, etc.

2. **Manufacturing Automation**
- Robotic arm positioning, workpiece size inspection, and production line material placement monitoring.

3. **Transportation & Infrastructure**
- Tunnel height limit detection, vehicle position monitoring, bridge displacement measurement.

4. **Medical & Packaging Equipment**
- Pharmaceutical packaging height detection, conveyor belt object spacing control (in conjunction with other sensors).

5. **Other Industrial Scenarios**
- Displacement or position detection in woodworking, metallurgy, printing machinery, etc.


Summary
The DT50-P2113 is the sensor of choice for mid-range distance measurement due to its high accuracy, multiple output options, and industrial-grade protection design. Its flexible application adaptability and low maintenance costs make it play an important role in automated production lines, logistics systems and smart devices.

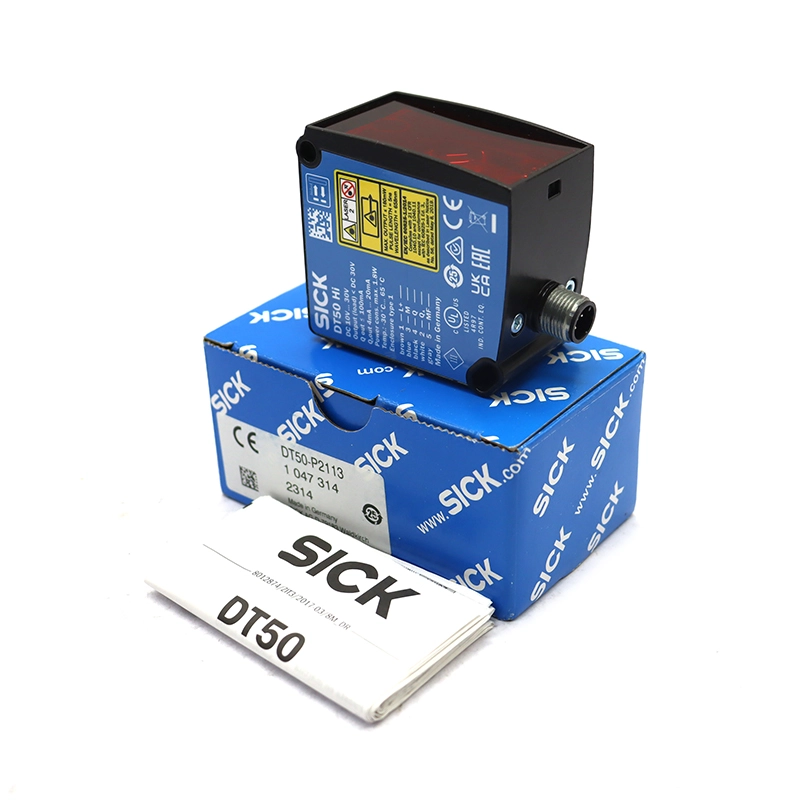

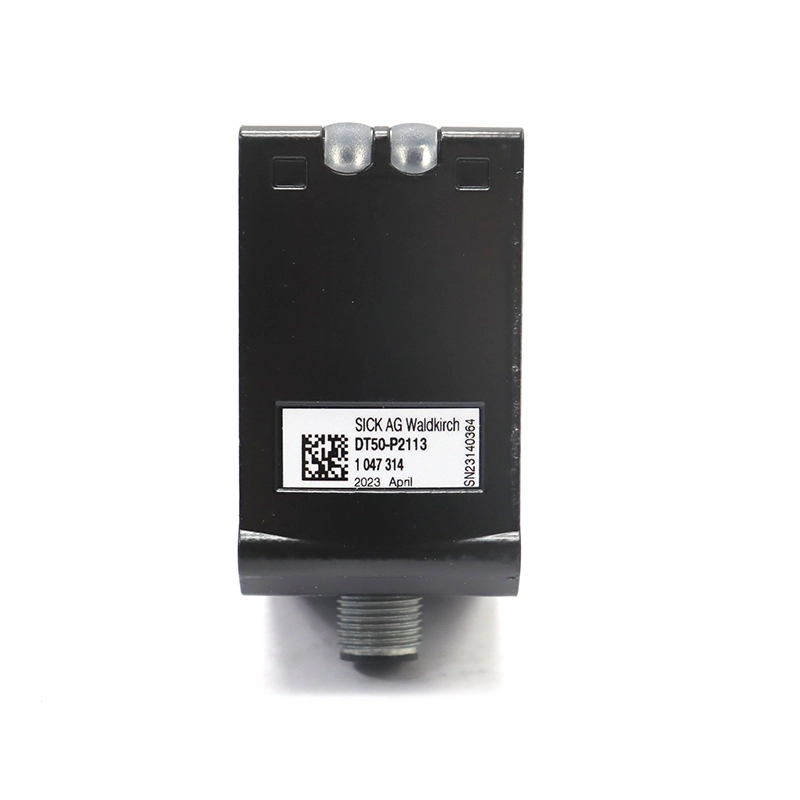

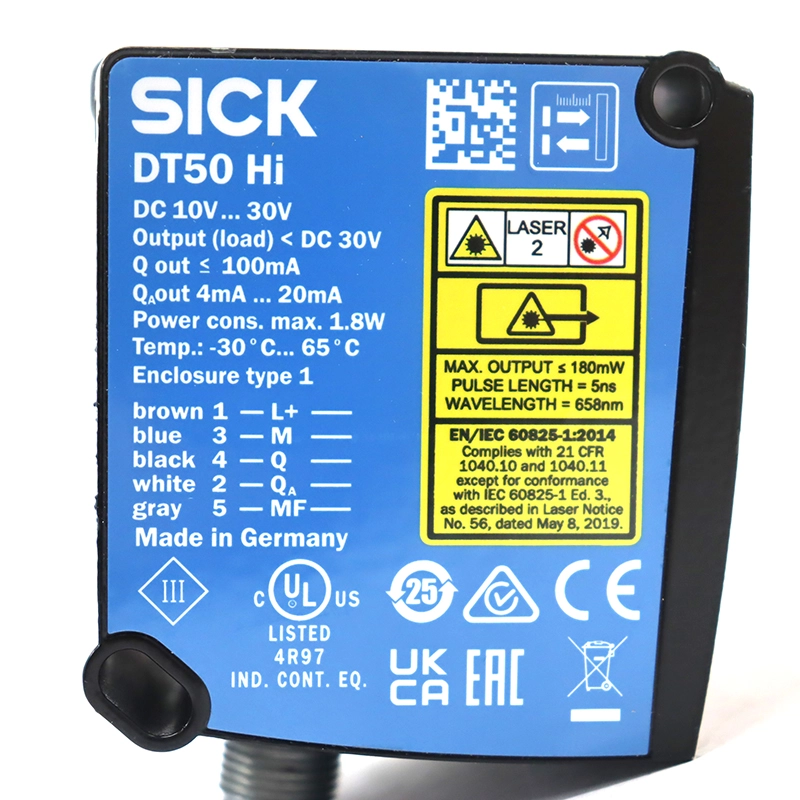

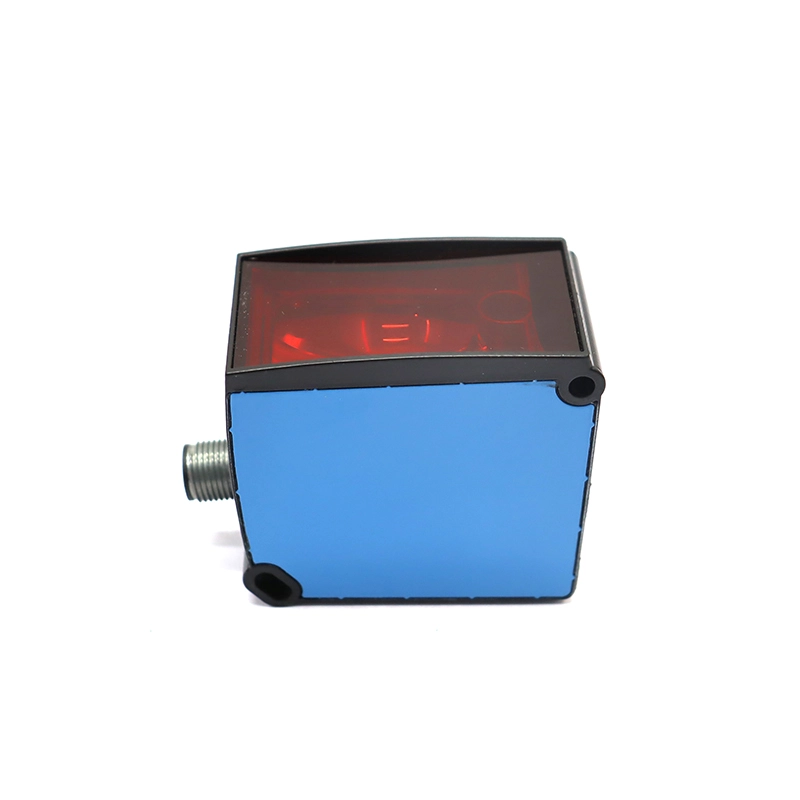

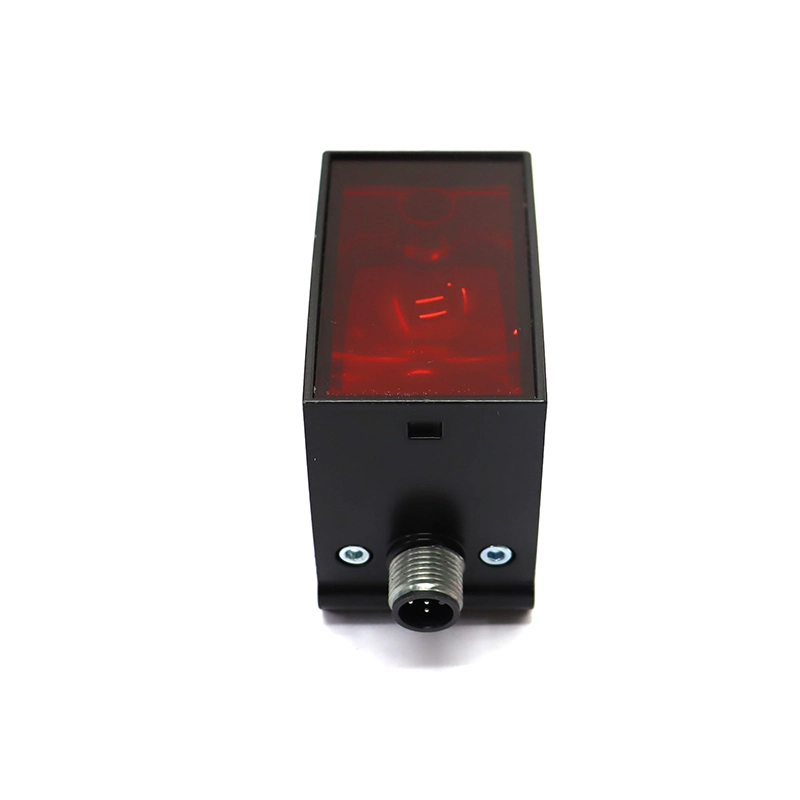

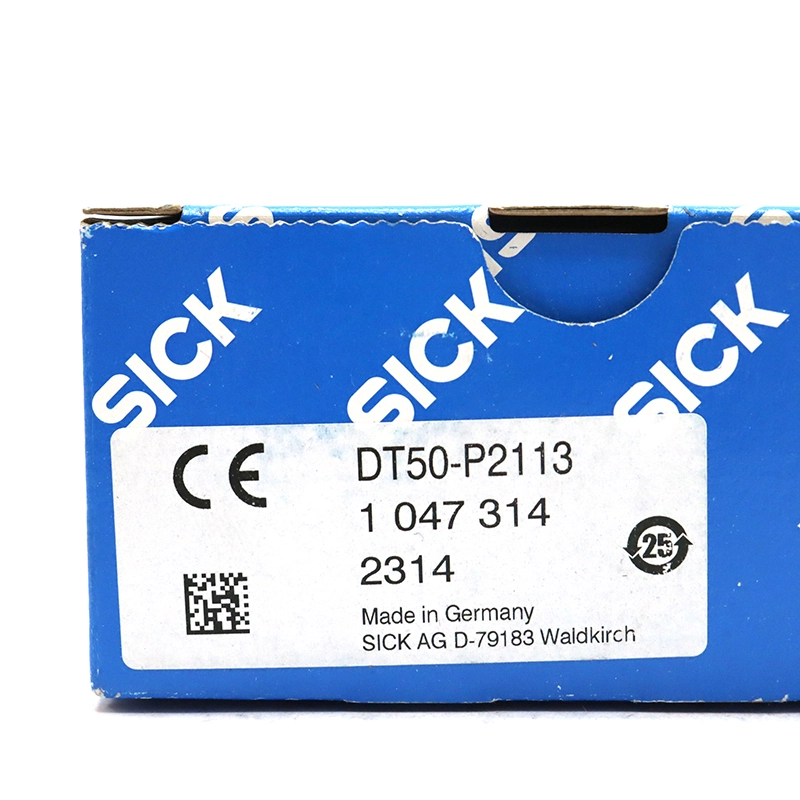

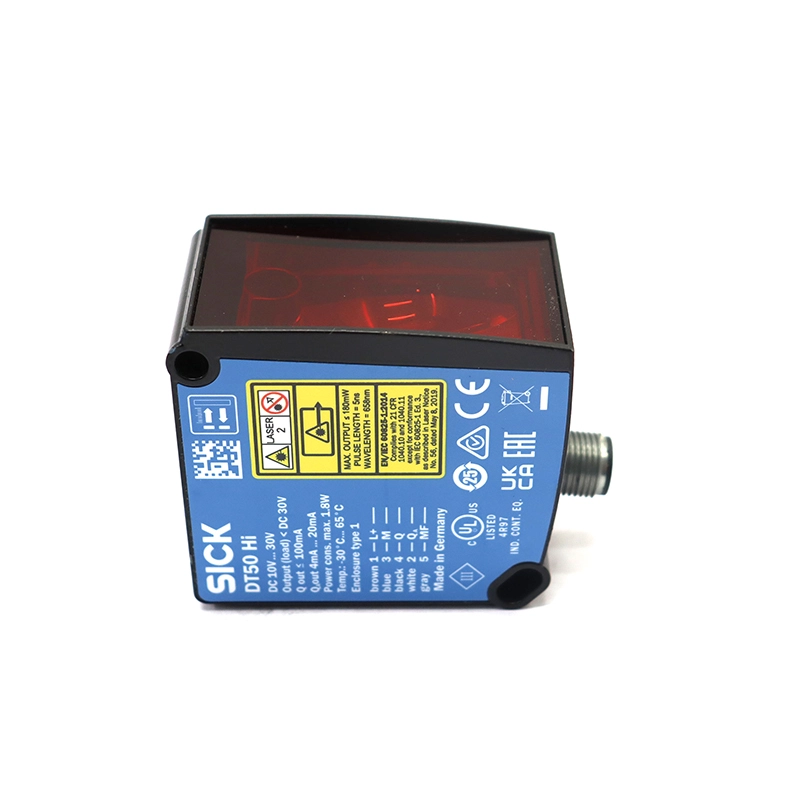

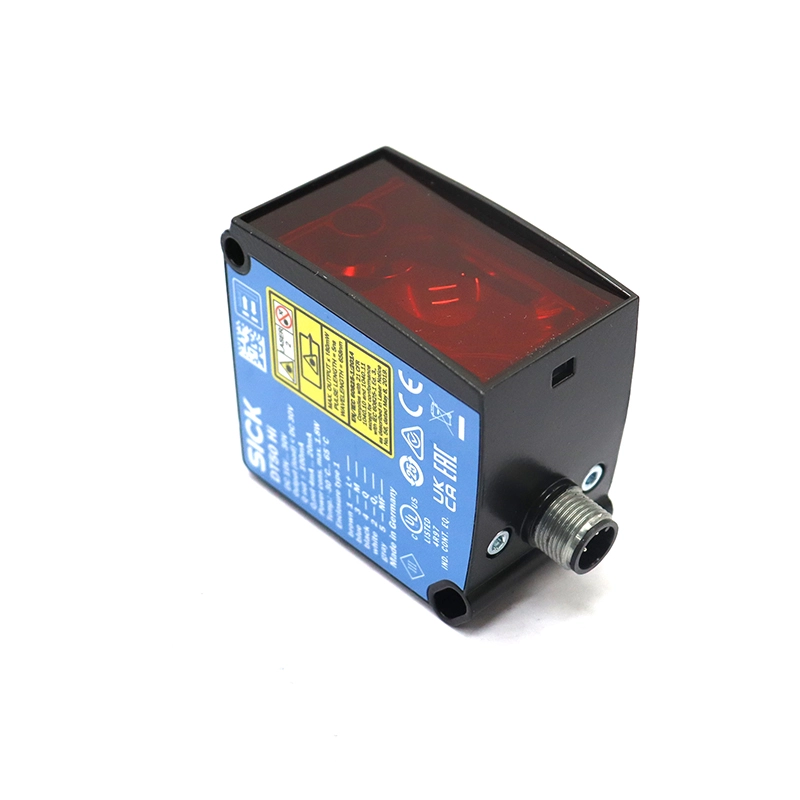

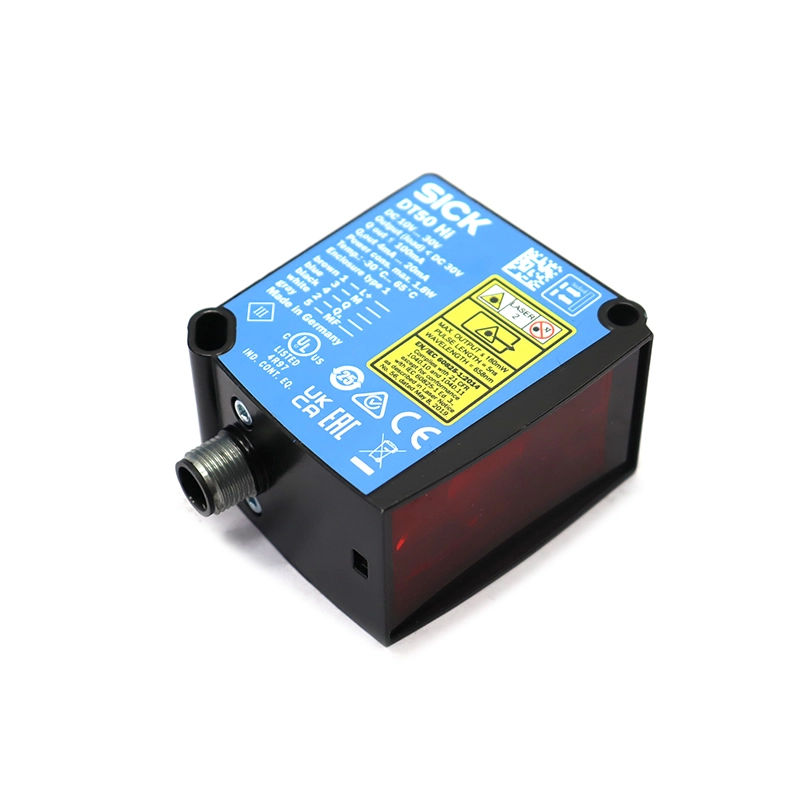

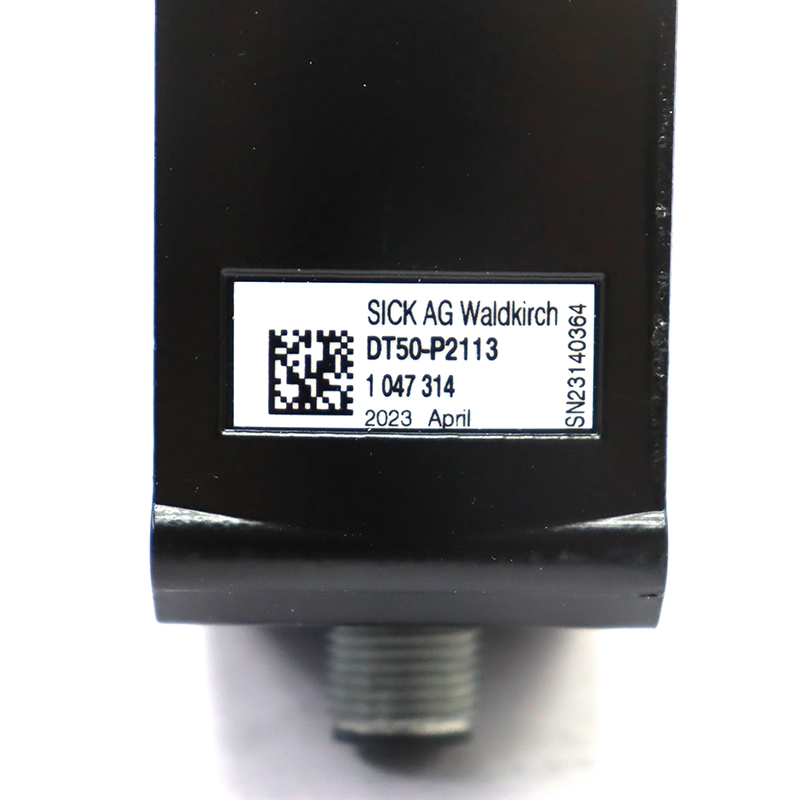

Details of SICK DT50-P2113
