Beckhoff KL9010

1. Basic Functions

- The KL9010 has no other functions or connectivity capabilities and is only used as an end module of the bus system to ensure the integrity of the data communication.

- A KL9010 must be installed on the far right of each bus terminal station to properly terminate the bus signal.

2. Technical Parameters

- Housing width: 12 mm, compact design, suitable for DIN rail mounting.

- Degree of protection: IP20, suitable for industrial environments.

- Operating temperature: -25°C to 60°C, storage temperature up to -40°C to 85°C.

- Certification: Comply with CE, UL, ATEX, IECEx and other international standards.

3. Compatibility

- Can be used with bus terminals from the KL9xxx series from Beckhoff, e.g. KL9180, KL9195, etc.

- Pluggable wiring for easy on-site installation and maintenance.

KL9010 Application Scenarios

The KL9010 is mainly used in industrial automation control systems, especially in applications where distributed I/O signal acquisition and bus communication are required. The following are its main application areas:

1. Industrial automation control

- In PLC (programmable logic controller) and distributed I/O systems, KL9010 is used as a bus terminal module to ensure the stability of signal transmission, and is suitable for factory production lines, robot control and other scenarios.

2. Intelligent manufacturing and equipment monitoring

- In smart factories, KL9010 can be used for equipment condition monitoring, data acquisition, etc., to ensure the efficient operation of automation systems.

3. Energy & Power Systems

- In power monitoring and energy management systems, the KL9010 can be combined with EtherCAT systems from Beckhoff for high-precision data acquisition and control.

4. Transportation & Aerospace

- It is suitable for distributed control systems in rail transit, aerospace and other fields to ensure the reliability of signal transmission.

5. Building automation

- In intelligent building control systems, the KL9010 can be used to integrate various sensors and actuators for centralized management.

summary

As a key component of the Beckhoff bus terminal system, the KL9010 is mainly used to ensure the integrity of bus communication and is suitable for industrial automation, smart manufacturing, energy management and many other fields. Its compact design, high compatibility and stable performance make it ideal for distributed control systems.

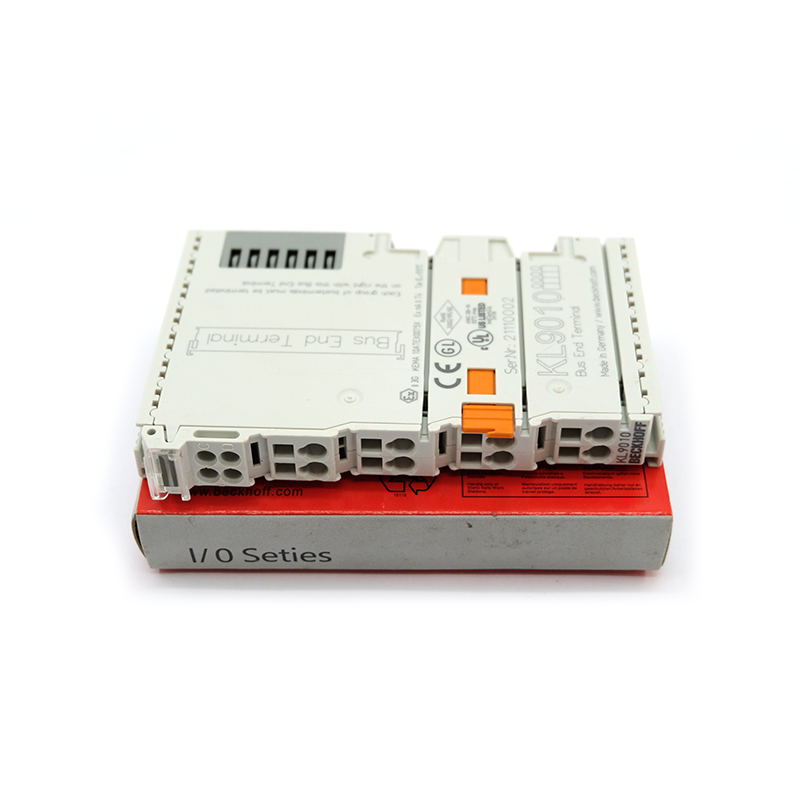

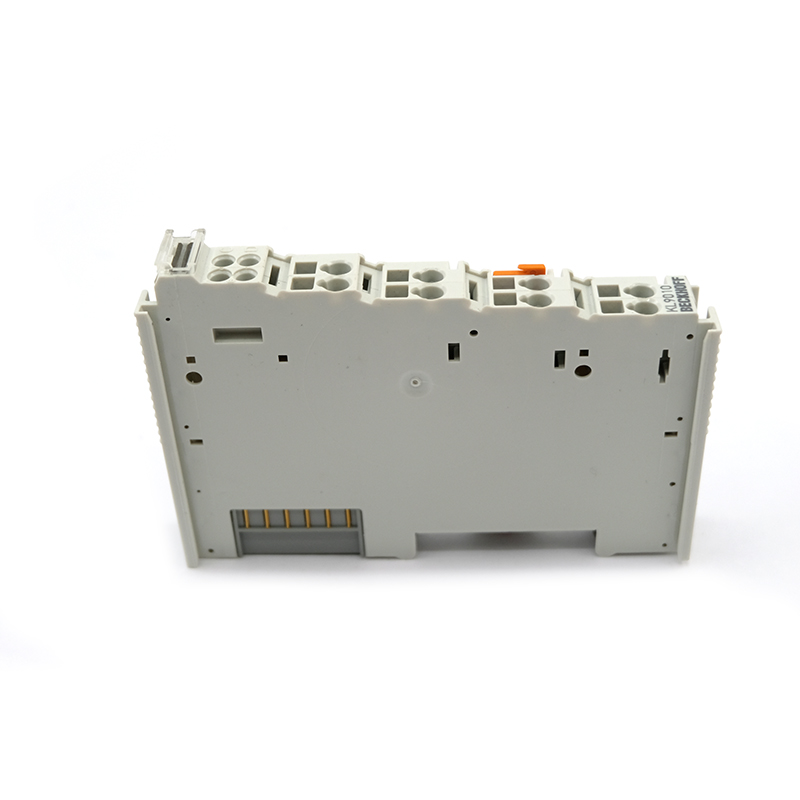

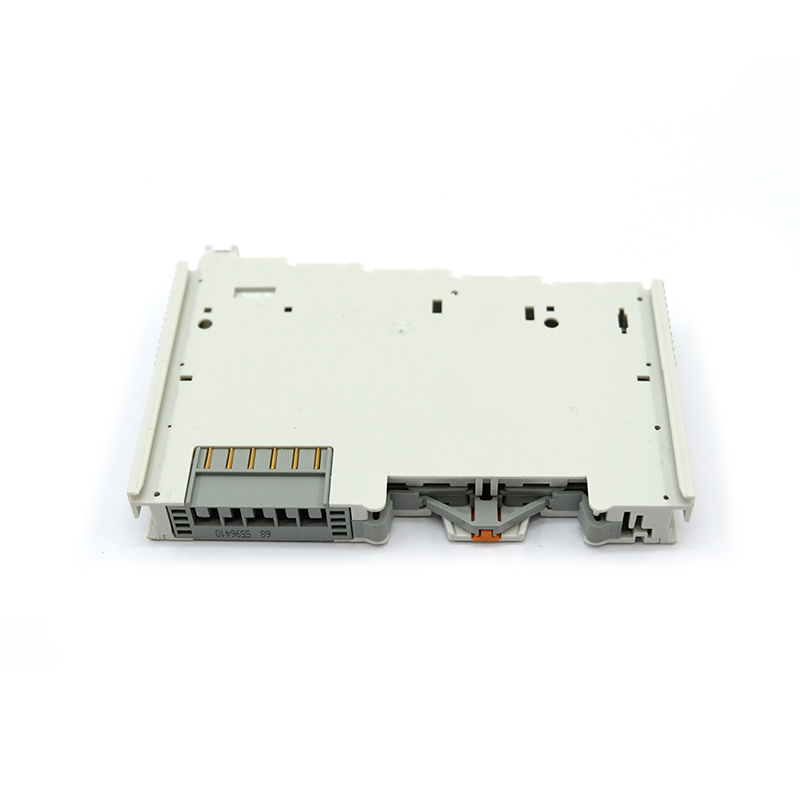

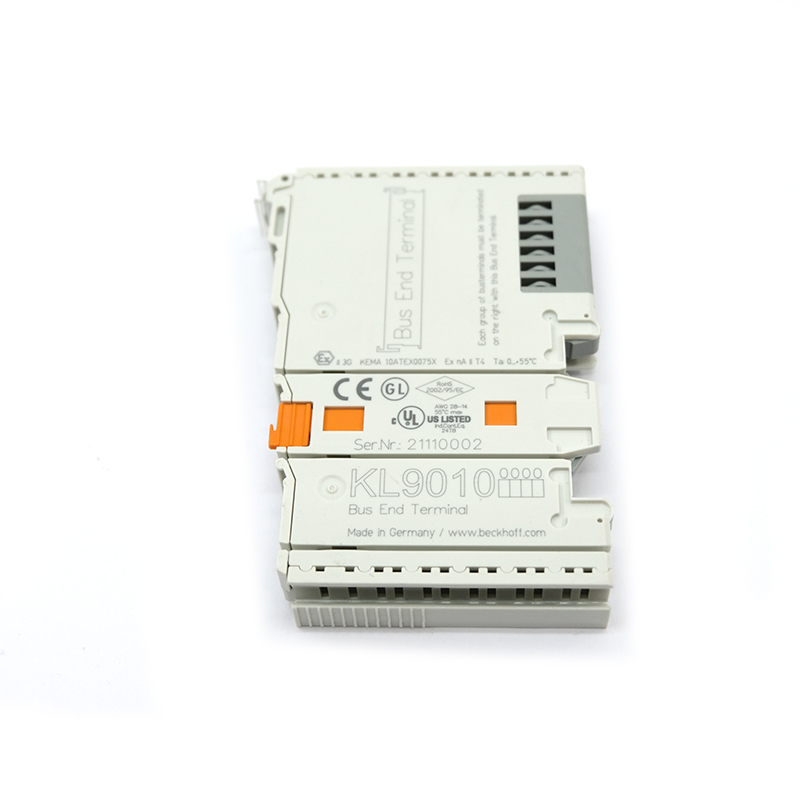

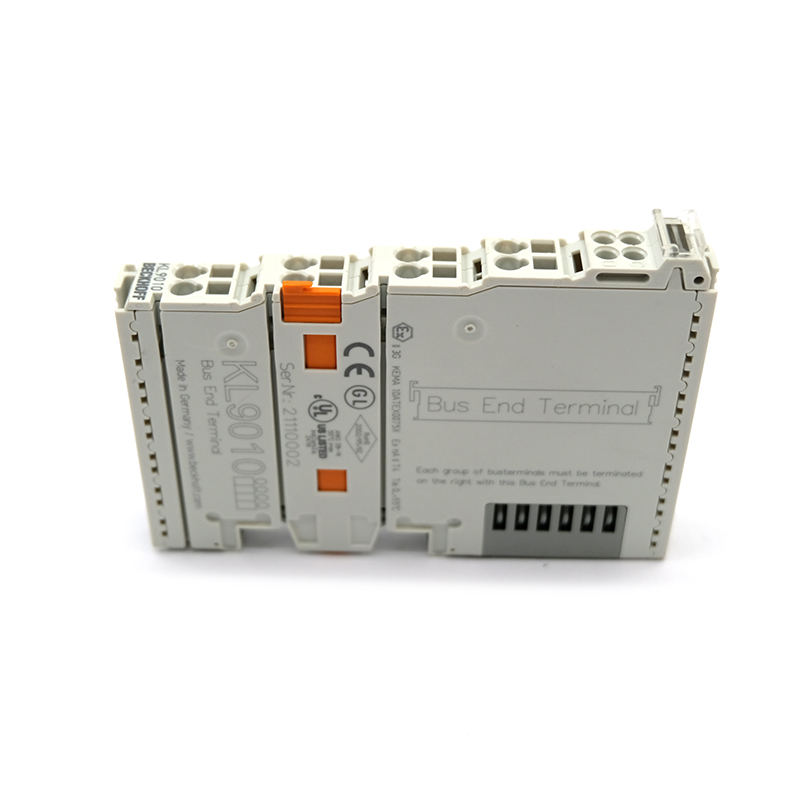

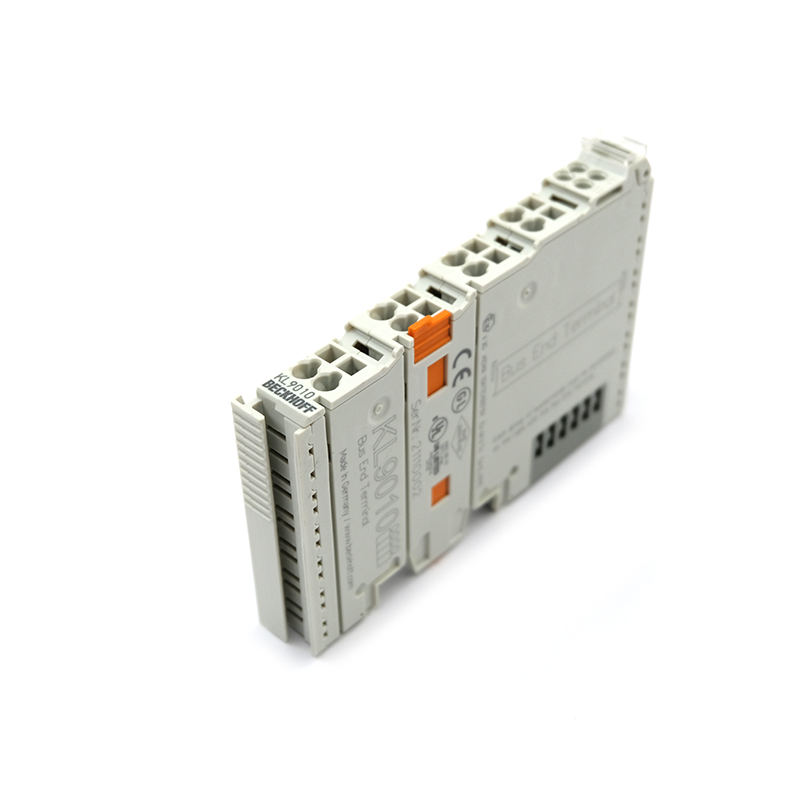

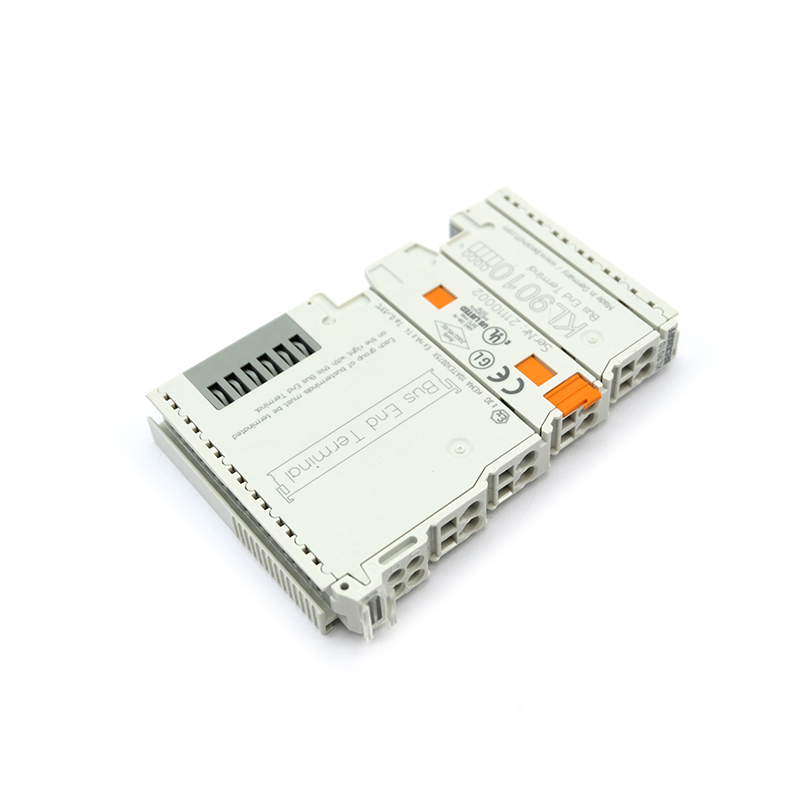

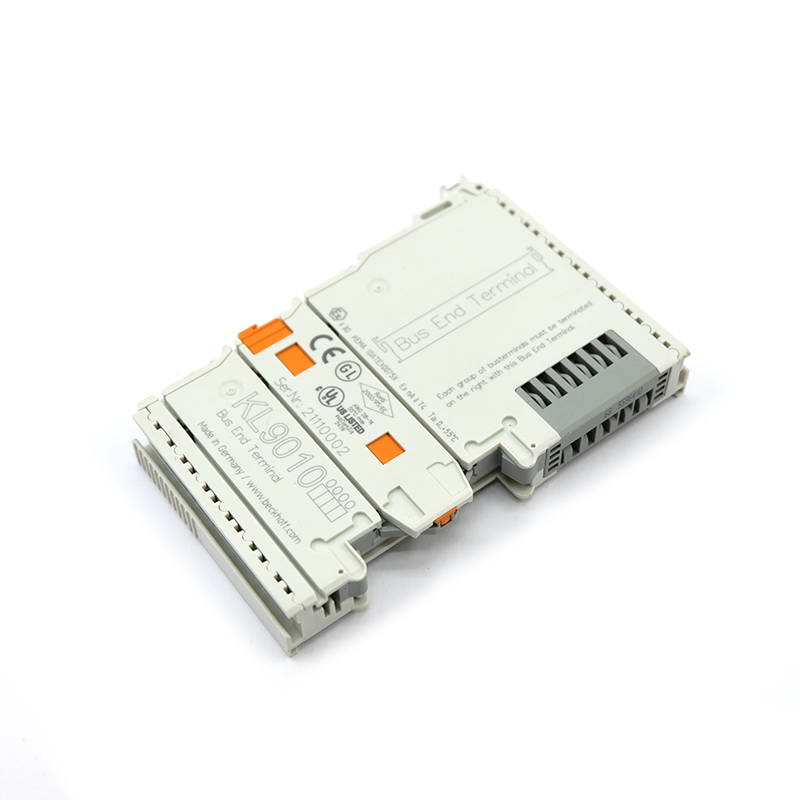

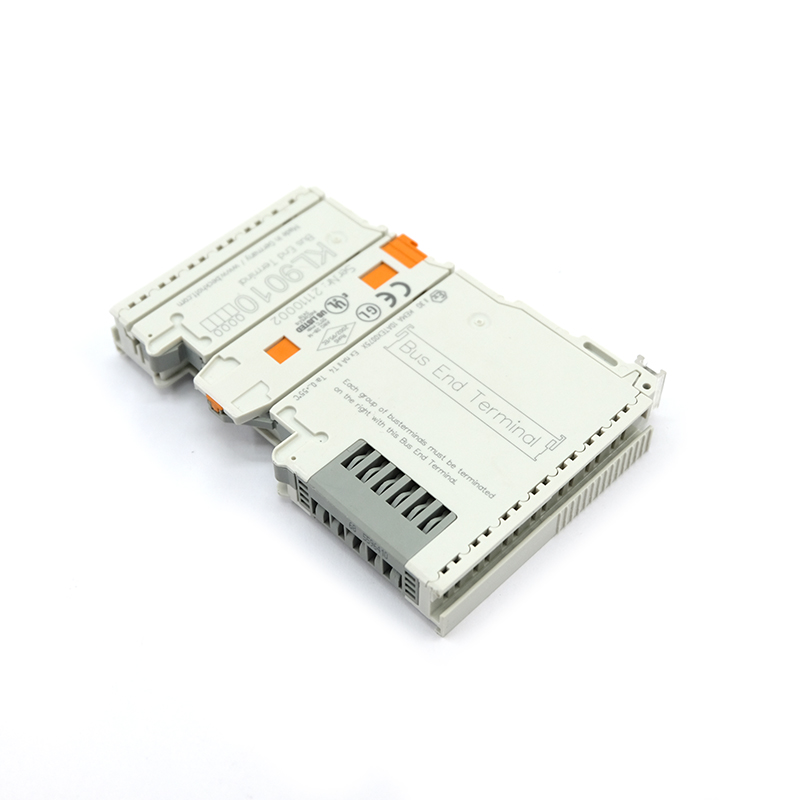

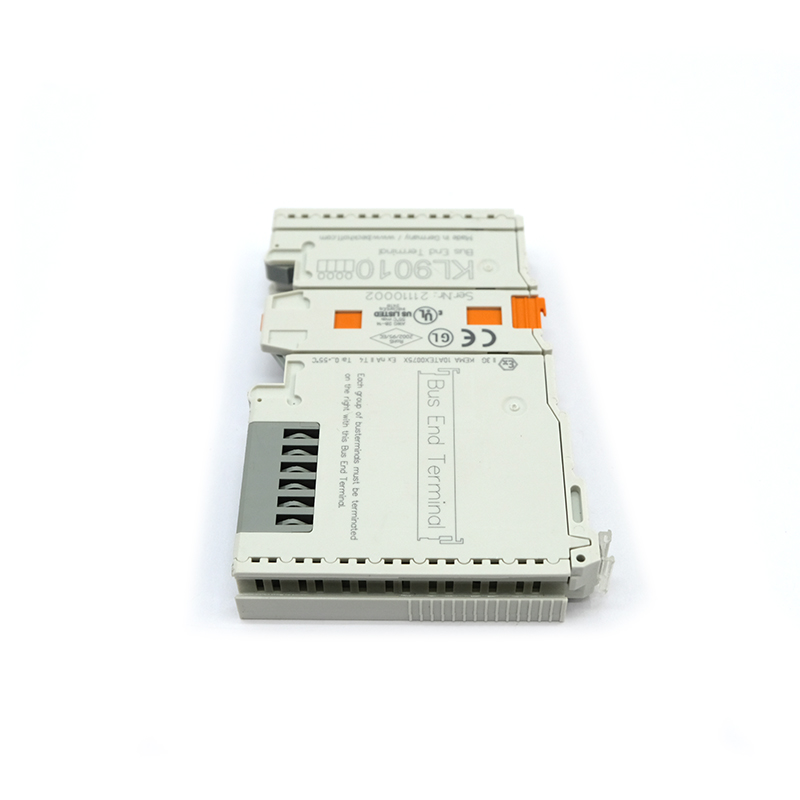

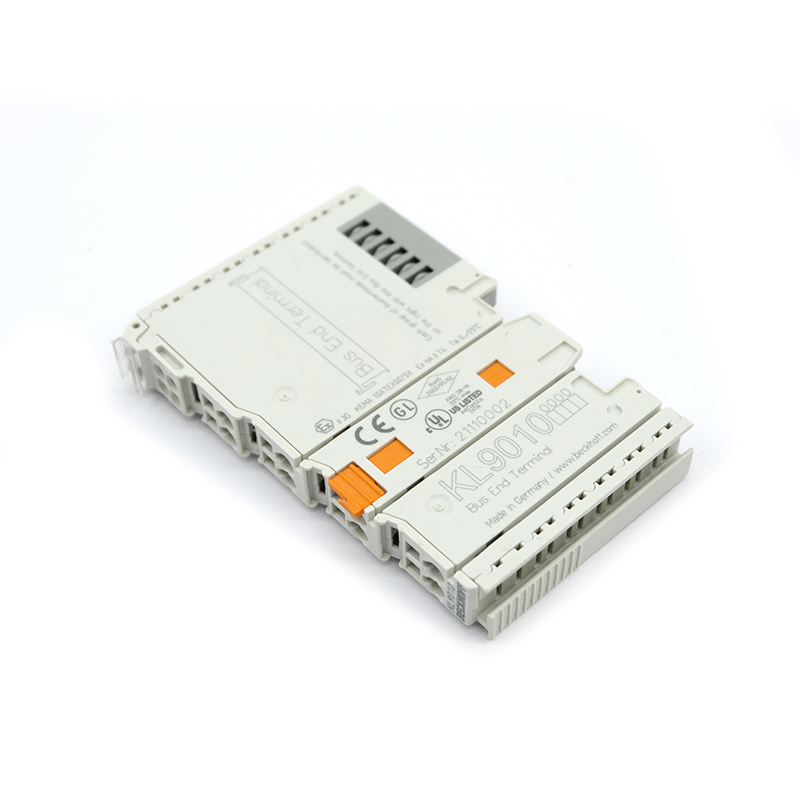

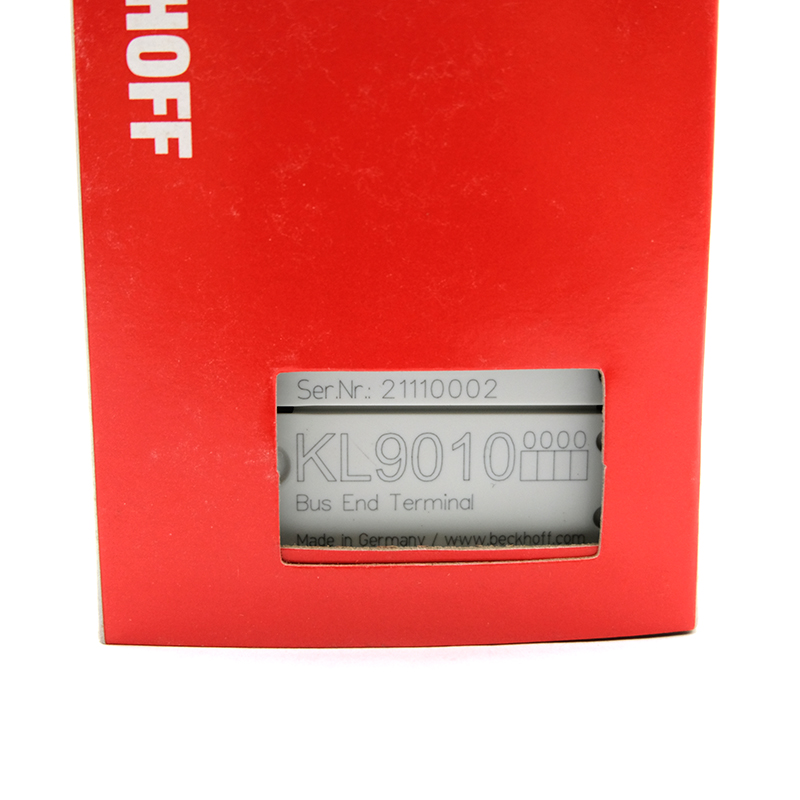

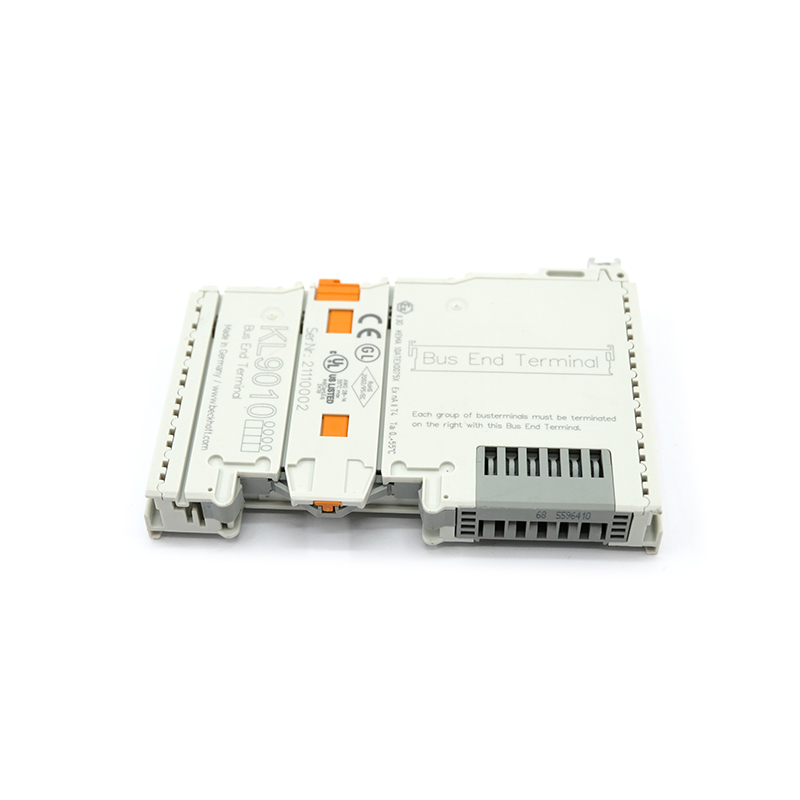

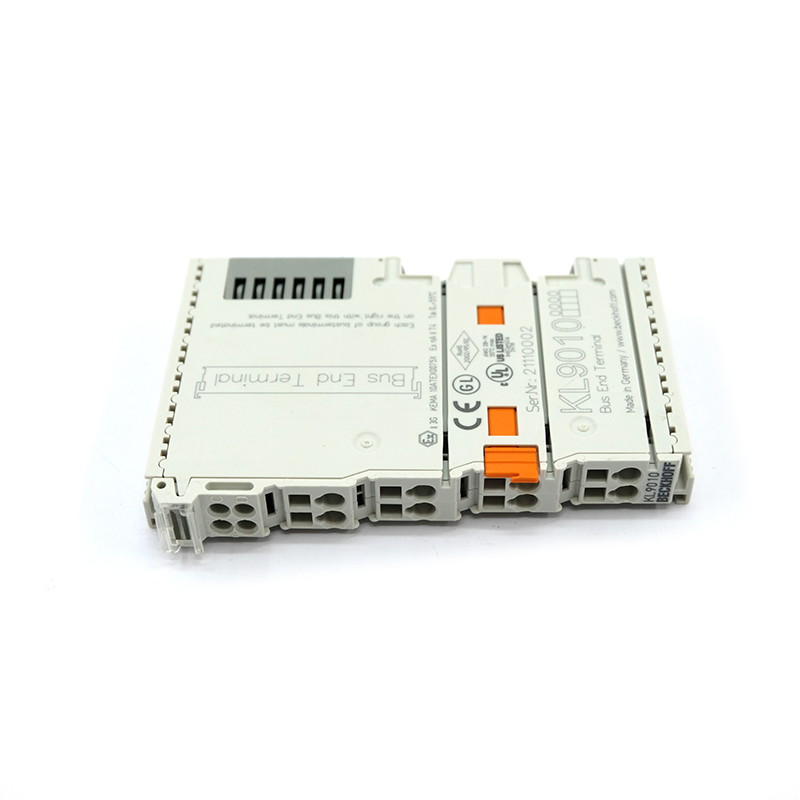

Details of Beckhoff KL9010
