Siemens 6GK1503-3CC00

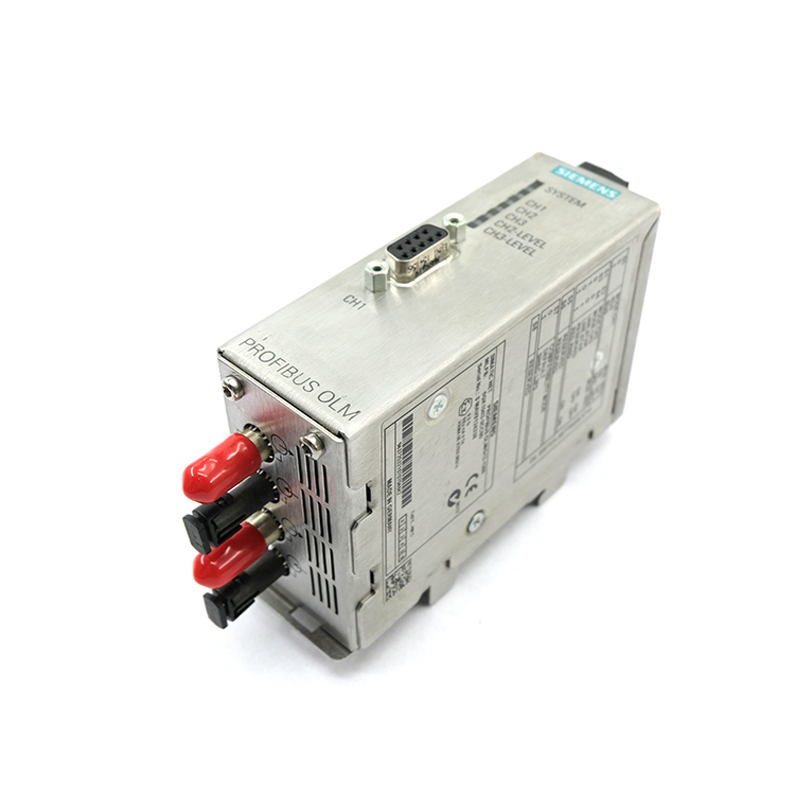

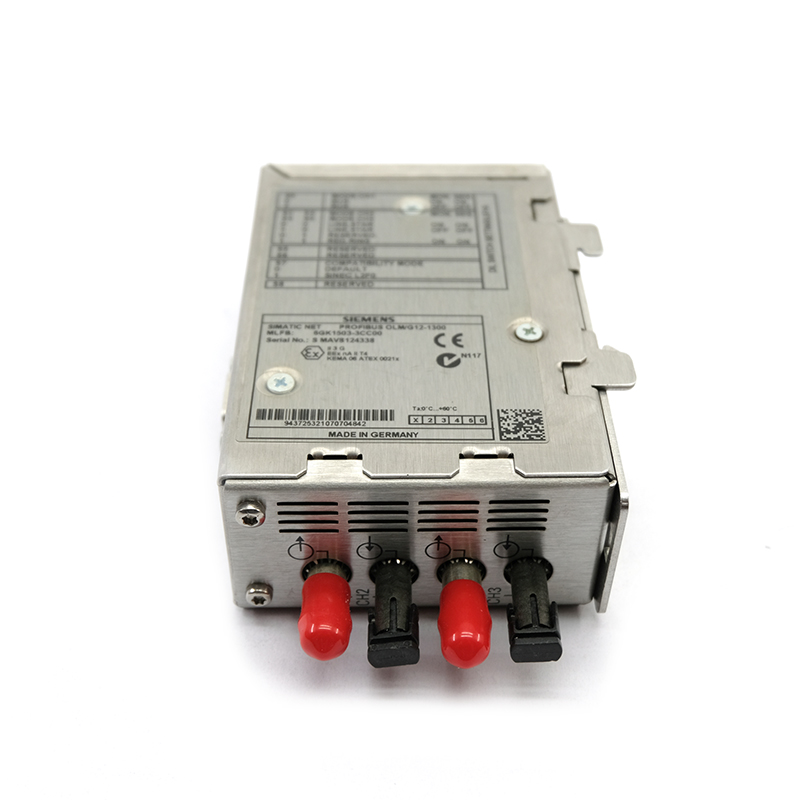

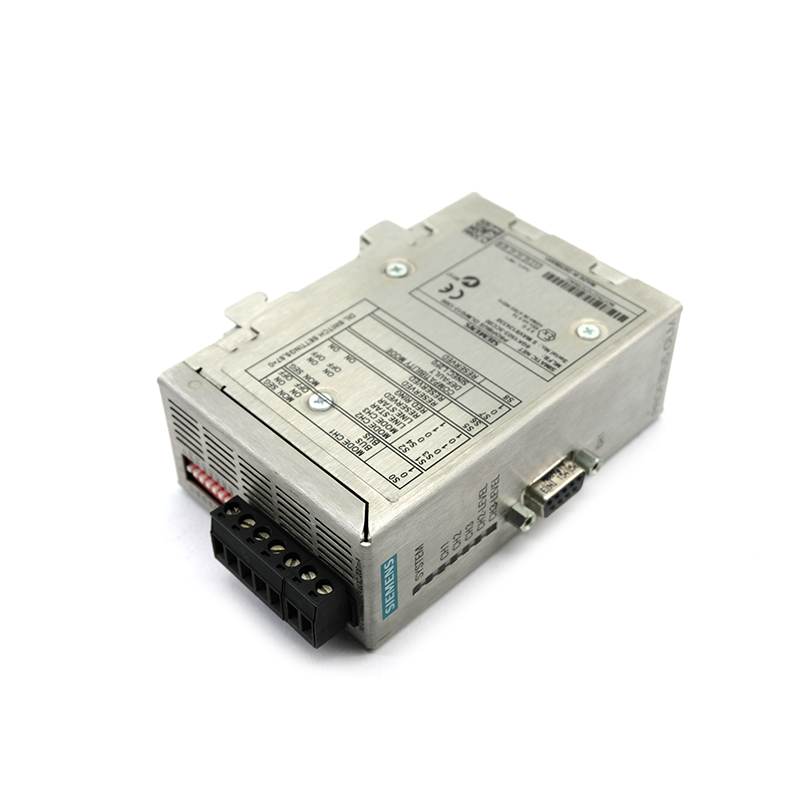

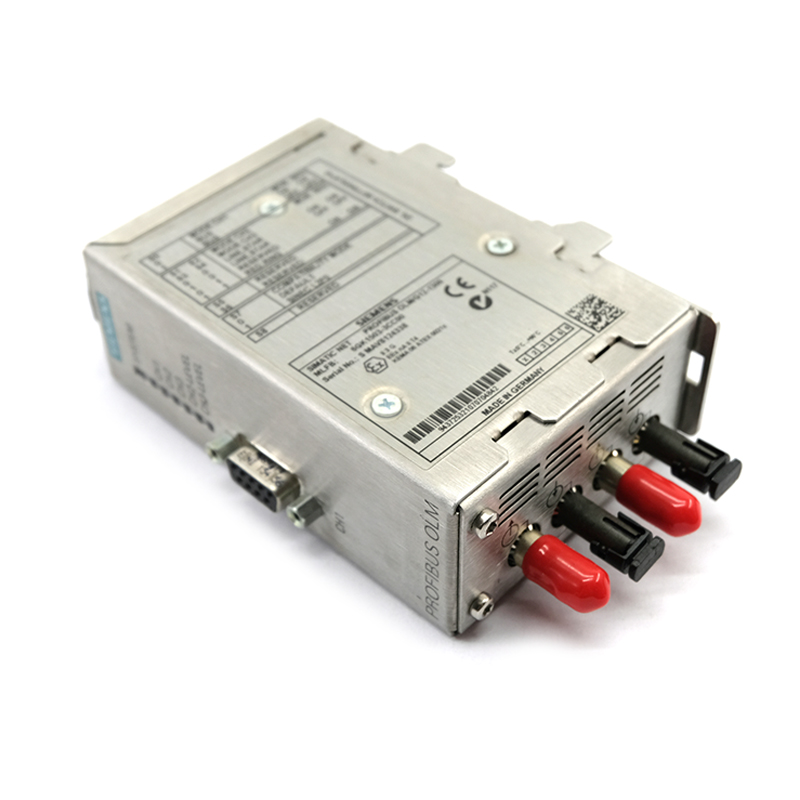

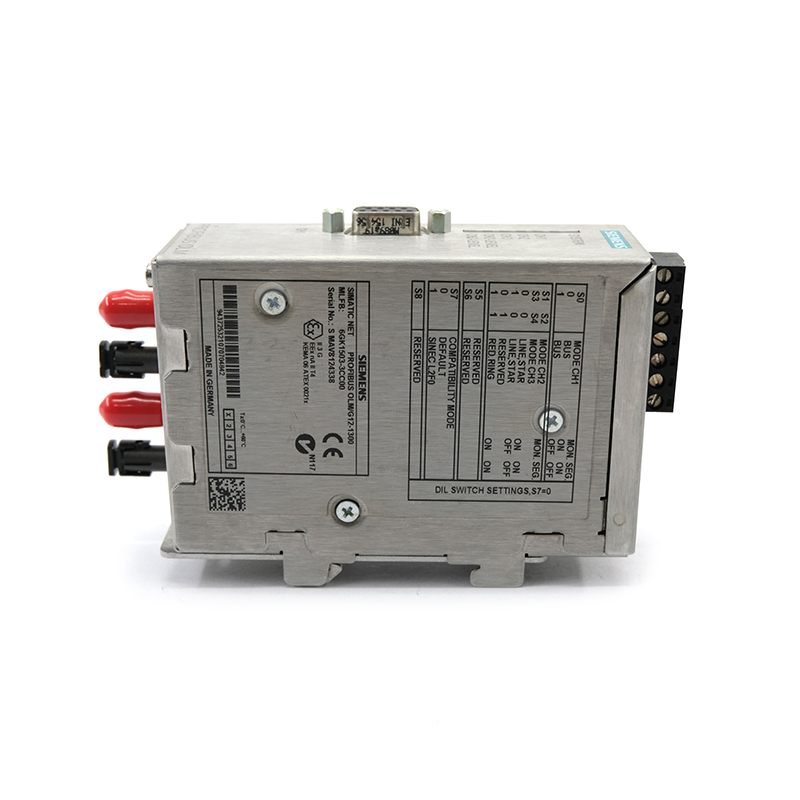

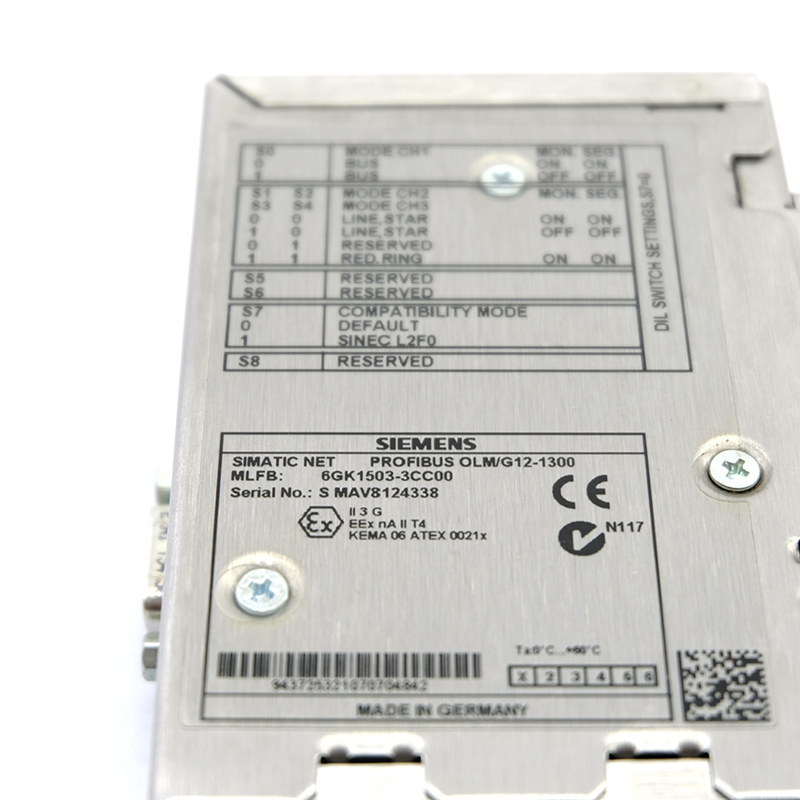

6GK1503-3CC00 IS A PROFIBUS OPTICAL FIBER LINK MODULE (OLM/G12-1300 V4.0) LAUNCHED BY SIEMENS, WHICH IS MAINLY USED FOR OPTICAL FIBER SIGNAL CONVERSION AND TRANSMISSION IN INDUSTRIAL AUTOMATION COMMUNICATION NETWORKS. Here are its main features and technical parameters:

1. Key features
Fiber Optic Communication Support:

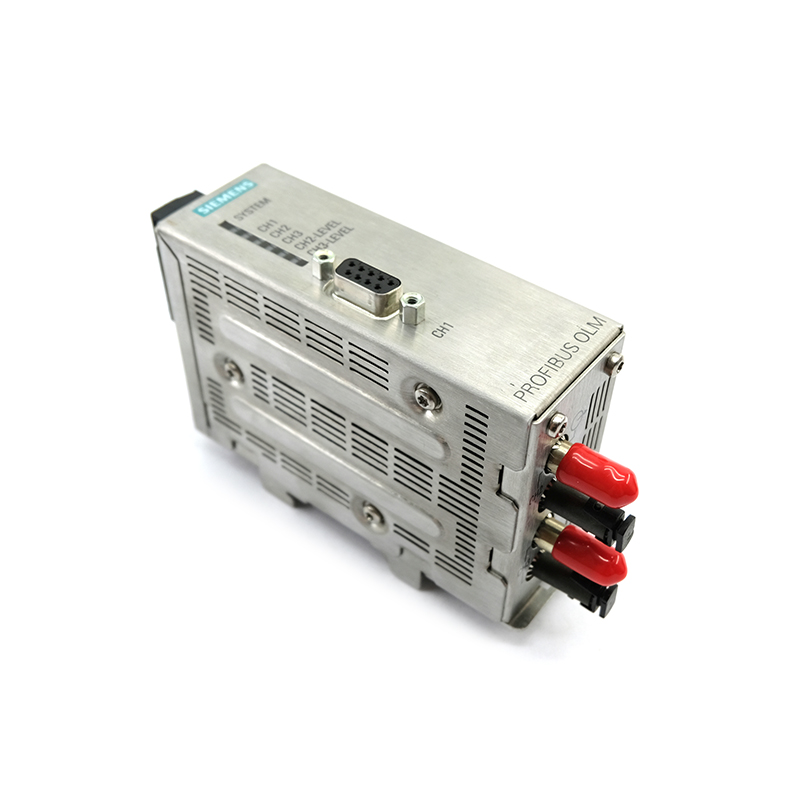

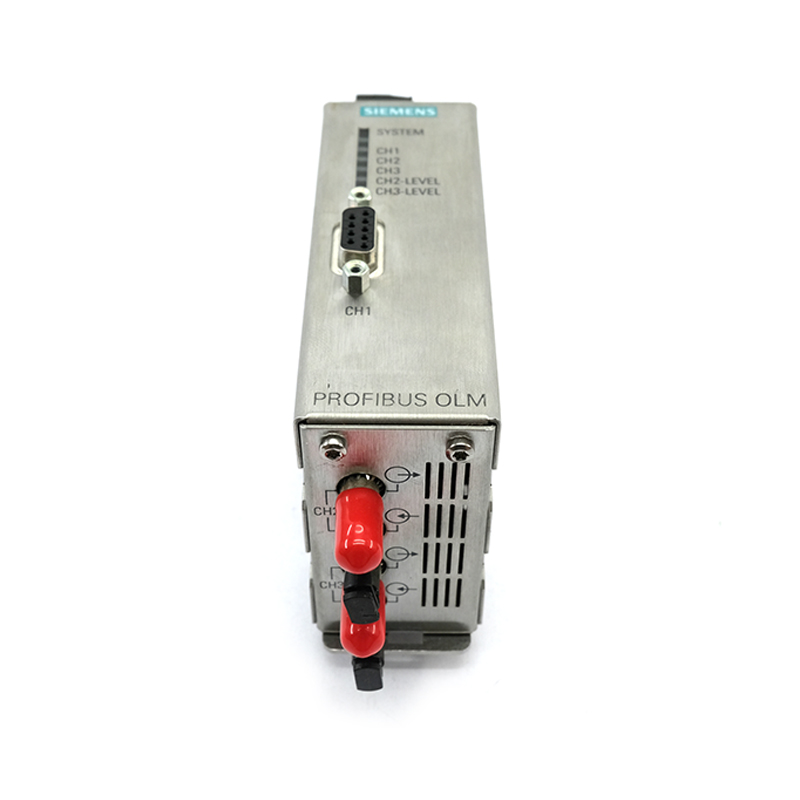

- 1 RS-485 electrical interface and 2 optical waveguide interfaces (4 BFOC sockets) are provided to support PROFIBUS DP/PA communication.
- Suitable for single-mode fibers (10/125 μm or 9/125 μm) with a maximum transmission distance of up to 15 km.
Network topology support:
- Supports multiple network topologies, such as bus, star, and redundant rings, to improve network availability.
Redundant design:
- Support power redundancy and ring network redundancy to ensure high reliability of industrial communication.

2. Technical Parameters
Transmission Rate:
- PROFIBUS DP：9.6 kbit/s ~ 12 Mbit/s
- PROFIBUS PA：45.45 kbit/s。
Interface Specifications:

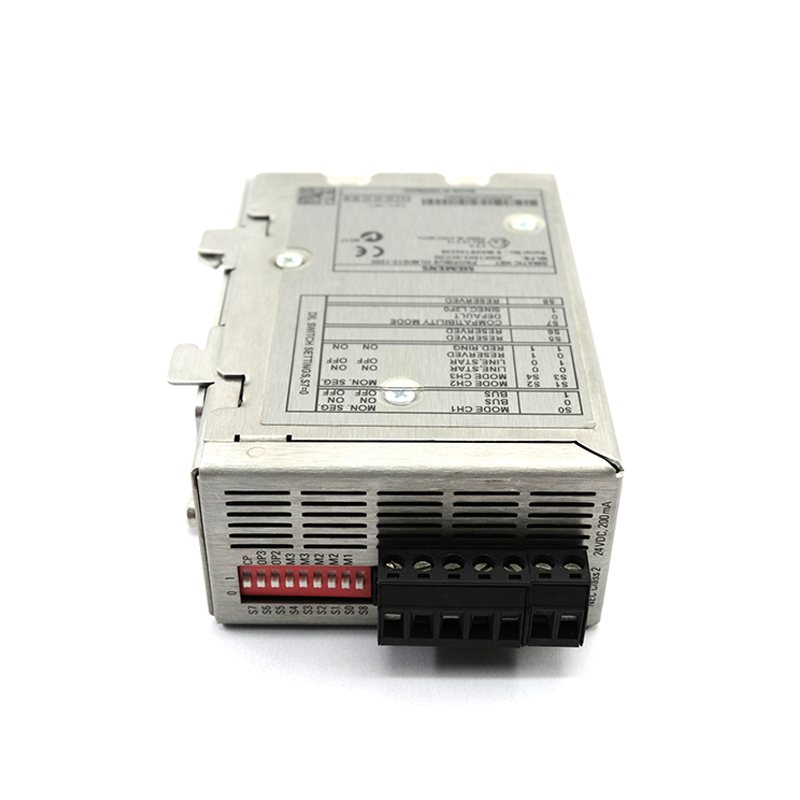

- Electrical interface: 9-pin Sub-D socket (RS-485)

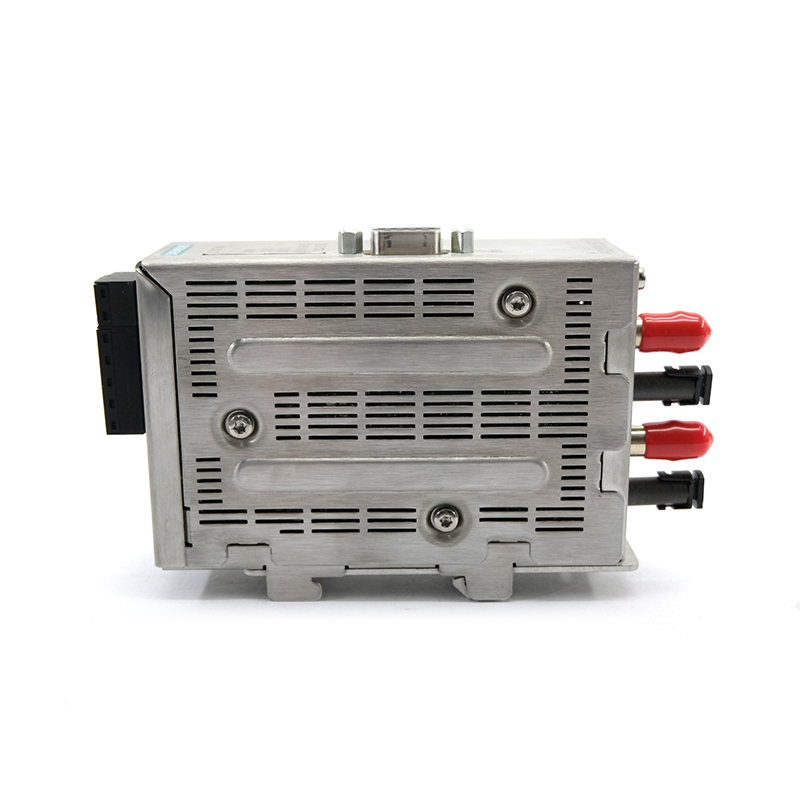

- Fiber interface: BFOC port (supports single-mode/multi-mode fiber).
Power Supply Requirements:
- 24V DC (range: 18.8~28.8V), support redundant power input.
Environmental Adaptability:
- Operating temperature: 0~60°C
- Degree of protection: IP40
- Suitable for industrial environments, in line with CE, UL, CSA and other certifications.

3. Application scenarios
- Industrial automation networks: such as factory automation, process control, etc.
- Long-distance communication: such as tunnel monitoring, traffic control systems, etc.
- High-reliability networks: such as power systems, petrochemical industries, and other occasions that require redundant communication.

4. Product Advantages
- Long-distance transmission: Single-mode fiber supports 15 km communication.

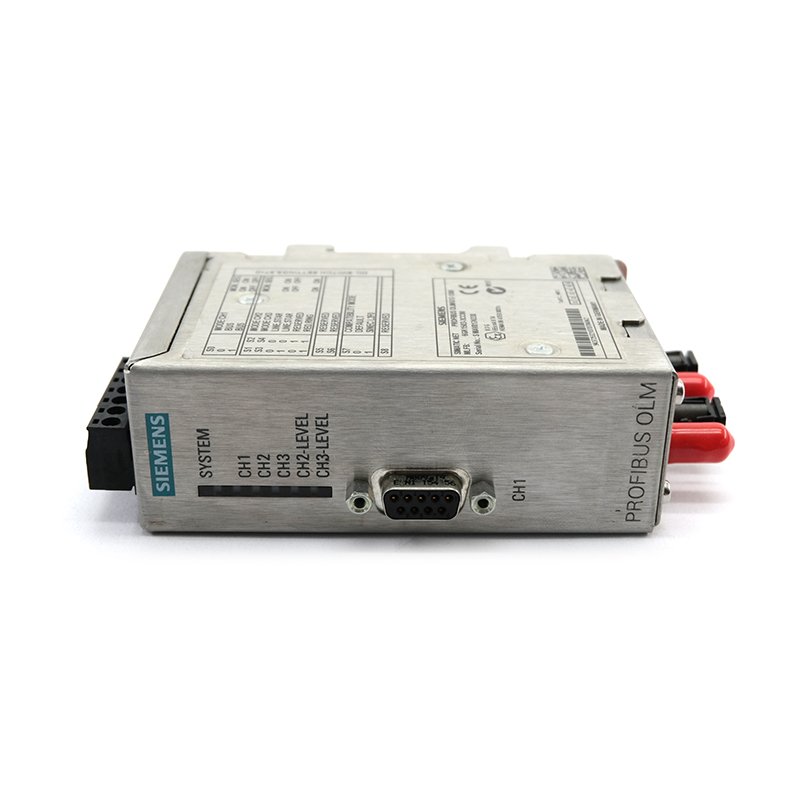

- Fast fault diagnosis: Real-time monitoring via LED indicators and signal contacts.

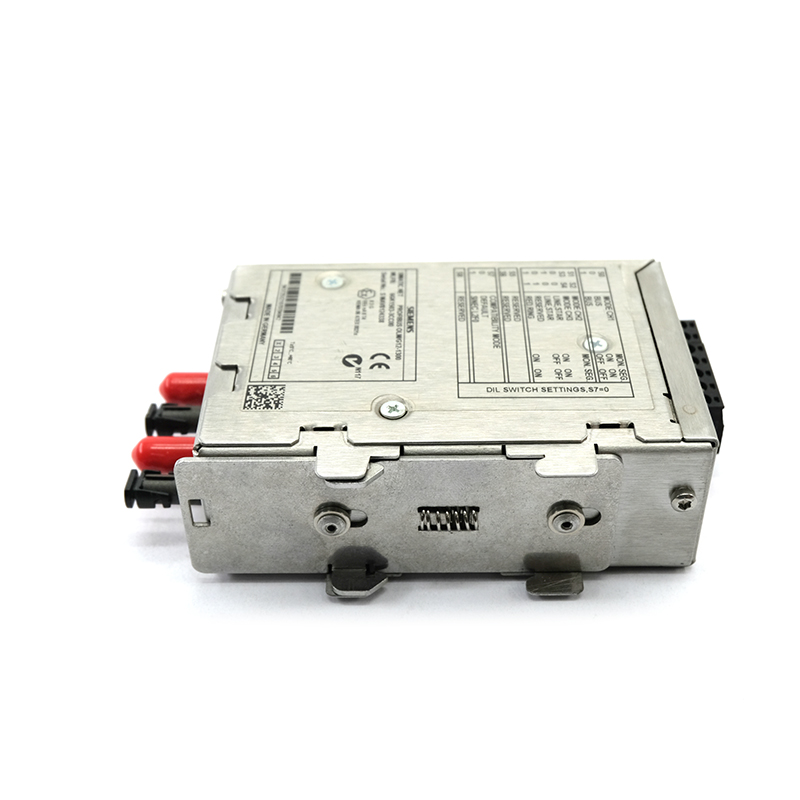

- Modular design: Supports DIN rail mounting for easy integration.
