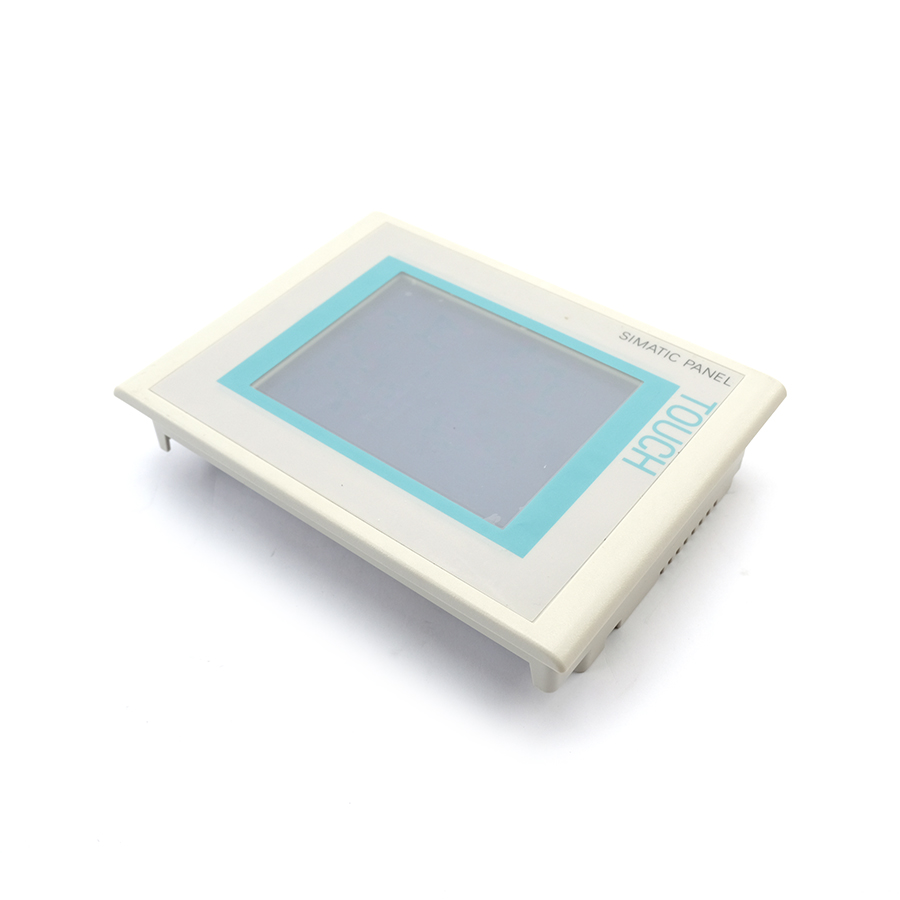

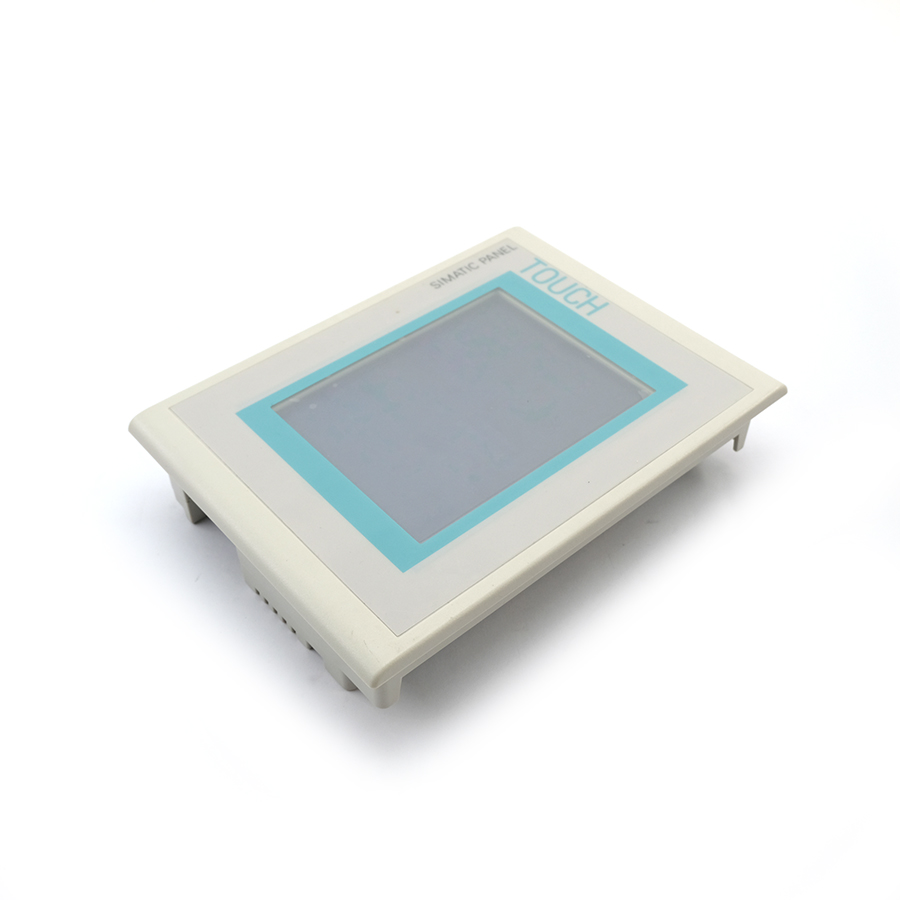

Siemens 6AV6642-0BC01-1AX1

1. Basic parameters

- Brand: SIEMENS

- Model: 6AV6642-0BC01-1AX1

- Display: 5.7-inch STN monochrome blue-level display

- Resolution: 320×240 pixels

- Touch screen type: Analog resistive touch screen

- Power supply voltage: DC 24V

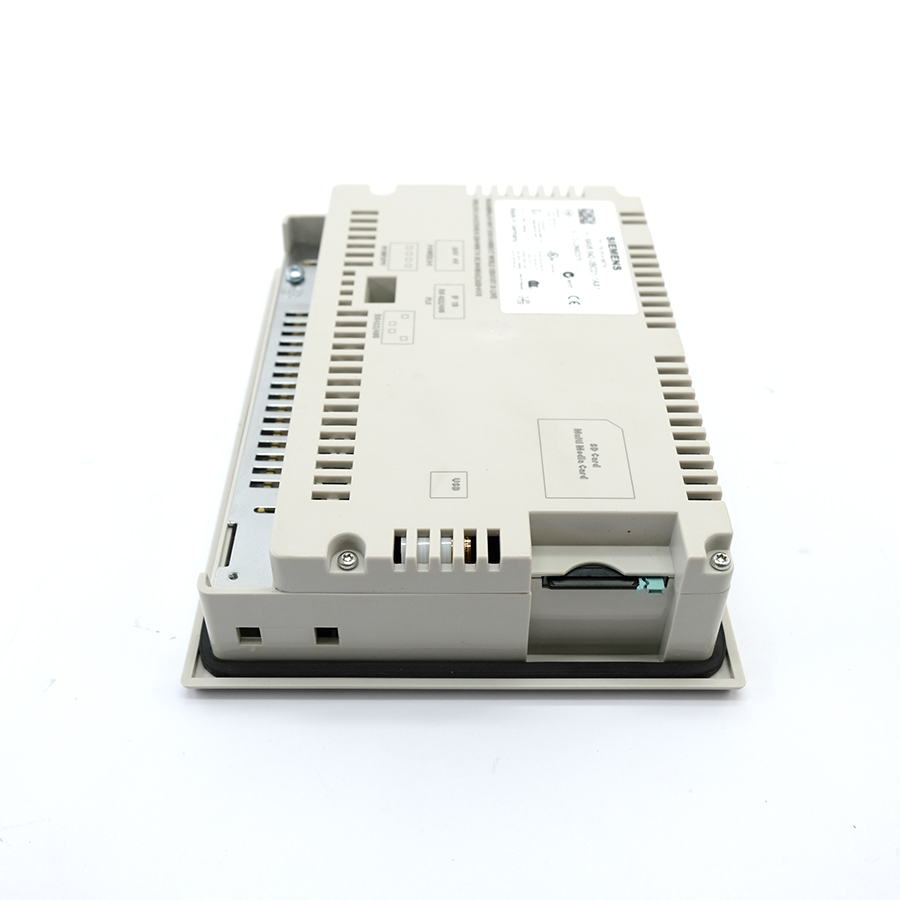

- Communication interface: RS422/RS485, USB, MPI/PROFIBUS DP protocol

- Processor: ARM 200 MHz

- User Storage: 2MB Flash

- Operating temperature range: 0°C ~ 60°C (some data shows -30°C ~ 60°C)

2. Key features

- High reliability industrial design: PC ABS alloy material, high temperature resistance, corrosion resistance, suitable for industrial site environment.

- Energy-saving: LED backlight technology is more energy-efficient than traditional CCFLs, with viewing angles of up to 140°.

- Strong Communication Capabilities:

- Supports PPI communication protocol for seamless connection with Siemens S7-200 PLCs.

- Compatible with mainstream PLCs such as Mitsubishi FX series and Omron CP1 series.

- Hardware configuration:

- 400MHz ARM processor and 64MB DDR memory ensure smooth screen switching and data processing.

- Built-in 24V electronic resettable reverse polarity protection to prevent miswiring from damaging the device.

- Configuration software support: Configurable design via WinCC Flexible 2005.

3. Application scenarios

- Suitable for small automatic control systems, such as mechanical equipment control, production line monitoring, etc.

- Can be used with Siemens S7-200/300/400 PLCs to build cost-effective HMI solutions.

- Widely used in manufacturing, energy management, building automation and other fields.

4. Substitution and Upgrade

This model belongs to the earlier first-generation Lite Panel, and Siemens has launched the second-generation Lite Panel and Smart Panel, such as KTP400, KTP700, etc., which support higher resolution and color display.

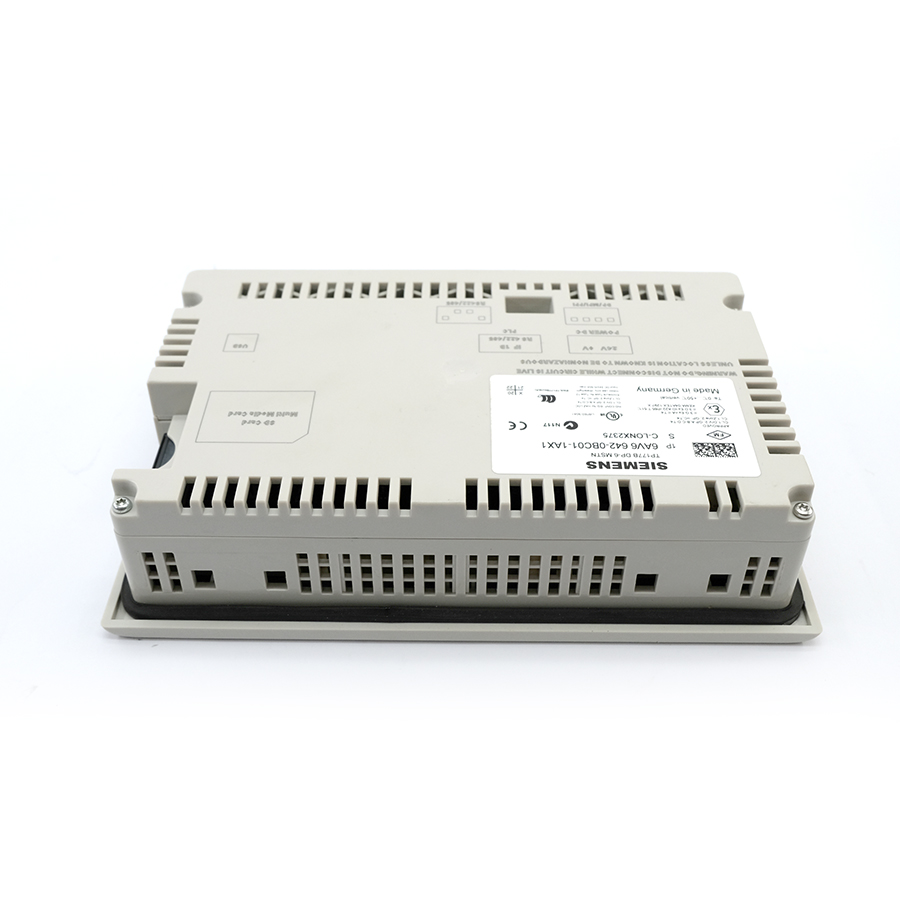

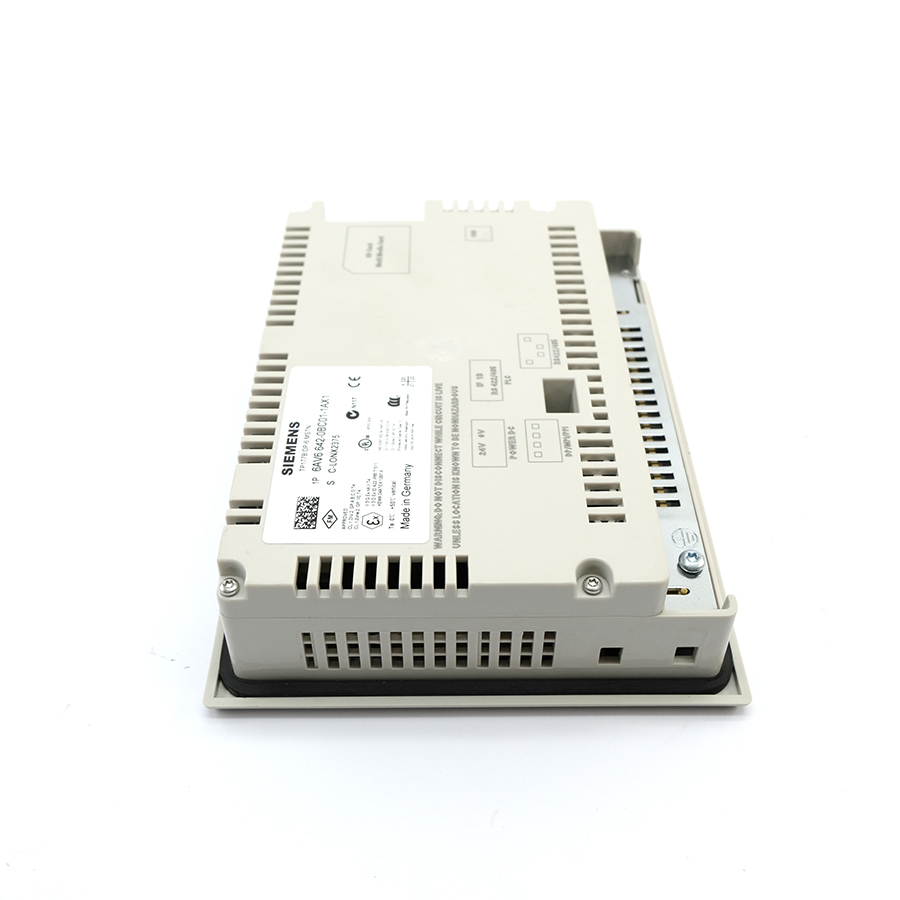

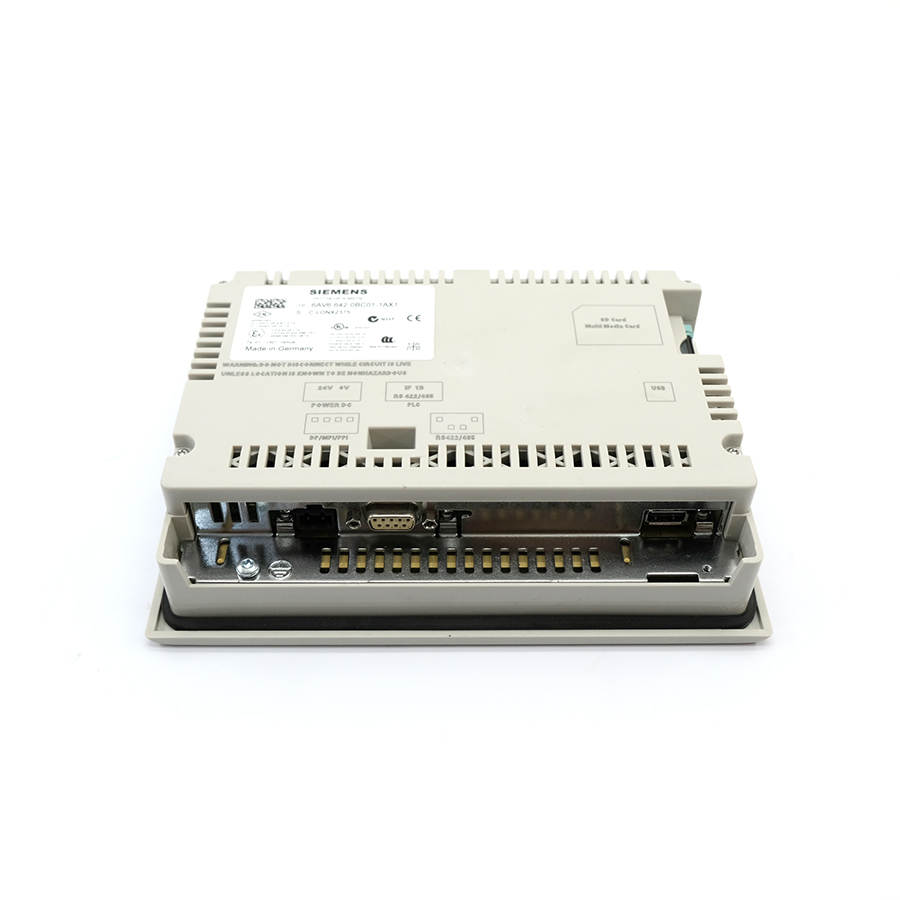

Details of Siemens 6AV6642-0BC01-1AX1
