Omron CJ1W-DA08V

Omron CJ1W-DA08V is a high-performance analog output unit, which belongs to the expansion module of CJ series PLC, which is mainly used for analog signal output in industrial automation control systems. Here's a closer look at the product:

1. Product Overview
- Brand: OMRON
- Type: Analog output unit
- Model Number: CJ1W-DA08V
- Main function: Convert the digital signal of the PLC into analog output for controlling actuators, frequency converters, servo drives and other equipment.

2. Key parameters
| Parameter | specification
|-----------------------|----------
| Output points | 8 points (individually adjustable)
| Signal range | 0-5V、1-5V、0-10V、-10V~ 10V
| Resolution | 1/4000 (switchable to 1/8000)
| Conversion speed | 1ms/point (programmable to 250μs/point)
| Accuracy | ±0.3% (at 25°C)
| Output Impedance | ≤0.5Ω (voltage output)
| Maximum output current | 2.4mA
| External Connections | Detachable terminal block (M3 screw)
| Power Consumption | 140mA maximum at 5V DCs
| Size | 31mm × 90mm × 65mm (W×H×D)
| Weight | ≤150g

3. Main Functions
- Multi-Signal Range Support: Each output point can independently select a voltage range (e.g., 0-10V or ±10V).
- High resolution: Supports 12-bit (1/4000) or 13-bit (1/8000) resolution for precision control.
- Output Hold Function: Holds the last output value when the PLC is stopped or communication is interrupted.
- Offset/Gain Adjustment: Support manual calibration to improve output accuracy.
- High-speed D/A conversion: Some models support 250μs high-speed conversion (e.g., CJ1W-DA042V).

4. Typical Applications
- Industrial automation: used to control inverters, servo motors, proportional valves and other equipment.
- Process control: such as temperature, pressure, flow and other analog adjustments.
- Energy management: Combine A/D modules for energy consumption monitoring and optimization.
- Device condition monitoring: Output analog signals to drive the HMI or recorder.

5. Installation and maintenance
- Installation environment: It is recommended to use in the range of 5.6°C~60°C to avoid strong electromagnetic interference.
- Heat dissipation requirements: Reserve ≥5cm space around the module to ensure heat dissipation.
- Maintenance suggestion: Regularly check the connection status of the terminals to prevent abnormal signals caused by poor contact.

6. Compatibility
- Compatible with CJ series PLCs and can be combined with other I/O modules such as digital input/output, communication modules.
- Supports communication protocols such as Modbus TCP/IP for easy integration into industrial Ethernet systems.

summary
The CJ1W-DA08V is a high-precision, high-reliability analog output module suitable for various industrial automation applications. Its flexible configuration, high-speed conversion, and stable performance make it an important component in PLC control systems.

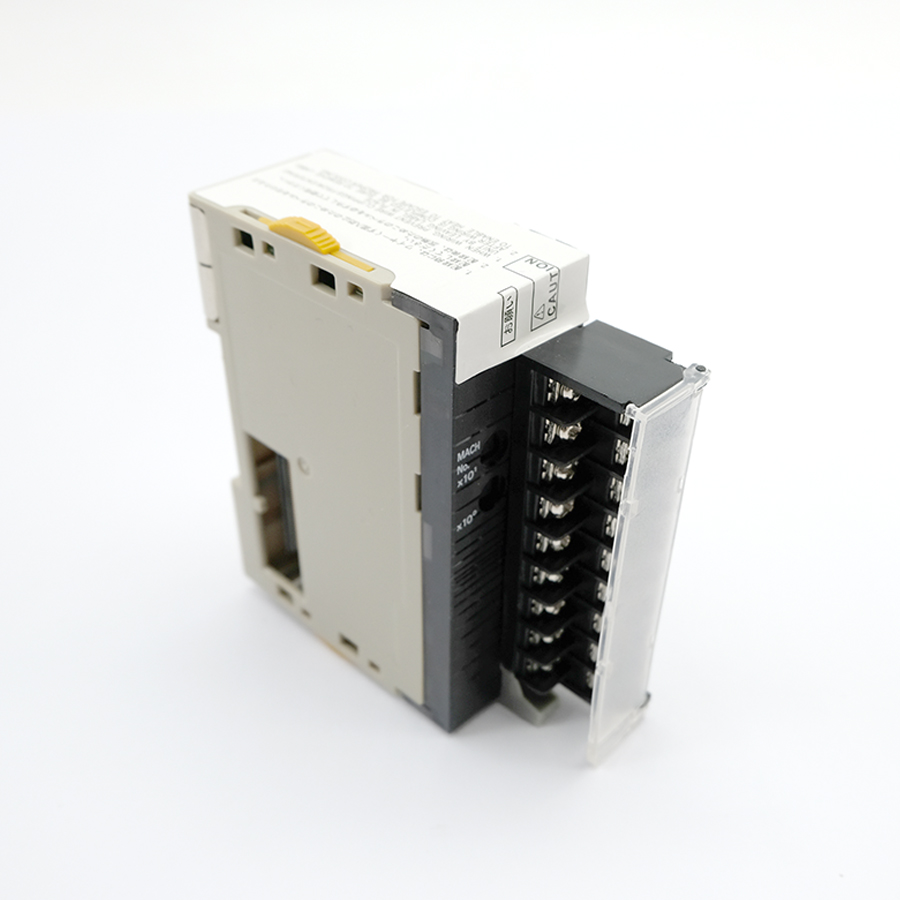

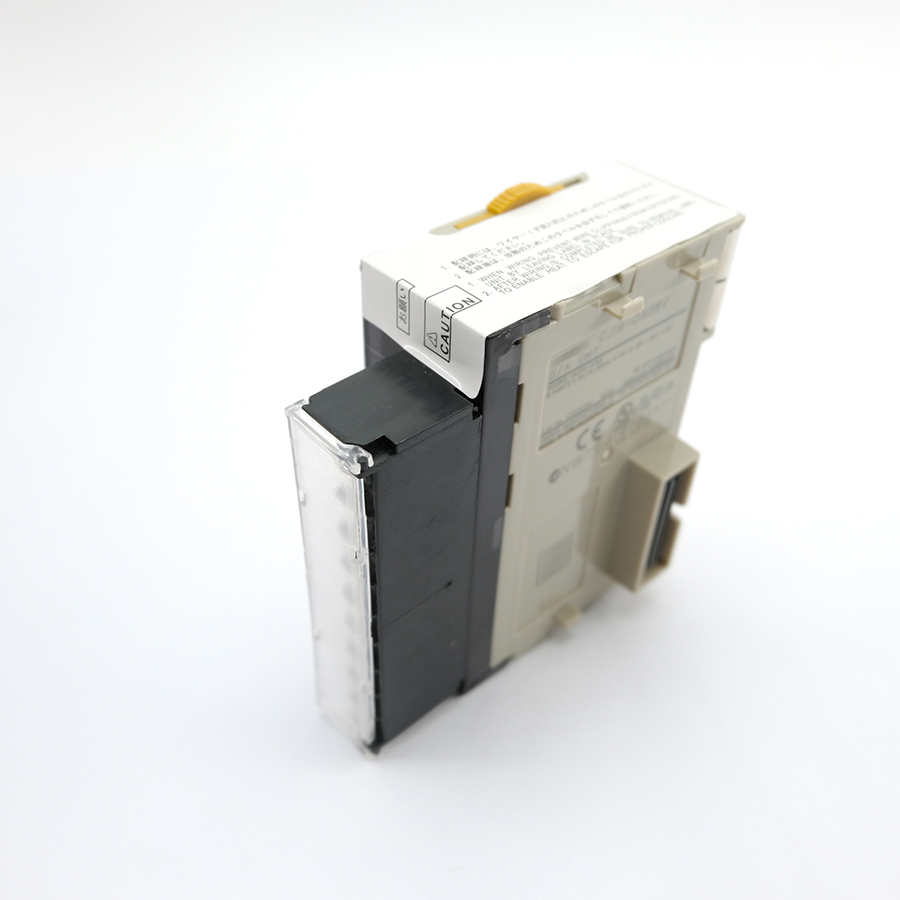

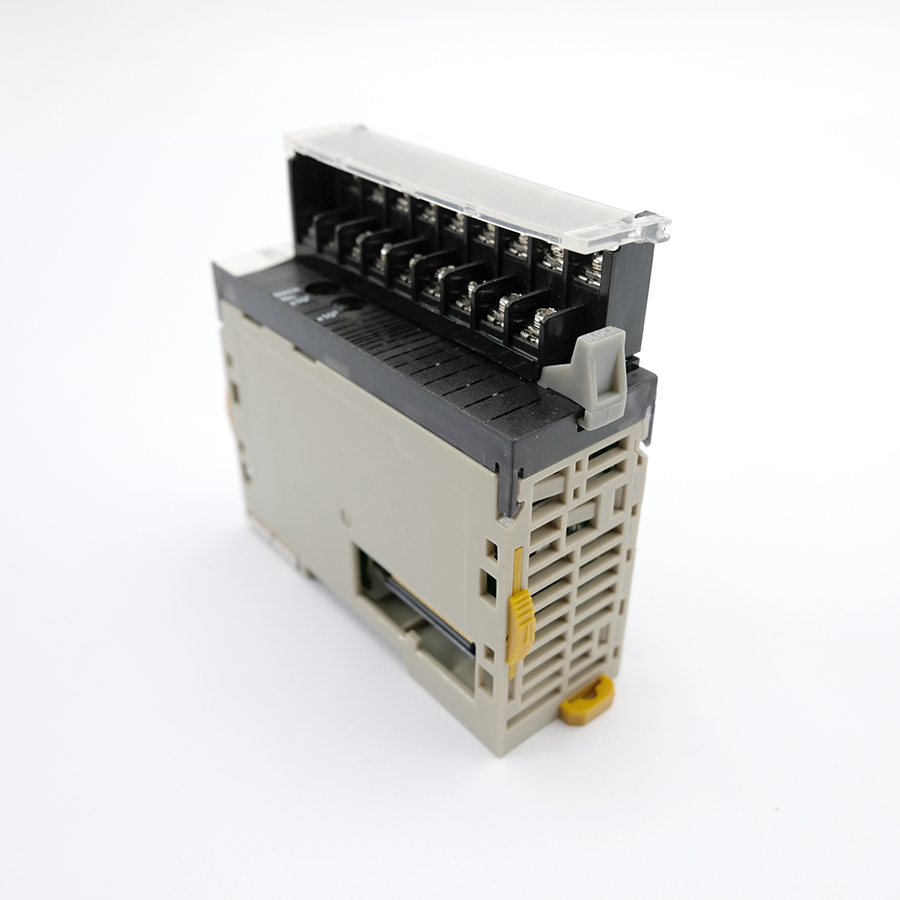

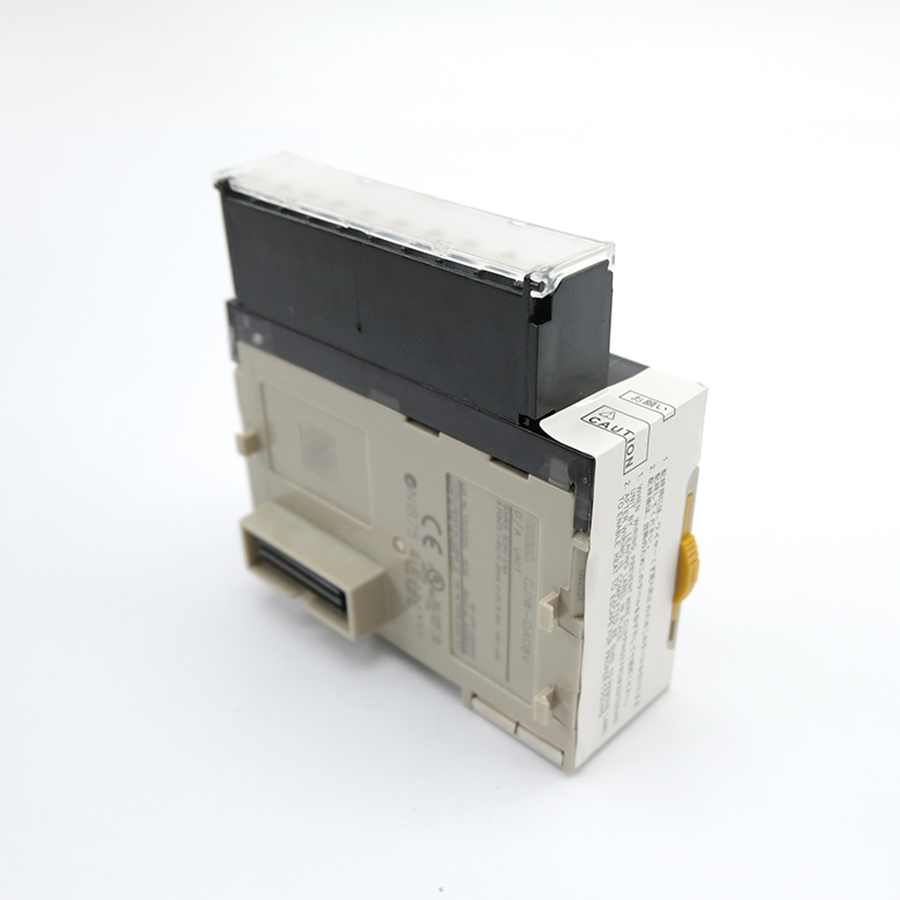

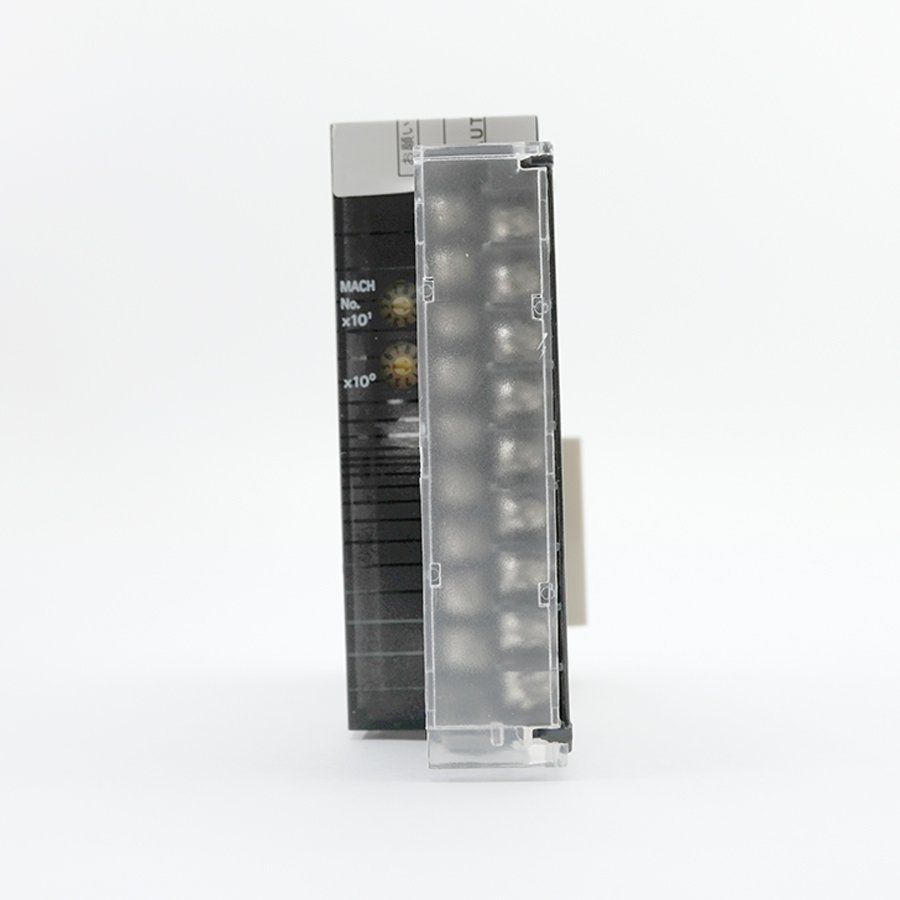

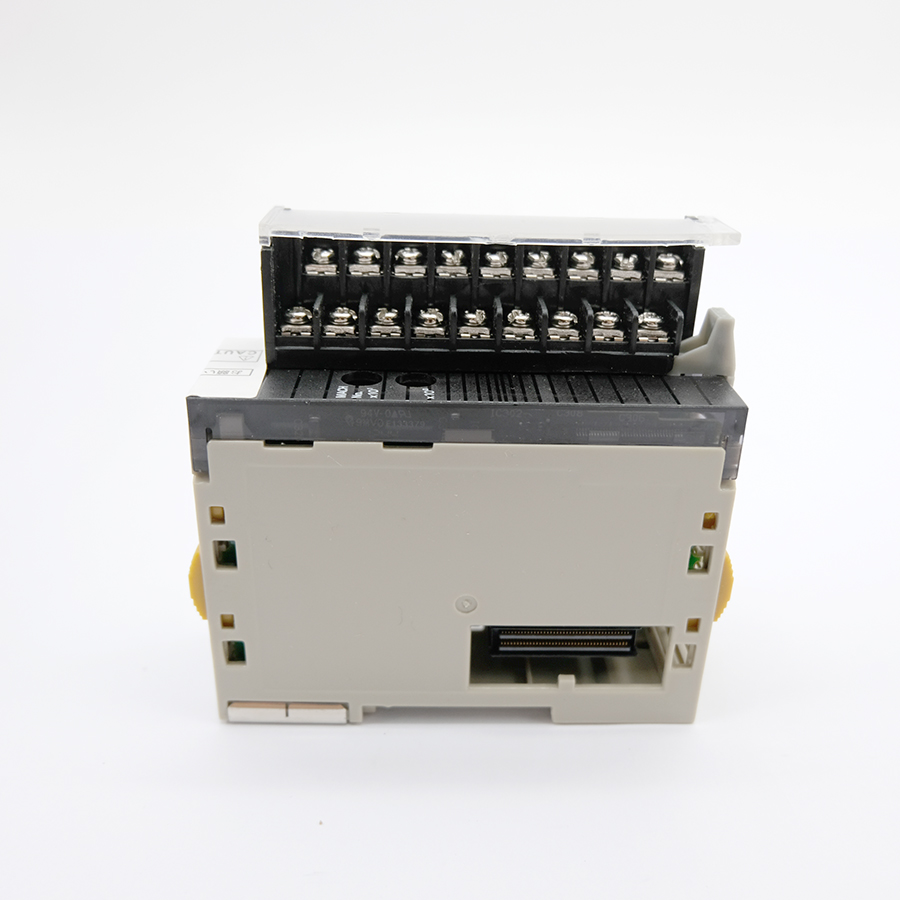

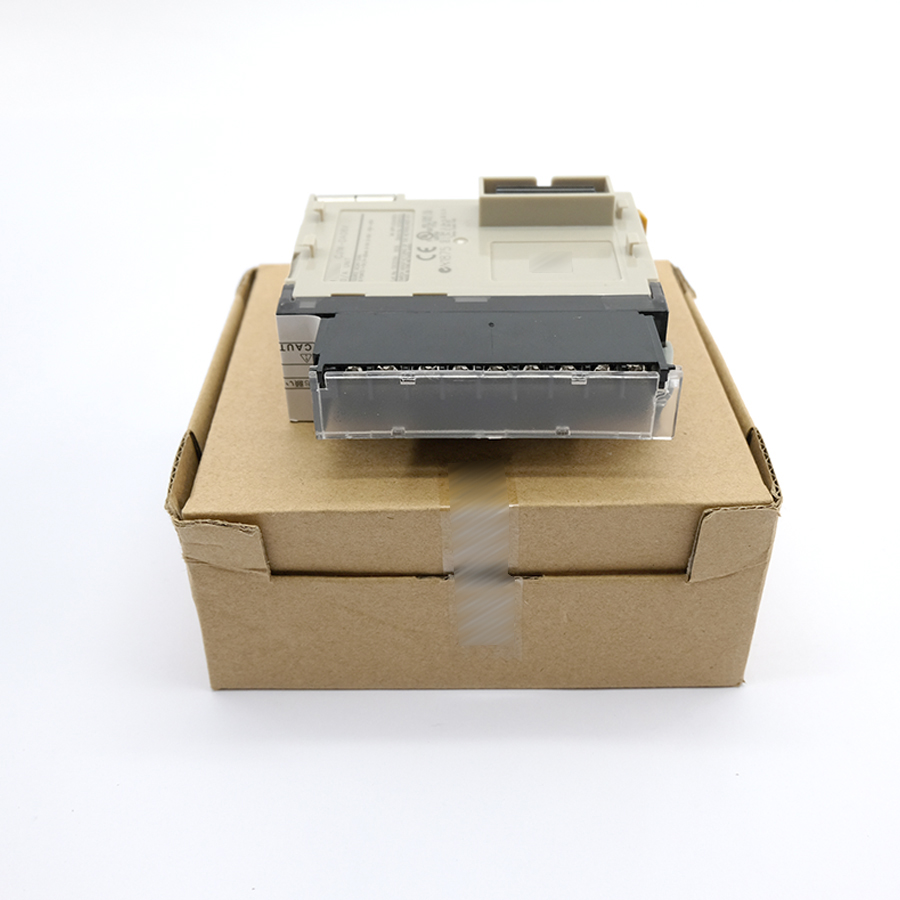

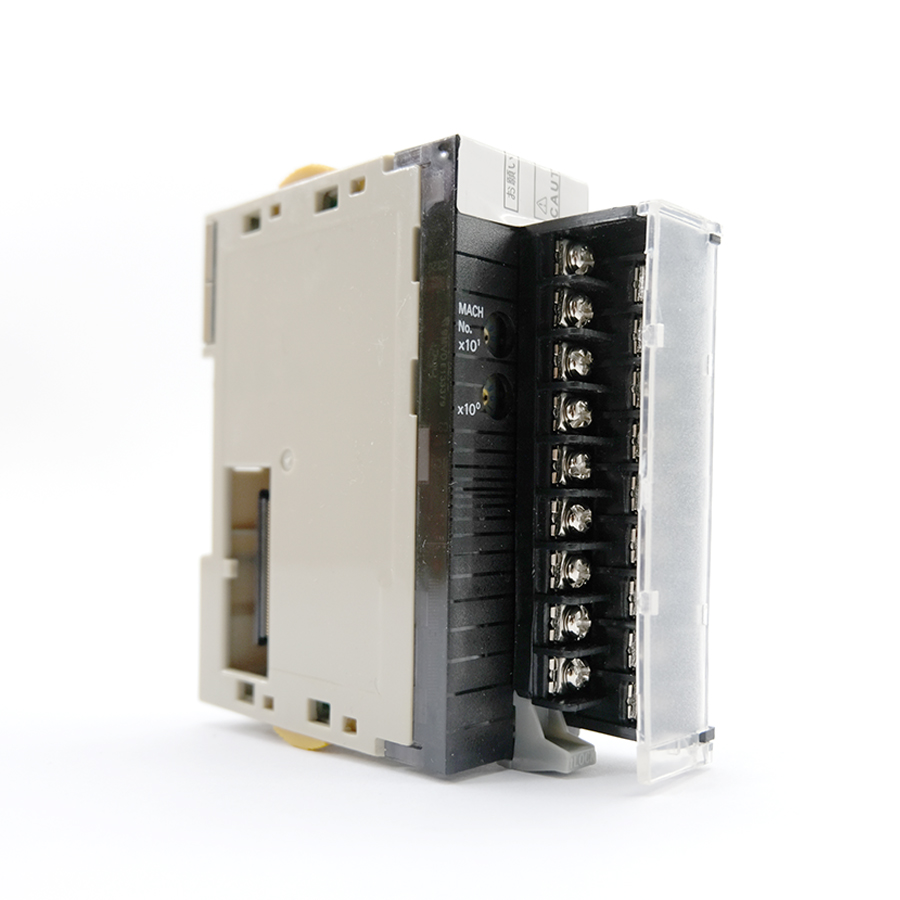

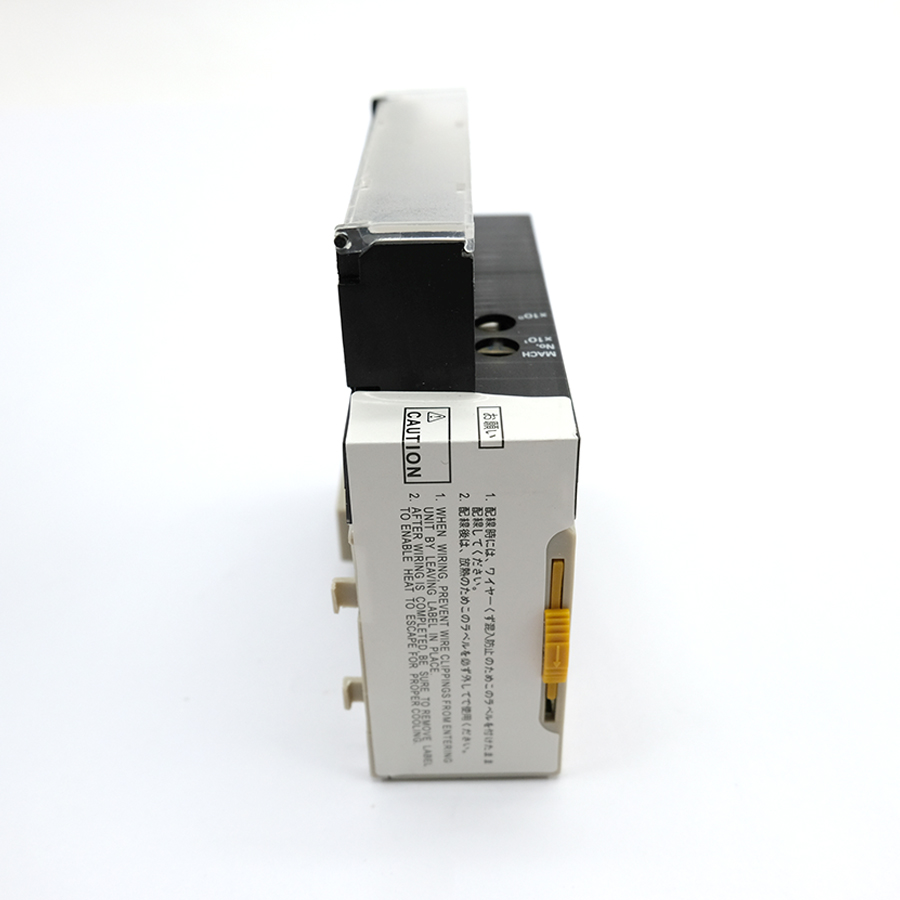

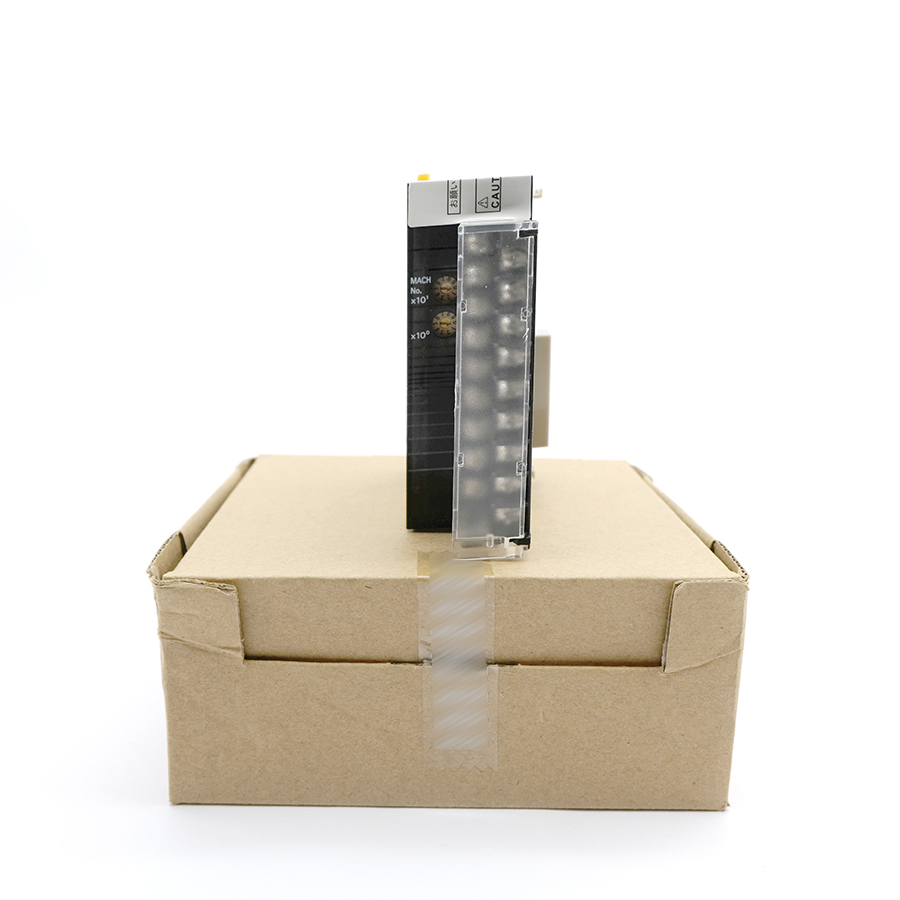

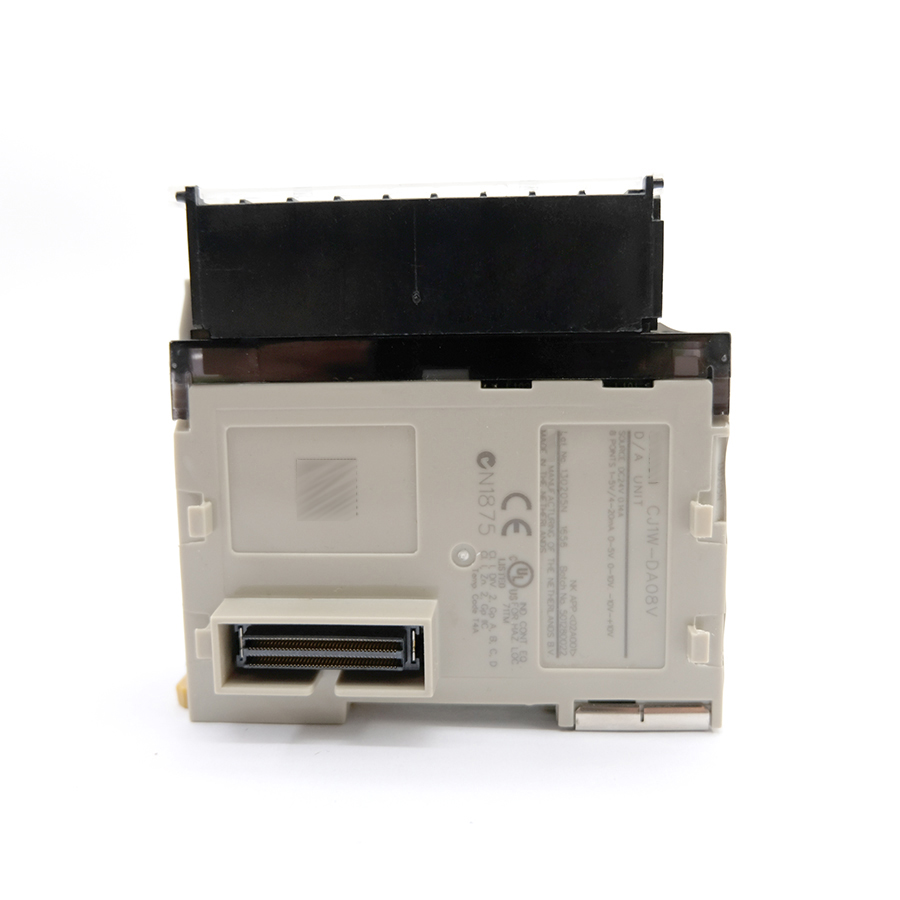

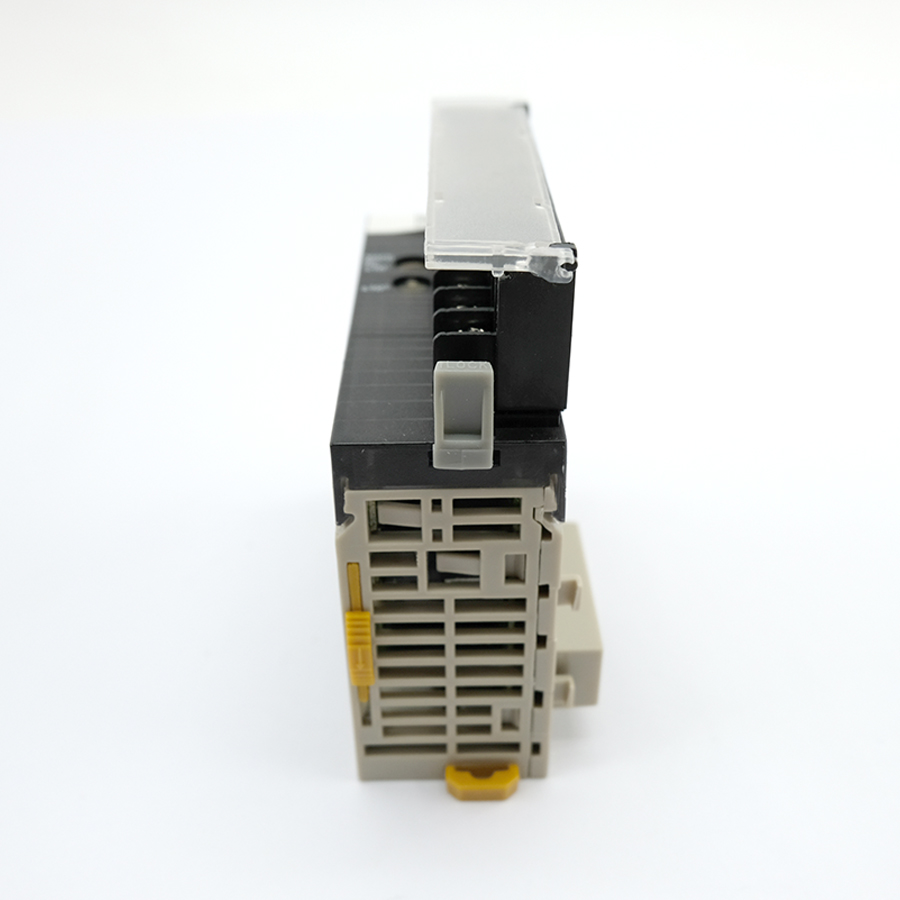

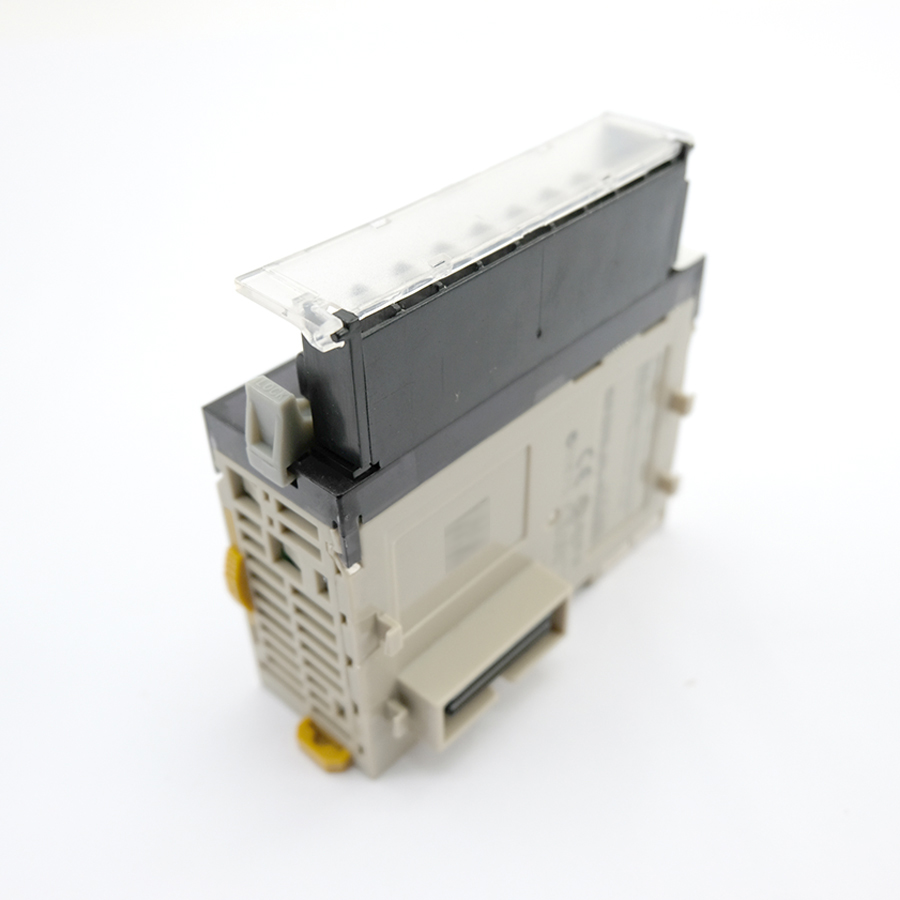

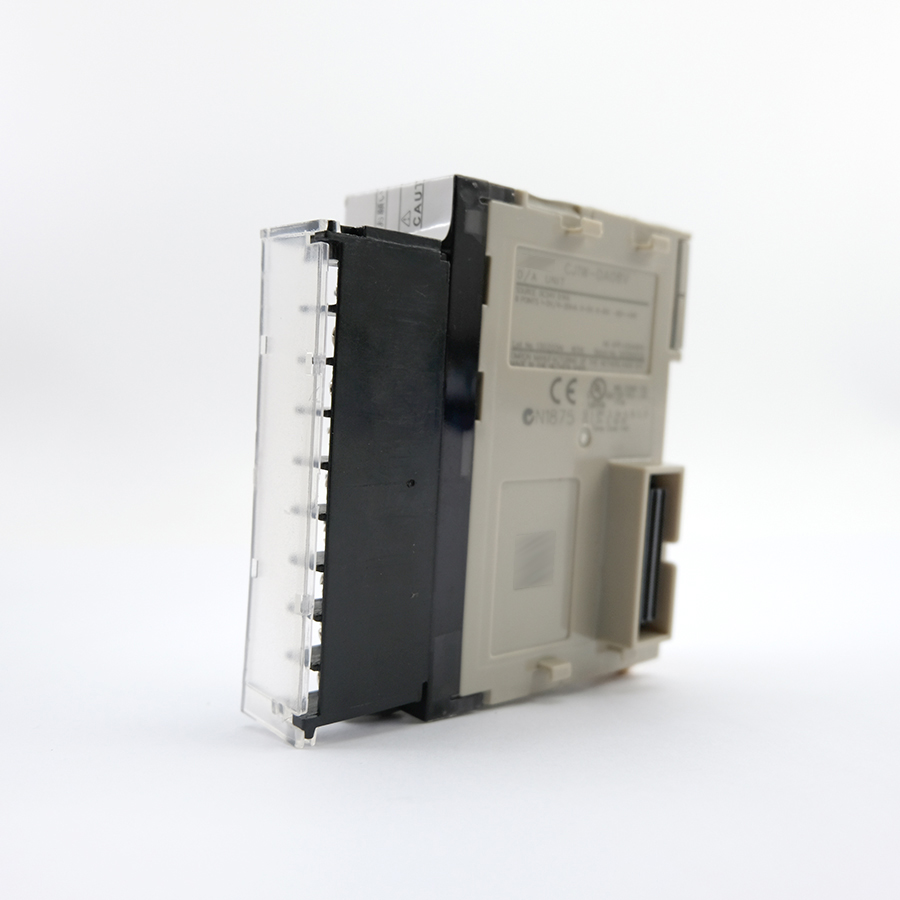

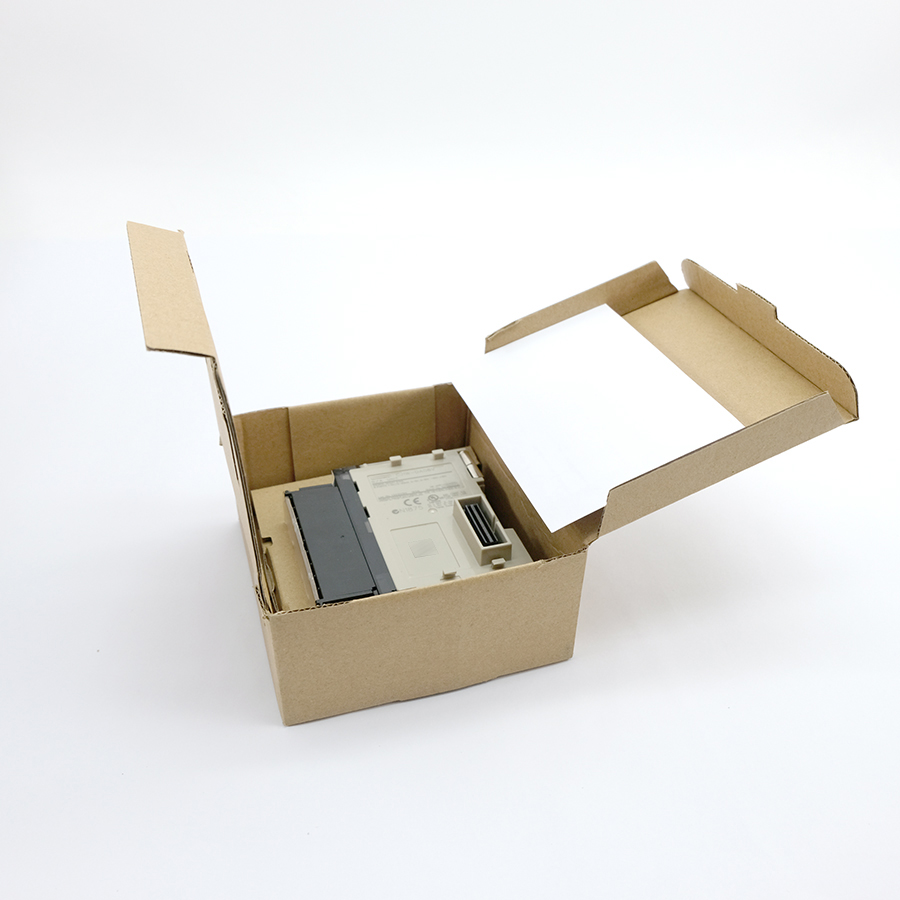

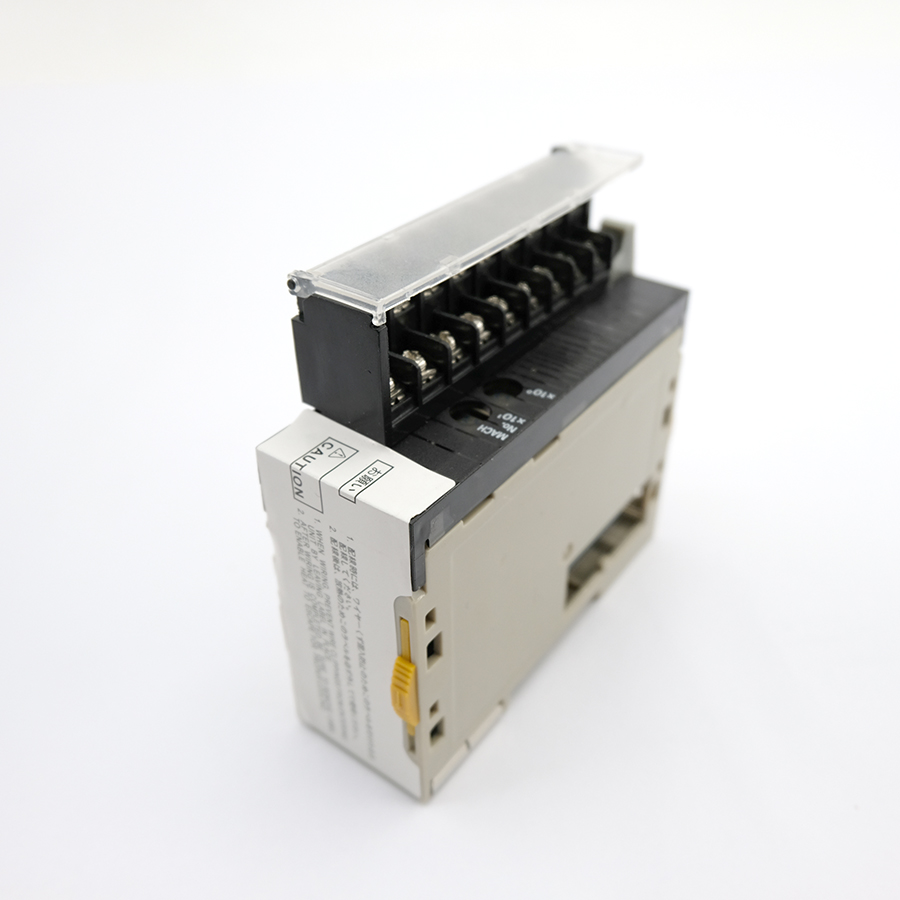

Details of Omron CJ1W-DA08V
