Mitsubishi AJ65SBTB1-32D

Mitsubishi AJ65SBTB1-32D is a CC-Link remote I/O input module, which belongs to Mitsubishi AJ65 series PLC module, which is suitable for industrial automation control system. Here are the main features and technical parameters of the product:

Product Overview
- Brand: MITSUBISHI
- Type: Input module
- Model Number: AJ65SBTB1-32D
- Applicable network: CC-Link (Mitsubishi Industrial Fieldbus)
- Installation: DIN rail mounting, support 6-direction installation (some directions are restricted).

Main technical parameters:
1. Enter the specifications
- Number of input points: 32 points
- Input Type: DC 24V (Positive/Negative Common Type, Leak/Source Input Compatible)
- Rated input voltage/current: DC24V/5mA (working range: DC19.2~26.4V).
- Response time: 0.2ms (OFF→ ON/ON→OFF).
- Input resistance: Approx. 4.7kΩ.

2. Electrical characteristics
- Insulation: Opto-decoupler isolation
- Withstand voltage: 500 V AC (1 minute, external terminal-ground room)
- Insulation resistance: ≥ 10MΩ at 500V DC.

3. Communication and system integration
- Number of occupied stations: 1 station (CC-Link network)
- Maximum number of connected units: 64 remote I/Os (up to 2048 points).
- Module power supply: DC20.4~26.4V (50mA or less, when all points are ON)

4. Mechanical and installation characteristics
- Terminal block type: 1-wire type, with finger protection design to prevent electric shock.
- Applicable DIN rail: TH35-7.5Fe / TH35-7.5A1 (according to JIS C 2812 standard).

Application scenarios
- Suitable for industrial control environments that require high-speed response, such as machine tools and automated production lines.
- It can be used in conjunction with Mitsubishi Q series and FX series PLCs to build a distributed I/O system.

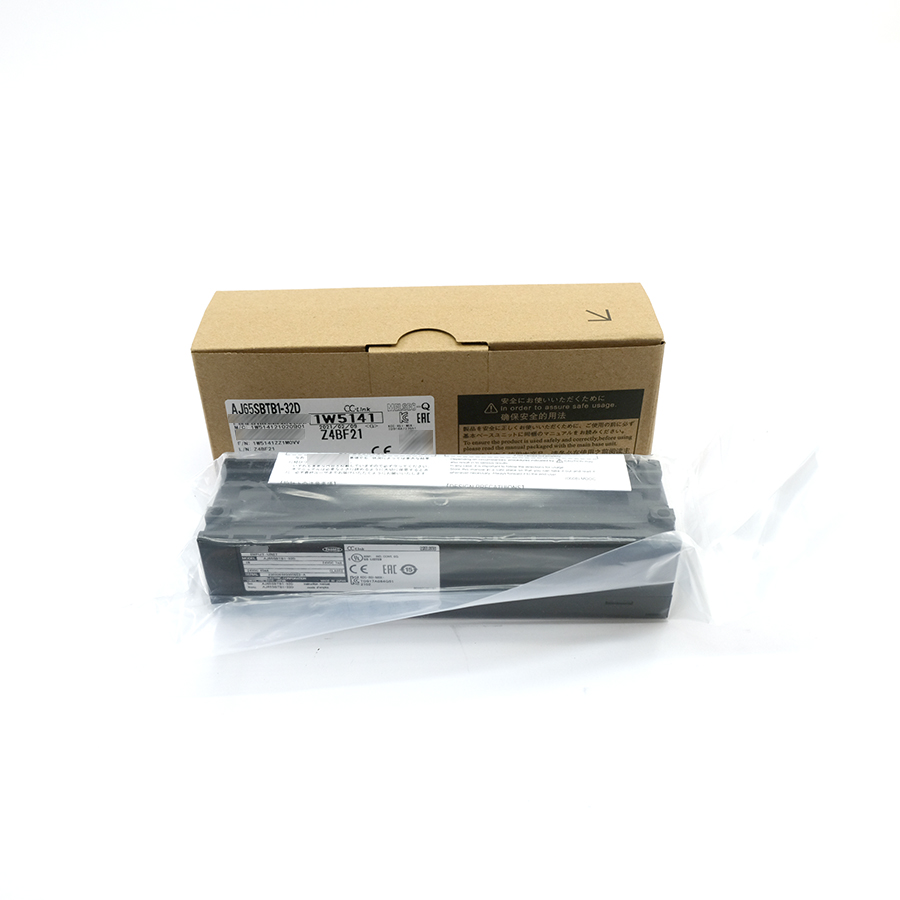

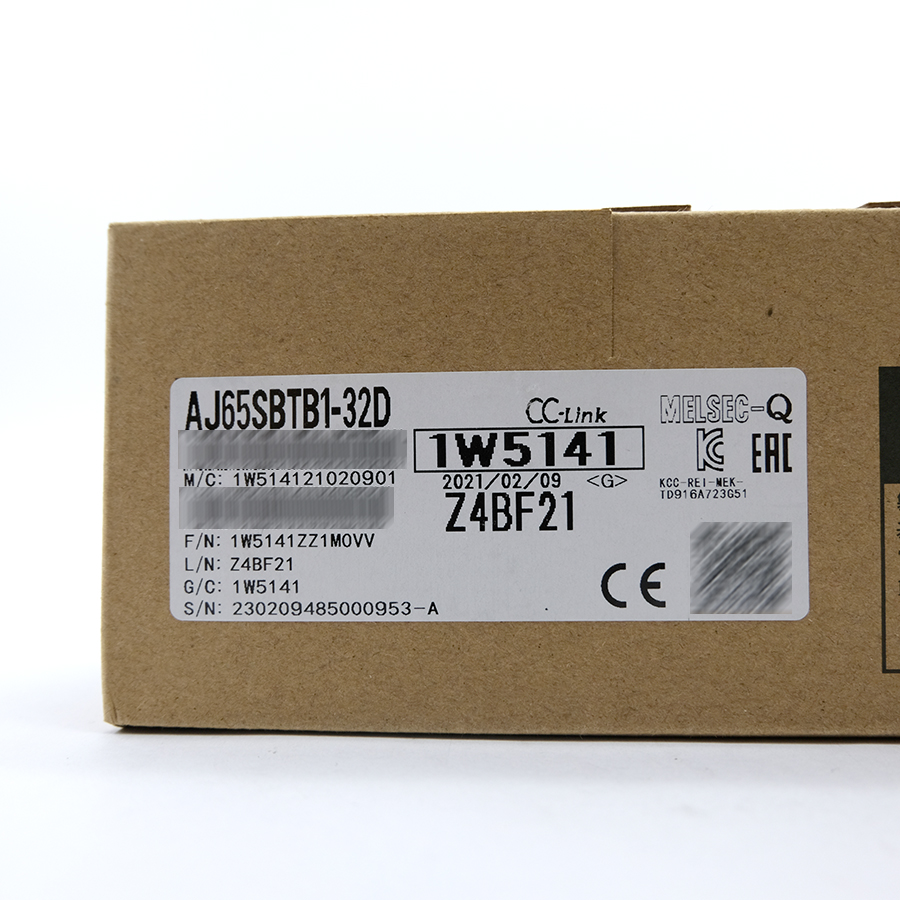

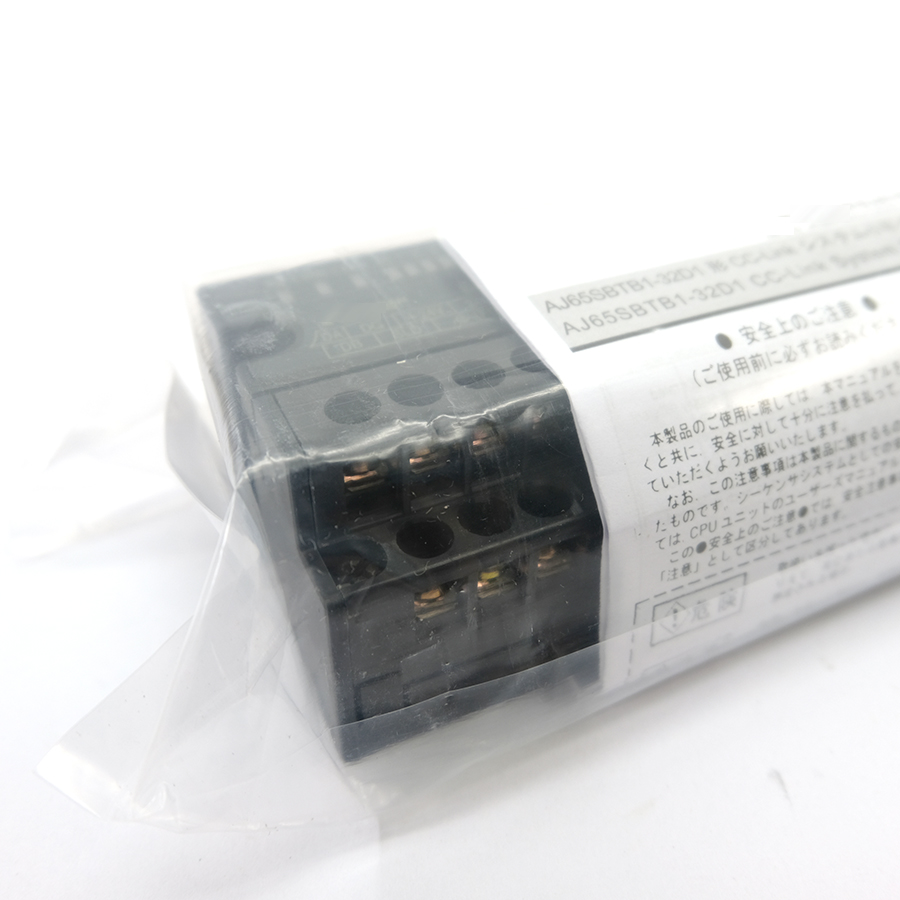

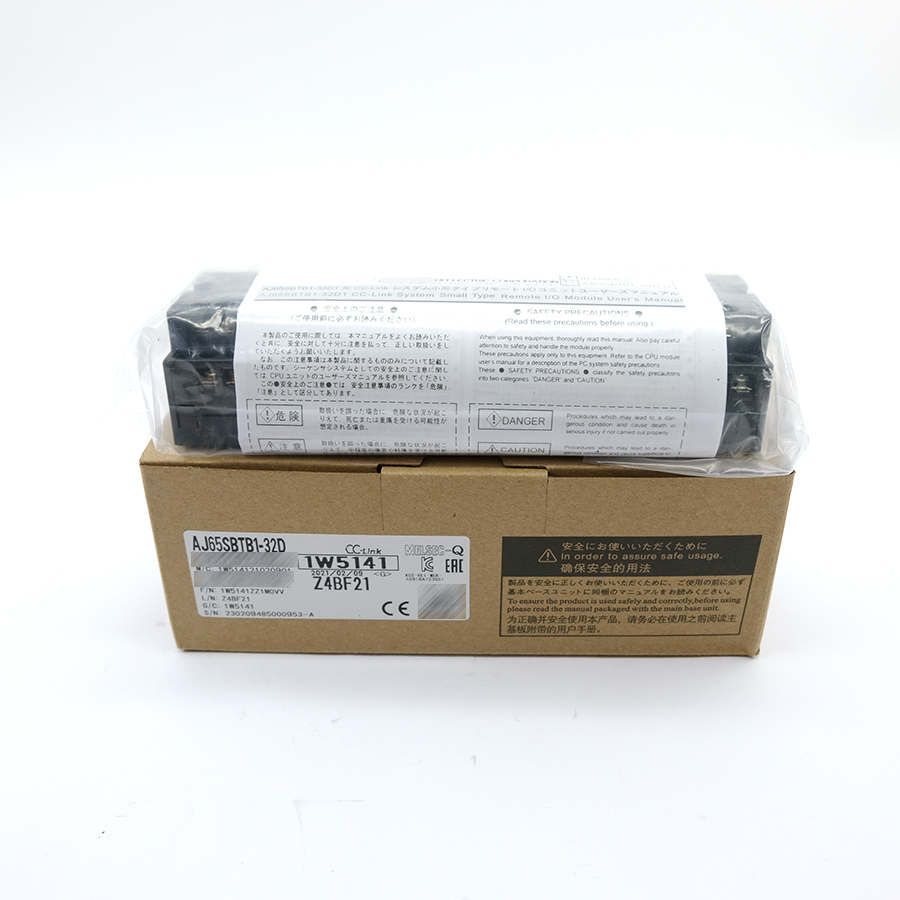

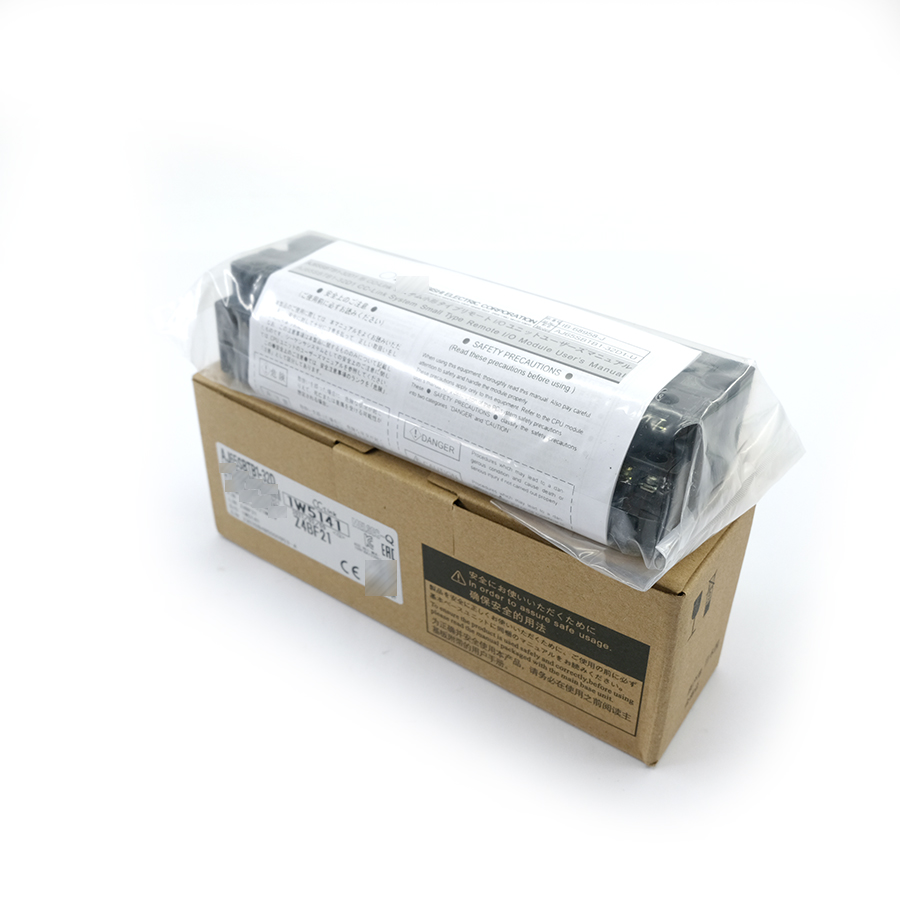

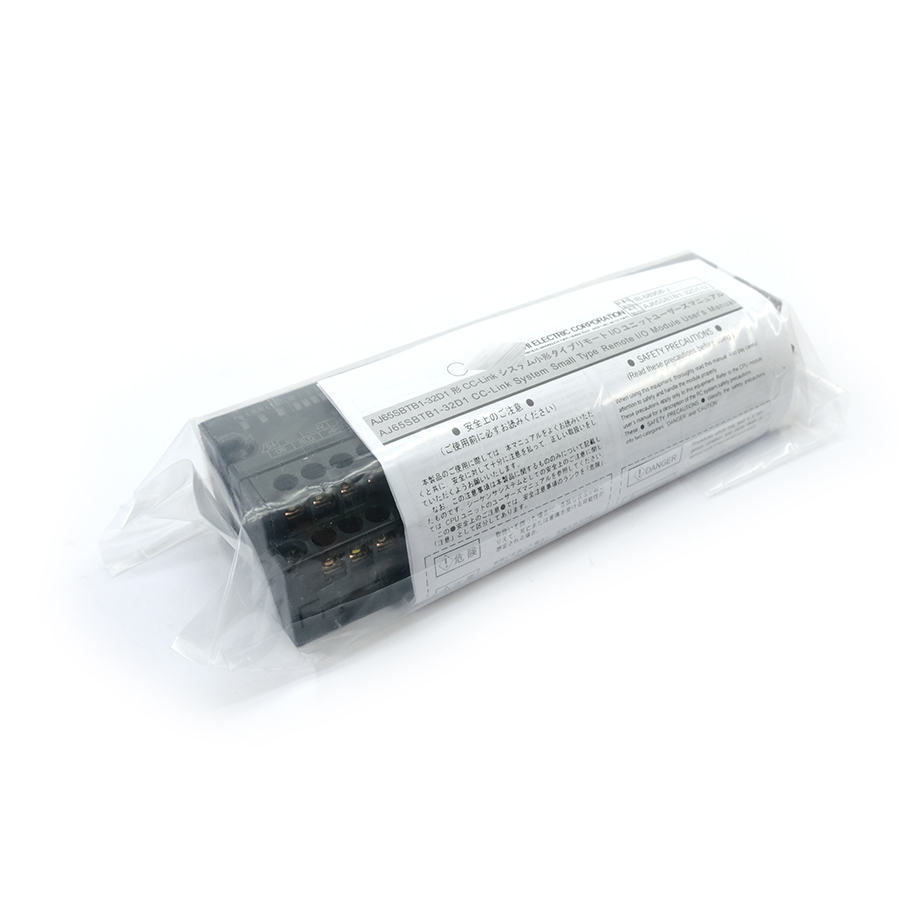

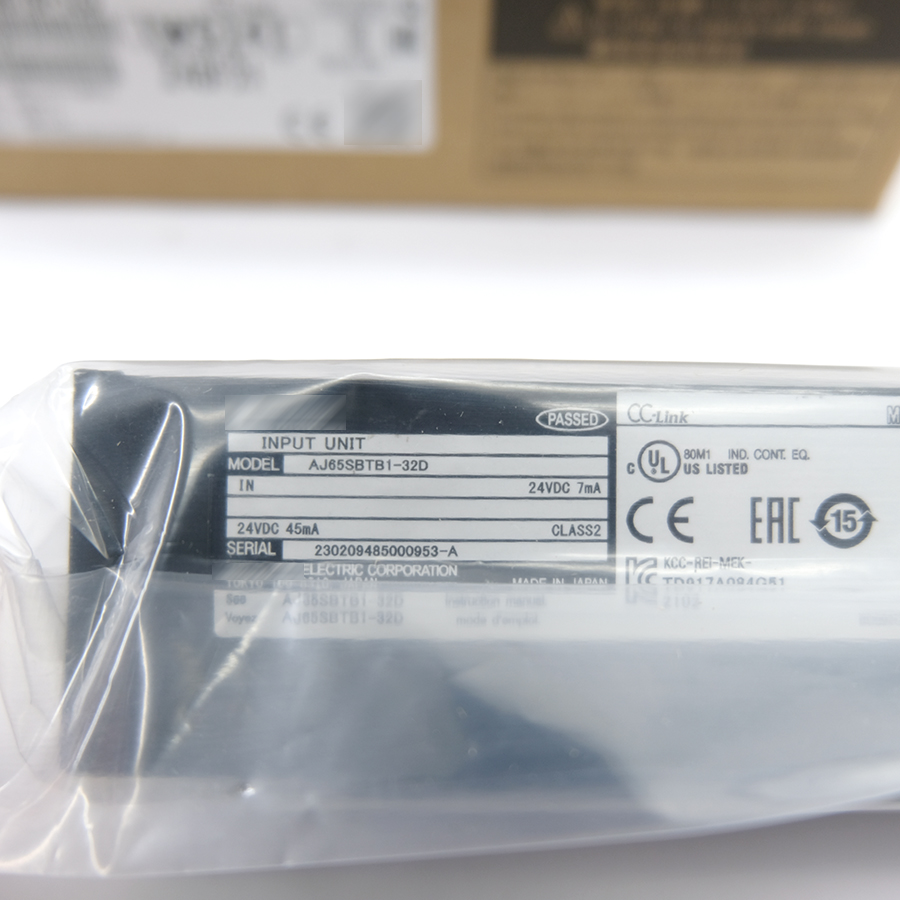

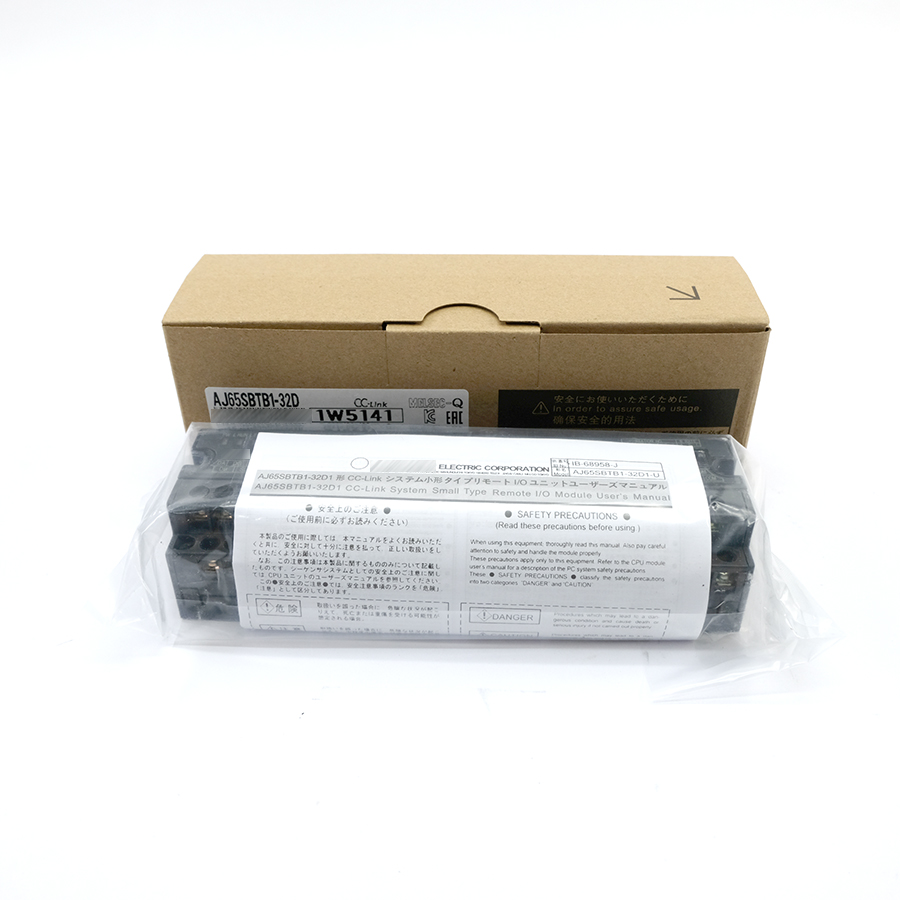

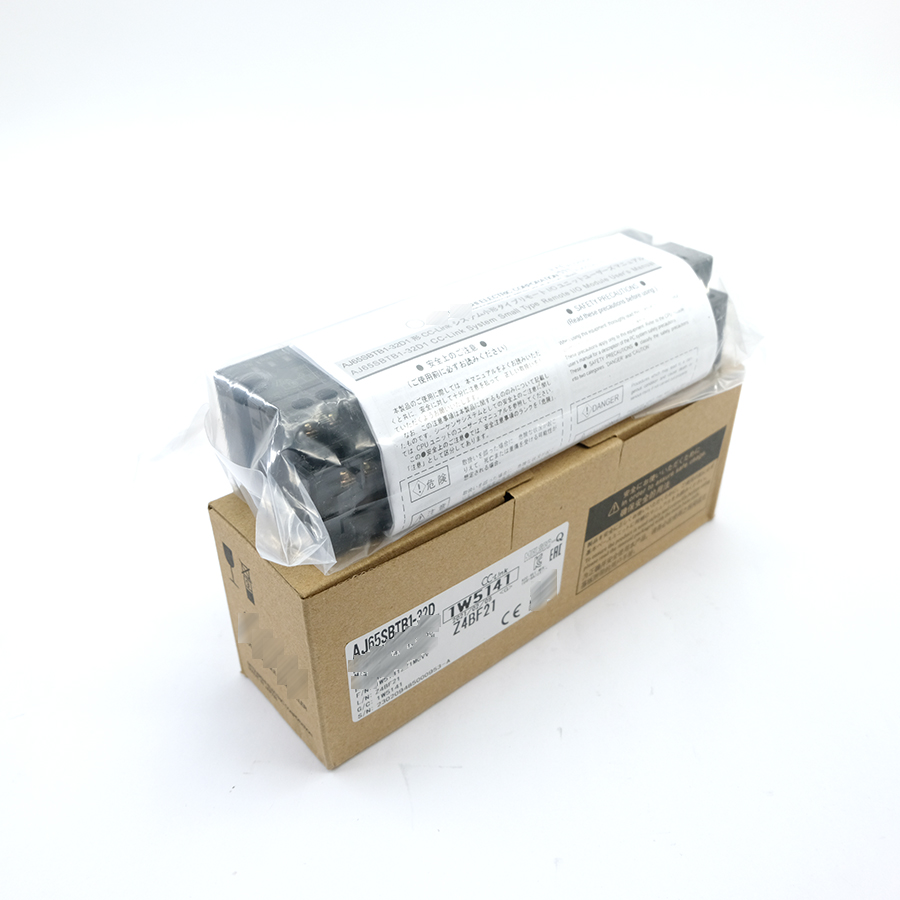

Details of Mitsubishi AJ65SBTB1-32D
